Imgreganted Glue Feeding Coating Device Automatic Roll Pneumatic Press Dip Coater Immersion Adhesive Continuous Coating Machine

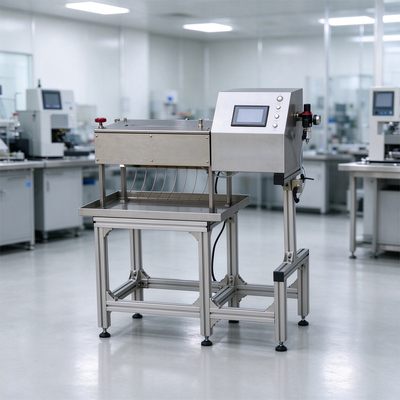

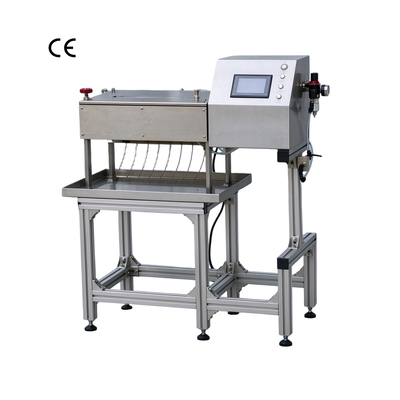

Large Image : Imgreganted Glue Feeding Coating Device Automatic Roll Pneumatic Press Dip Coater Immersion Adhesive Continuous Coating Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Imgreganted Glue Feeding Coating Device Automatic Roll Pneumatic Press Dip Coater Immersion Adhesive Continuous Coating Machine

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	±1.5%	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, OBM, ODM, Software Reengineering	Power:	/
Protection Class:	IP57	Voltage:	220 V
Warranty:	1 Year
Highlight:	Automatic Roll Pneumatic Dip Coater , Continuous Adhesive Immersion Coating Machine , Lab Test Glue Feeding Coating Device

PRODUCT HIGHLIGHTS

Pneumatic pressure adjustment, digital adjustment makes it convenient to test various pressures.
Adjustable speed, facilitating adjustment of various process parameters.
Double-sided gluing, one-step forming.
Small in size, easy to place, adjustable parameters, convenient for process adjustment.

Imgreganted Glue Feeding Coating Device Automatic Roll Pneumatic Press Dip Coater Immersion Adhesive Continuous Coating Machine

Product Introduction The impregnation machine is designed for laboratory sample preparation, used to impregnate flat materials such as paper, carbon paper, and nonwoven fabrics, as well as apply coatings on both sides. It features a slot-type coating method that allows for either quantitative or continuous cyclic application of adhesive. Compact in size, precise in coating control, and easy to operate, this equipment is an ideal coating solution for laboratories in enterprises, research institutes, and universities, particularly for sample development and process parameter studies.

Imgreganted Glue Feeding Coating Device Automatic Roll Pneumatic Press Dip Coater Immersion Adhesive Continuous Coating Machine

Technical Specifications

Glue tank capacity	300ml
Roller pressure	0.1-0.6Mpa adjustable
Pressurization mode	Pneumatic
Coating mode	Continuous coating / intermittent coating
Coating length	Adjustable setting (0-unlimited length)
Roller material	Polyurethane (PTFE non-stick roller optional)
Coating width	300mm
Glue feeding mode	Automatic
Feeding pump	Circulating automatic feeding pump
Feeding pump flow range	100-750ml/min
Heat preservation mode	Water bath heating (water bath pot provided by customer)
Glue liquid height	Automatic control at fixed height
Coating speed	0.1-10m/min (speed adjustable as required)
Roller glue cleaning method	PTFE scraper
Control mode	5-inch touch screen
Sample receiving method	Sliding table type
Waste liquid recovery method	Stainless steel recovery tray with return pipe
Safety protection	Safety cover + protection switch, safety interlock
Housing material	304 stainless steel
Overall dimension	500x400x1400mm
