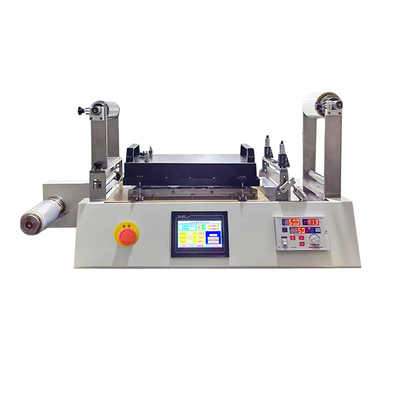

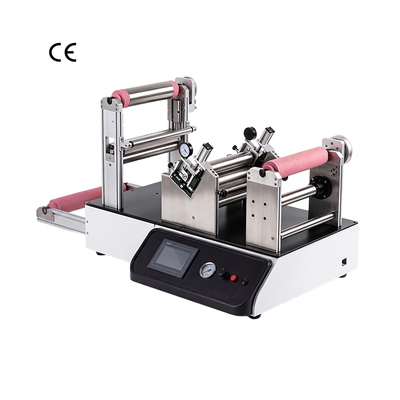

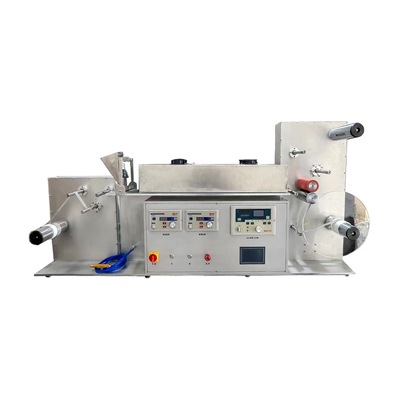

Roll-to-Roll Coating Machine Continuous Roll Coater Film Foil Substrate Coating Tester Adhesive Ink Test Machine

This industrial coating machine is designed to apply functional layers—including adhesives, coatings, and inks—onto various rolled substrates such as paper, fabric, leather, aluminum foil, and plastic film. The system performs coating application followed by heat curing and rewinding in a continuous automated process.

The machine operates on the same principle as automatic coaters used for screen printing stencil preparation. It consists of four main units: unwinding, coating, drying, and rewinding, complemented by mechanical or pneumatic systems for precise control of substrate tension, edge alignment, and coating speed.

• Modular coating head design supporting multiple coating methods
• Stepper motor with magnetic powder clutch for smooth operation
• Precise tension control and coating thickness adjustment
• Integrated heating and drying tunnel system
• Split-type structure with isolated control box
• Support for various coating methods including slot-die, transfer, doctor blade, and micro-gravure
