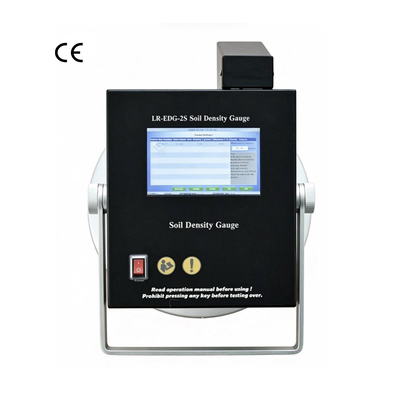

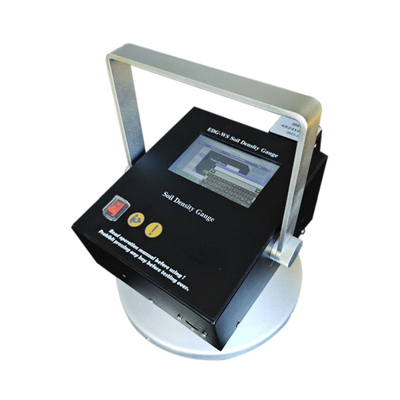

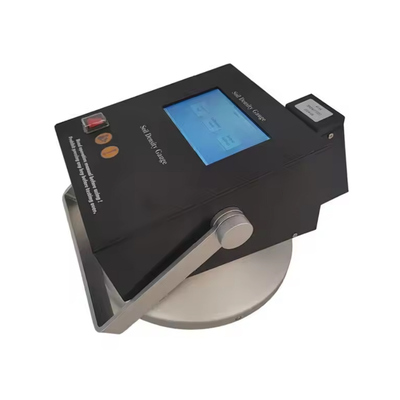

ASTM D698 ASTM D1557 Portable Non-Nuclear Soil Density Gauge Moisture Meter Soil Compaction Tester

Large Image : ASTM D698 ASTM D1557 Portable Non-Nuclear Soil Density Gauge Moisture Meter Soil Compaction Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Certification:	CE,ISO,ASTM,DPR,ROHS
Model Number:	LR-EDG-2S

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	7 work days
Supply Ability:	200

Contact Now

ASTM D698 ASTM D1557 Portable Non-Nuclear Soil Density Gauge Moisture Meter Soil Compaction Tester

Description

Highlight:

Non-Nuclear Soil Density Gauge

Portable Soil Moisture Meter

ASTM D698 ASTM D1557 Compliant Soil Compaction Tester

ASTM D698 ASTM D1557 Portable Non-Nuclear Soil Density Gauge

Portable non-radioactive soil compaction tester for subgrade earthwork, serving as an alternative to nuclear density gauge and sand cone method.

Principle of Operation

Utilizes electromagnetic EDG technology. Four metal probes are inserted into soil to measure dielectric properties of the soil medium. Calculates wet density, dry density, moisture content and compaction ratio. Soil model calibration is required before testing using sand cone method reference points. Compliant with ASTM D698 and ASTM D1557 standards.

Main Applications

Highway, municipal road, dam, building foundation, and trench backfill compaction inspection. Suitable for fine-grained soil, lime/cement stabilized soil.

Not recommended for soil with large-size rock fragments, voids, or embedded metal debris.

Key Features

No radioactive source: No radiation license, no special transport permit required. Operators do not need radiation certification.
Fast field testing with results available within 2-3 minutes
Stores up to 24 soil models and 4,200 test points
Optional GPS module for marking test locations
USB & RS232 data export to PC for report generation
Waterproof connectors (avoid heavy rain field operation)
Portable rugged controller with protective hard case for site work

Standard Delivery Package

LR-EDG-2S main controller
4 pcs steel test probes
Temperature sensor
Test template & driving hammer
12V rechargeable battery + charger
RS232 & USB communication cables
Operation software & user manual

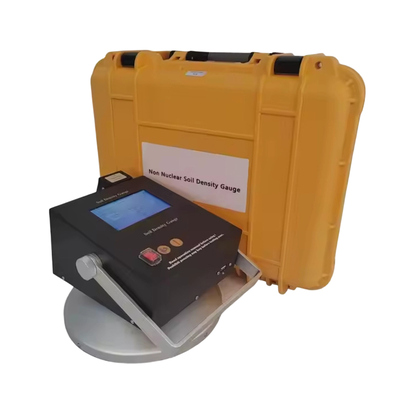

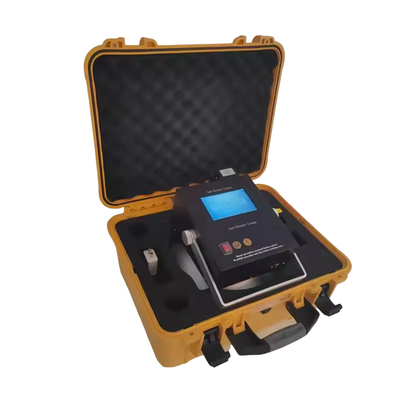

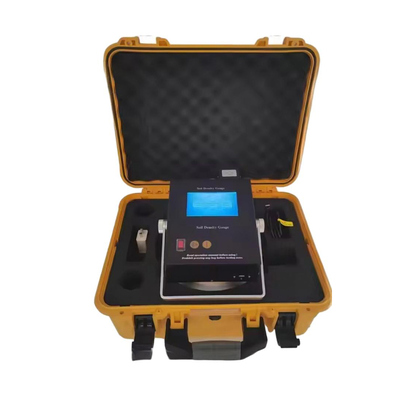

Hard waterproof carrying case
Factory calibration certificate

Technical Specifications

Item	Parameter
Model	LR-EDG-2S
Battery	10400mAh lithium-ion rechargeable battery
Electromagnetic wave frequency	40-100K, no radiation at low frequency
Dry density accuracy	Within 3% of the standard test result
Wet density accuracy	Within 3% of the standard test result
Display	5.0-inch true-color display screen
Storage	24 soil models, 4,200 test records
Measurement depth	≤ 300mm
Interaction method	Touch screen
GPS	Standard equipment
Wireless data transmission	Optional
Report export method	Install PC-end data export software and drivers
Unique features	Lossless measurement
Charging method	USB 5V charging
Continuous working time	~10 hours
Operating temperature	0 ℃ ~ 50 ℃
Operating humidity	5% ~ 90% RH
Dimension	480 * 400 * 250 mm
Weight	9.8kg
Warranty	12 months
