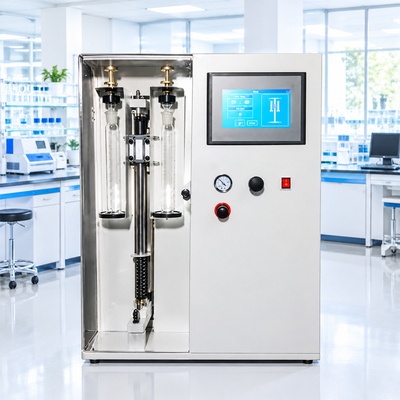

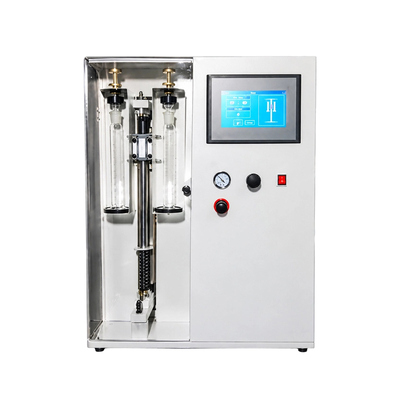

ASTM D1904 Automatic Aviation Fuel Water Reaction Tester Oils Gasoline Turbine Water-Soluble Component Analyzer

Large Image : ASTM D1904 Automatic Aviation Fuel Water Reaction Tester Oils Gasoline Turbine Water-Soluble Component Analyzer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Certification:	CE,ISO,ASTM,DPR,ROHS
Model Number:	LR-Z169

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	7 work days
Payment Terms:	D/A,L/C,D/P,T/T
Supply Ability:	200

Contact Now

ASTM D1904 Automatic Aviation Fuel Water Reaction Tester Oils Gasoline Turbine Water-Soluble Component Analyzer

Description

Highlight:

ASTM D1904 Aviation Fuel Water Reaction Tester

Microcomputer Control Water-Soluble Component Analyzer

LED Light Source Petroleum Tester

ASTM D1904 Automatic Aviation Fuel Water Reaction Tester

Product Overview

The Automatic Aviation Fuel Water Reaction Tester complies with GB/T 1793 and ASTM D1904 test methods. This precision instrument is designed to determine water-soluble components in aviation gasoline and aviation turbine fuels, and analyze their effects on volume changes and oil-water interfaces.

Key Features

Pneumatic drive system enables high-speed vertical reciprocating motion
Microcomputer control ensures precise regulation of test duration and stroke with accurate cycle counting
Multiple testing modes with flexible parameter adjustment for stroke and duration
Automatic data storage with RS-232 serial port connectivity for data printing and uploading
Equipped with LED light source for enhanced visibility

Technical Specifications

Parameter	Specification
Power Supply	AC 220V ±10%, 50Hz
Power Consumption	40W
Communication Port	RS-232 serial port
Printer	Thermal micro-printer
Light Source	LED light
Stroke Adjustment	120-250 mm (adjustable in 5 mm increments)
Speed Adjustment	2-4 cycles/s
Timing Duration	115-125 s
Settling Time	5 min
Environmental Requirements	Temperature 5-40°C; Humidity ≤85%
Dimensions & Weight	480 * 430 * 620 (mm); 42 kg
