Tree-ring Analyzer Dendrochronology Test System Wood Cross-section Ring Image Tester Plant Growth Testing Machine

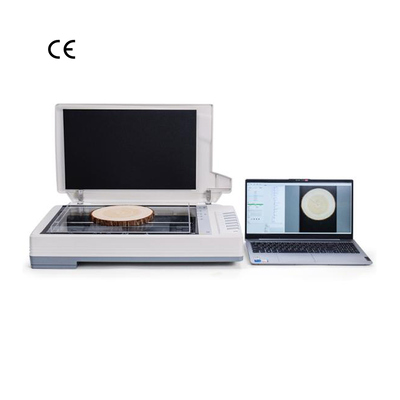

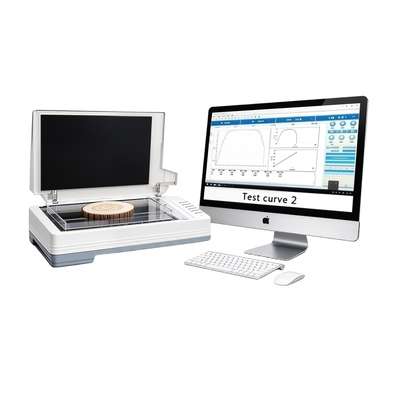

Large Image : Tree-ring Analyzer Dendrochronology Test System Wood Cross-section Ring Image Tester Plant Growth Testing Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Certification:	CE,ISO,ASTM,DPR,ROHS
Model Number:	LR-Z154

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	7 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	200

Contact Now

Tree-ring Analyzer Dendrochronology Test System Wood Cross-section Ring Image Tester Plant Growth Testing Machine

Description

Highlight:

High-Precision Tree-ring Analyzer

Intelligent Processing Dendrochronology Test System

Flexibility Wood Cross-section Ring Image Tester

Tree-ring Analyzer Dendrochronology Test System

Wood Cross-section Ring Image Tester Plant Growth Testing Machine

Product Overview

The Tree-Ring Image Analysis System is a professional tool designed for tree-ring research, enabling the analysis of tree-ring patterns in disc-shaped wood cross-sections or cylindrical increment core samples. Integrating functions such as image acquisition, analysis and processing, and statistical analysis, the system provides accurate data support for fields including forestry and ecological research.

Key Features

Large wood samples can be imaged in multiple sections separately
Specialized core holder for positioning cylindrical samples
Methods combining manual settings and automatic measurement
Manual assistance for correcting image recognition and filling in missing pixels
Standard plant growth analysis (mean stem radius, circumference, total cross-sectional area, etc.)
Measurement of cross-sectional area, circumference, tree age, etc.

Application Areas

Climate Change Research

Analyzing historical climate change via tree-ring width

Forest Ecosystem Monitoring

Assessing forest health and growth dynamics

Paleo-ecological Reconstruction

Reconstructing historical ecological environments using dendrochronological methods

Forestry Production Management

Optimizing growth prediction and resource assessment

Wood Science Research

Analyzing wood structure and material properties

System Components

Image Capture System: Standard tree ring sample scanning equipment, Growth cone locator, etc.

Specifications:

Size: A3
Scanning Area: 31*44cm
Maximum Resolution: 1600*1600dpi (Standard), 1800dpiX3600dpi (Optional)
Minimum Recognition Accuracy: 0.016mm (Standard), 0.011mm (Optional)

Precise Measurement Functions:

Supports 1GB ultra-high precision scanned images
Can analyze extremely fine growth rings below 0.2mm
XY bidirectional calibration
Mouse-based precise measurement

System Advantages

High-Precision Measurement

0.011mm minimum resolution, supports ultra-high precision image processing

Intelligent Processing

Automatic growth ring recognition, intelligent boundary determination, automatic data statistics

Flexibility

Multiple measurement methods, supports manual calibration, data traceability

Practicality

Batch processing capability, multi-format data export, user-friendly interface

Technical Capabilities

Image Acquisition and Processing	Capabilities
Multi-device compatibility	Supports connection to various professional scanner models
Batch processing	Efficient batch scanning and analysis of multiple samples
Image enhancement	Professional editing tools to optimize tree-ring clarity
Color channel analysis	Selectable color channels for targeted analysis
Multi-format support	Compatible with TIFF, BMP, PNG, JPEG, and other image formats

Tree-Ring Measurement and Analysis	Capabilities
Customizable measurement paths	Precise measurement along straight lines at any angle
Path extension	Adding new measurement paths based on existing starting points
Intelligent recognition	Automatic tree-ring detection and marking
Earlywood/Latewood analysis	Precise differentiation and measurement of earlywood and latewood widths
Complex sample handling	Supports tree-ring measurement for complex-shaped samples with multiple segments
Path angle adjustment	Measurement paths can be dynamically adjusted to follow tree-ring orientation
Fine tree-ring analysis	Precise identification of extremely narrow rings (under 0.2 mm)

Data Processing and Output	Capabilities
Morphometry	Automatic calculation of cross-sectional circumference and area
Total cross-section area calculation	Precise measurement of the entire cross-section area
Batch data processing	Simultaneous analysis of data from multiple samples
Parameter customization	Flexible analysis settings to meet diverse research needs
Visualization	Automatic generation of various data charts and graphs
Report Generation	One-click generation of professional tree ring data analysis reports
Output	Supports printing high-quality images and analysis results after processing
Export in Multiple Formats	Analysis results can be exported to Excel, JSON, CSV, and other formats
Multilingual Switching	Supports one-click switching between Chinese and English

System Tools and Auxiliary Functions	Capabilities
High-Precision Image Processing	Supports analysis of ultra-high precision scanned images up to 1GB
Precise Calibration	Automatic calibration function with separate calibration and correction in the X and Y axes
Precise Measurement	Precise distance measurement via mouse dragging
Image Zoom	Multi-level zoom and local area observation functions
