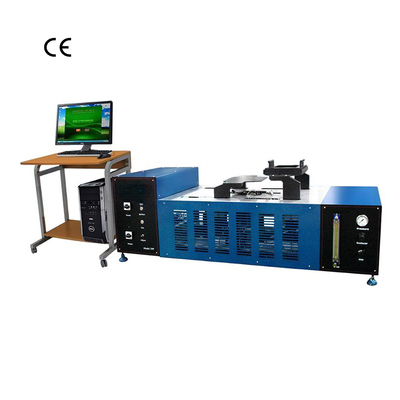

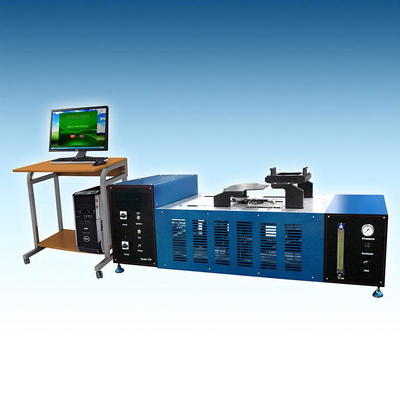

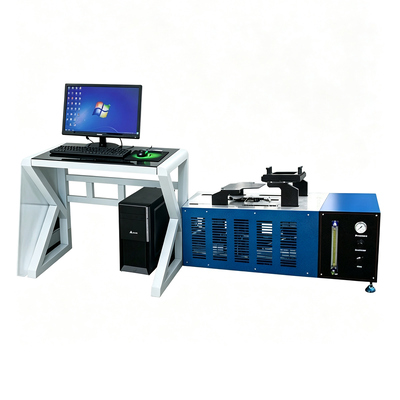

ASTM F2703 ISO 17492 TPP Thermal Protection Performance Tester ASTM D4108 Clothing Shoes Fire Protection Test Machine

The TPP Thermal Protection Performance Tester is designed to evaluate the thermal insulation properties of flame-retardant protective clothing fabrics when exposed to both radiant and convective heat sources. This instrument tests the thermal protection performance of various safety equipment including protective clothing, safety shoes, gloves, and helmet outer surfaces.

Complies with multiple international standards including NFPA 1971, ASTM D4018, GB 8965.1-2009, ISO 17492, and others.

Security protection industry

• GB Chinese National Standard: GB 8965.1: 2020
• NFPA American Fire Protection Association: NFPA 1971, NFPA 2112, NFPA 1977
• ASTM American Society for Testing and Materials: ASTM F2703, ASTM D4108
• ISO International Organization for Standardization: ISO 17492: 2003

• Complete test instrument assembly including sample holder, bracket, heat source, protective cover, sensor assembly, recorder, and gasket
• Removable corundum protective plate with 1800°C temperature resistance to block flames and reduce test errors
• Two Meker burners at 45° angle combined with 9 quartz tubes for standard convection heat source
• Meker burner with 38mm diameter, 5/16 inch inner hole diameter, providing 800-1200 BUT heat output
• Nine T150 quartz infrared tube arrays providing thermal radiation flux of 13-40 kW/㎡ ± 4 kW/㎡
• Adjustable gas supply to Meker burner for total heat flux setting of 83kW/㎡± 2 kW/㎡
• Water-cooled calibrated heat flow meter with 0-100kW/㎡ working range and 150% maximum use range
• Heat flow meter with response time less than 200ms, emissivity greater than 0.95, and output signal greater than 5mv
• Copper plate calorimeter device for detecting convective heat, radiant heat, and sample back temperature
• Rotameter for combustion gas flow adjustment with ±2% accuracy and measuring range greater than 3L/min
• Pointer type pressure gauge with 0-15psi pressure reducing valve range
• Quarter-turn plug for manual flammable gas cutoff
• Temperature acquisition system with 0.1°C resolution and ±0.75°C accuracy
• Automated data acquisition system with data collection speed of times/0.05 seconds and cold-end compensation
• Complete system including computer, printer, standard test software, and test curves
