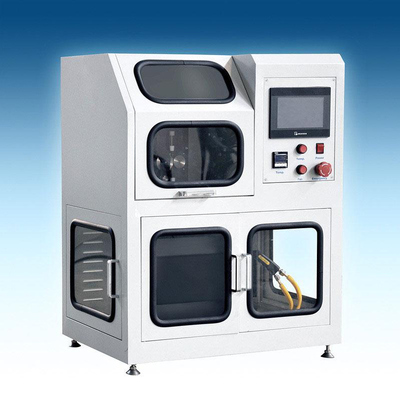

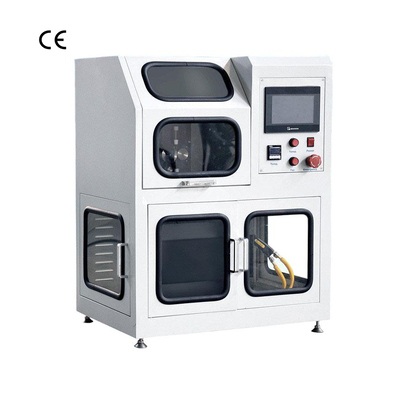

EN 348 ISO 9150 Molten Metal Splash Impact Tester Protective Garment Splash Resistance Test Machine Fabric Temperature Analyzer

Large Image : EN 348 ISO 9150 Molten Metal Splash Impact Tester Protective Garment Splash Resistance Test Machine Fabric Temperature Analyzer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Certification:	CE,ISO,ASTM,DPR,ROHS
Model Number:	LR-Z135

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	7 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	200

Contact Now

EN 348 ISO 9150 Molten Metal Splash Impact Tester Protective Garment Splash Resistance Test Machine Fabric Temperature Analyzer

Description

Highlight:

EN 348 ISO 9150 Compliance Molten Metal Splash Impact Tester

Oxy-Acetylene Torch Protective Garment Splash Resistance Test Machine

Temperature Sensor Assembly Fabric Temperature Analyzer

EN 348 ISO 9150 Molten Metal Splash Impact Tester

EN 348 ISO 9150 Molten Metal Splash Impact Tester Protective Garment Splash Resistance Test Machine Fabric Temperature Analyzer

Product Overview

The Molten Metal Splash Impact Tester is developed in accordance with testing standards EN 348 and ISO 9150. It also meets the requirements of Chinese standards GB 8965.2-2009 (Protective clothing for welders) and GB/T 17599-1998 (Determination of resistance to molten metal splash). The testing principle involves using a welding torch to melt a metal rod; the number of molten metal droplets required to cause a 40°C temperature rise in a calorimeter placed behind the fabric specimen is recorded.

Applicable Industries

Safety and Protective Equipment

Applicable Standards

EN (European Standard): CSN EN 348:2007; GB (Chinese National Standard): GB 8965.2:2020; Other Standards: AQ 6103; ISO (International Organization for Standardization): ISO 9150:1988; GB (Chinese National Standard): GB/T 17599:1998

Performance Features

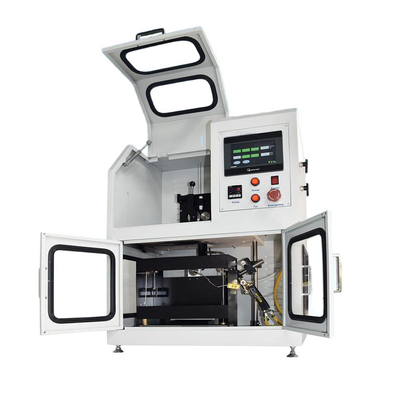

The tester comprises a burner, specimen holder, metal rod drive mechanism, burner flow controller, and a human-machine interface (HMI) display unit
An oxy-acetylene torch is used to melt the metal rod; the torch nozzle diameter is (1.2 ± 0.1) mm
A stepper motor drives the metal rod, with adjustable feed speed
A guide mechanism for molten droplets features a high-temperature, non-stick coated guide channel set at a 45-degree angle
A temperature sensor assembly measures the temperature rise on the back of the fabric specimen
A counterweighted copper hammer applies a pre-tension of 175g ± 0.5g to the fabric
Temperature rise data is recorded automatically, while the number of molten droplets is recorded manually by the operator

Technical Specifications

Dimensions and Weight
Dimensions	800 * 600 * 950 mm
Weight	112 kg
Installation Requirements
Electrical	220V, 1.1 kW
Ambient Conditions	Temperature (20 ± 2)°C, Humidity (65 ± 5)%
Gas Requirements	Oxygen, Acetylene
