EN 50399 Standard Wire Cable Heat Release Tester Fire Growth Rate Testing Machine Smoke Production Rate Analyzer Heat Release Tester

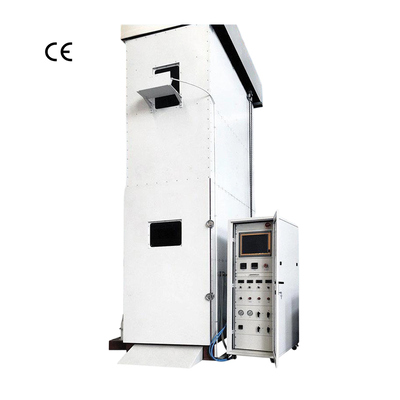

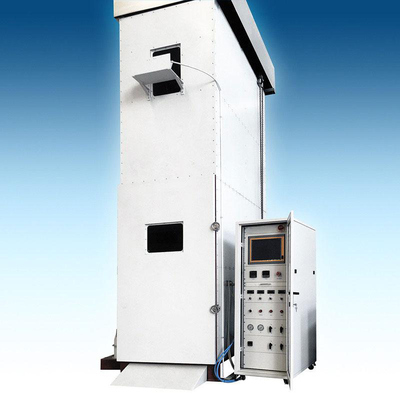

This testing system is designed for medium-scale fire tests simulating bundled cables or optical fibers. During testing, cables are mounted on a vertical standard steel ladder and ignited using a specified ignition source to evaluate combustion behavior and fire performance.

The test provides critical data on cable fire characteristics during initial combustion stages. Heat release rate measurements assess flame propagation risk along cables and potential fire impact on adjacent areas, while smoke density tests evaluate visibility in fire zones and smoke hazards to human safety.

• Flame Spread (FS)
• Heat Release Rate (HRR)
• Total Heat Release (THR)
• Smoke Production Rate (SPR)
• Total Smoke Production (TSP)
• Fire Growth Rate Index (FIGRA)

• EN European Standard: EN 50399:2022
• DIN German Institute for Standardization: DIN EN 50399:2023-12
• GB Chinese National Standard: GB/T 31248:2014

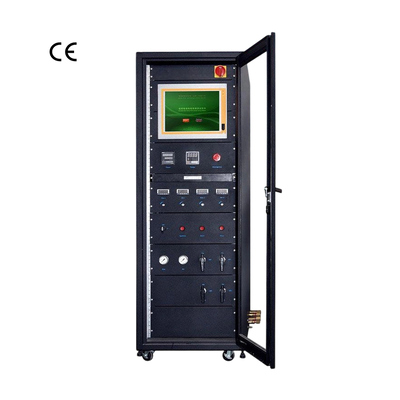

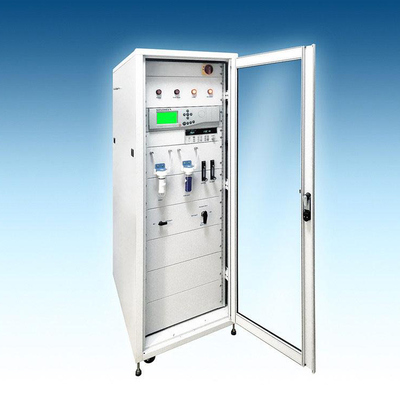

• Standard 19-inch rack-mounted unit with paramagnetic O₂ and non-dispersive infrared CO₂ gas analyzers
• Advantech data acquisition board for temperature, gas pressure differential, and gas analyzer data collection
• Stainless steel bidirectional velocity probe with micro-differential pressure sensor
• Three K-type thermocouples from OMEGA USA for flue gas temperature measurement
• Gas sampling probe assembly with PTFE tubing for corrosive gas sampling
• Dew point cold trap, gas flow stabilization equipment, and CAST gas sampling pump
• Incandescent lamp-based smoke density measurement system
• Five neutral filter discs with optical density range of 0.1-2
• Four imported mass flow controllers with pressure regulators and solenoid valves
• Standard test software with built-in calibration programs
• Complete system includes computer, printer, exhaust ducting, and centrifugal fan
• Dual propane and air mass flow controllers for flame calibration at 22.5 kW and 30 kW
