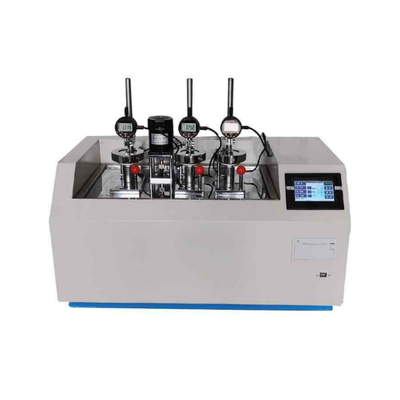

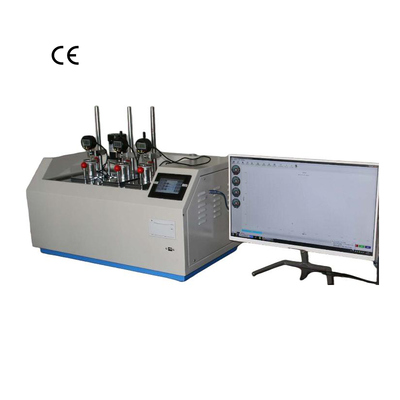

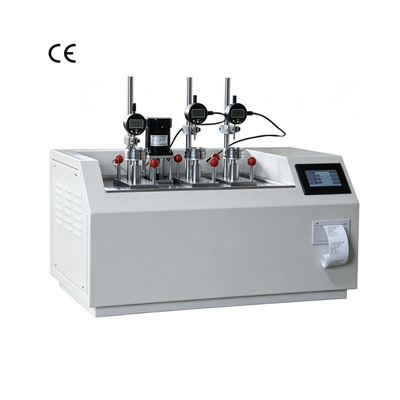

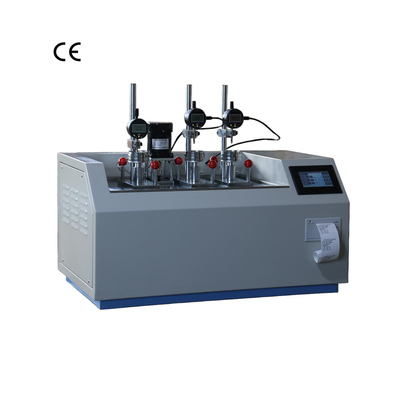

ISO 75 ASTM D648 Plastic Vicat Softening Temperature Test Machine ISO 306 ASTM D1525 Heat Deflection Temperature Tester

The Heat Deflection and Vicat Softening Temperature Tester is engineered to determine the heat-softening characteristics of plastic raw materials and finished products in compliance with international standards. This versatile instrument measures both heat deflection temperature and Vicat softening temperature through interchangeable indenters.

Utilizing transformer oil (up to 200°C) or methyl silicone oil (up to 300°C) as heat transfer media, the system features mechanical stirring for optimal oil circulation. The large-capacity tank design ensures stable temperature control and uniform temperature distribution throughout the testing environment.

• High-strength specimen rack prevents deformation under maximum load
• Materials with complementary thermal expansion coefficients minimize test interference
• Standard spans of 64mm and 100mm for heat deflection testing
• Quick switching between heat deflection and Vicat tests via interchangeable components
• Stainless steel inner liner with cooling water jackets for rapid cooling
• High-precision platinum resistance temperature sensor with 24-bit A/D conversion
• 3kW "U-type" heater with laboratory impeller stirrer for uniform temperature distribution
• Digital dial indicator with 0.01mm or 0.001mm resolution
• Color touchscreen HMI with real-time data display

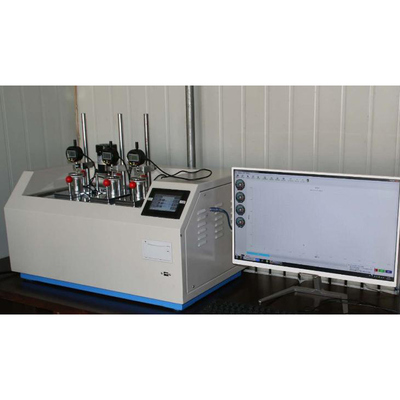

• Dual-control mode (PC and instrument unit operation)

• Dual-control operation (PC and standalone instrument unit)
• Constant-temperature and static pre-conditioning modes

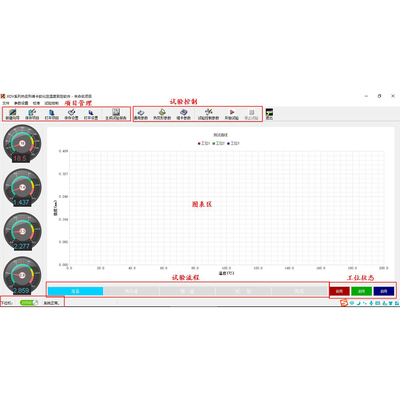

• Graphical interface for curve and test data display
• Comprehensive test report editing capabilities
• Save and load test parameters and environmental configurations
• Built-in micro-printer for immediate result printing
• USB data export to Excel format
• Real-time data transmission to host computer (120ms intervals)
• Comprehensive protection and notification functions
• Automatic heating shutdown and alarm systems
