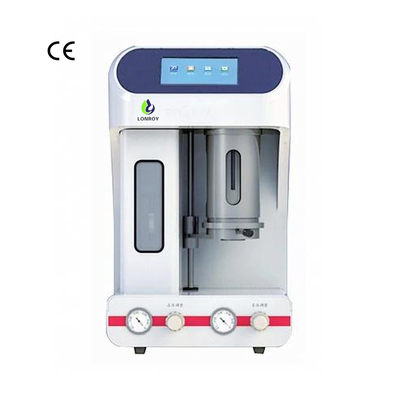

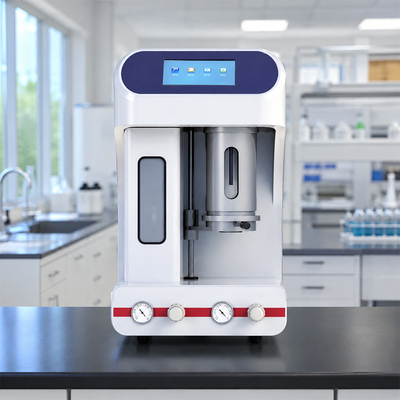

ISO 4406 ISO 11171 Oils Particle Contamination Analyzer Petroleum Pollution Test Machine Lubricant Particle Size Tester

The Oil Particle Contamination Analyzer measures particle size distribution and contamination class in oils using the light-blocking (extinction) principle. Suitable for testing hydraulic oil, lubricating oil, fire-resistant fluid, insulating oil, turbine oil, and other fluids, this instrument delivers rapid, accurate, reliable, and repeatable test results with comprehensive contamination monitoring and analysis reports.

Widely used in aviation, aerospace, electric power, petroleum, chemicals, transportation, port operations, metallurgy, machinery manufacturing, and automotive production.

GB/T 18854, ISO 11171, GJB-420A, GJB-420B, NAS 1638, GB/T 14039, ISO 4406, SAE 4059F-CPC, SAE 4059F, SAE 749D, GOST 17216, QC/T 29104, JB/T 9737, DL/T 432, HH005, etc.

• Utilizes light-blocking (light extinction) counting principle per International Hydraulic Standards Committee
• High-precision laser sensor with wide testing range, stable performance, low noise, and high resolution
• Precision high-pressure syringe pump for user-defined sample volumes with stable injection speeds
• Combined positive and negative pressure injection system for sample degassing
• Built-in pressure sensor for pressure setting and automatic monitoring
• Built-in air purification system to prevent test contamination
• Multiple built-in calibration curves compatible with common domestic and international standards
• Built-in support for various standards including NAS 1638, ISO 4406, ISO 11171, and more
• Built-in data analysis system providing test data and contamination levels across all standards
• Optional built-in sensor modules for viscosity, moisture, and temperature
• Arbitrary particle size settings with nearly 10,000 built-in size channels
• Compatible with various sampling containers including standard bottles and cups
• Full-function automatic color touchscreen interface (Chinese/English) with built-in printer
• Supports single-channel and multi-channel calibration with automatic functionality
• Built-in data analysis system for automatic sample grade determination
• RS232 interface for PC or laboratory platform connection
• Extensive data storage (1,000 data sets) with USB flash drive support

• Temperature: Acquisition Range: 1～100℃; Acquisition Accuracy: 1℃
• Water Activity: Acquisition Range: 1～100%RH; Acquisition Accuracy: 1%RH
• Water Content: Acquisition Range: 1～300ppm; Acquisition Accuracy: 1ppm
