ASTM D92 Automatic Closed-Cup Flash Point Tester for Petroleum Diesel Fuel Oils Flash Point Analyzer

Large Image : ASTM D92 Automatic Closed-Cup Flash Point Tester for Petroleum Diesel Fuel Oils Flash Point Analyzer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Certification:	CE,ISO,ASTM,DPR,ROHS
Model Number:	LR-Z092

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	7 work days
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	200

Contact Now

ASTM D92 Automatic Closed-Cup Flash Point Tester for Petroleum Diesel Fuel Oils Flash Point Analyzer

Description

Temperature Control Range:	1.0℃-99.9℃	Pneumatic Components:	SMC
Humidity:	≤95%	Sample Size:	Laminated Glass
Number Of Holes:	Standard 4 Holes (6mm, 8mm, 10mm, 12mm)	Boost Flow Rate:	20L/min
Range:	0 - 55℃	Host Material:	Taiwan Mirror
Model:	LR-220	Granularity:	Uniform
Temperature Resolution:	0.001℃	Marking Rods:	2
Equipment Weight:	100 Kg	Counter:	0~999999
Testing Method:	Pneumatic Type
Highlight:	Automatic Closed-Cup Flash Point Tester , ASTM D92 Flash Point Analyzer , Petroleum Diesel Fuel Oils Flash Point Test Machine

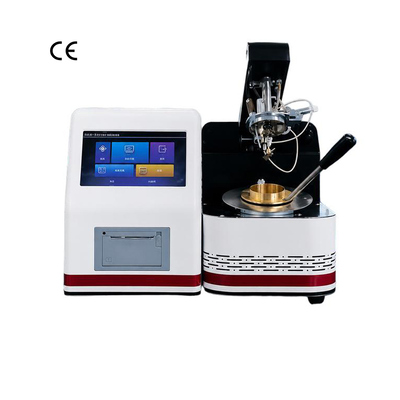

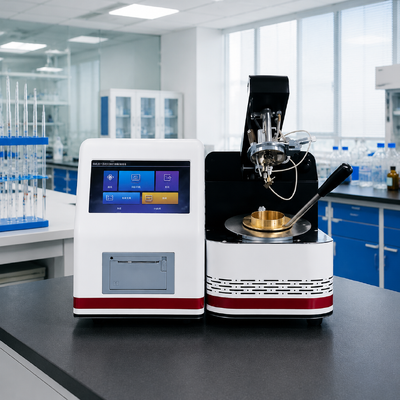

ASTM D92 Automatic Closed-Cup Flash Point Analyzer

The Automatic Closed-Cup Flash Point Tester utilizes advanced embedded control technology. Functions such as temperature acquisition, heating rate control, sweep timing, flash point detection, lid opening/closing, detection arm movement, and printing are intelligently controlled by an MCU, automating the entire closed-cup flash point testing process.

Applicable Standards: GB/T 3536, ASTM D92

Key Features

Large color touchscreen display with Chinese-language interface and menu-guided parameter input
Real-time curve tracking of temperature rise vs. test duration with software prompts
Standard RS-232, RS-485, and RJ45 interfaces for computer communication
USB interface for data export with 1,000 sets of historical data storage capacity
Atmospheric pressure sensor for automatic pressure corrections
Automated sweeping, ignition, detection, and data printing processes
Electronic ignition and forced-air cooling system
Complies with GB/T 261 test methods A, B, and C requirements
Optional barcode scanner for sample ID input

Technical Specifications

Measuring Range	Ambient Temperature ~ 300℃
Resolution	0.1℃
Repeatability	≤2℃
Reproducibility	≤4℃
Ignition Mode	Electronic Ignition, Gas Flame
Ambient Temperature	5℃~40℃
Ambient Humidity	＜85%
Total Power Consumption	≤400W
Instrument Weight	16kg
Working Power Supply	AC220V±10%, 50Hz
Overall Dimension	409mm353mm293mm
