ASTM D445 ISO 3105 Oils Automatic Viscometer ASTM D446 ISO 3104 Petroleum Fluids Viscosity Tester Analyzer

ASTM D445 ISO 3105 Oils Automatic Viscometer ASTM D446 ISO 3104 Petroleum Fluids Viscosity Tester Analyzer
ASTM D445 ISO 3105 Oils Automatic Viscometer ASTM D446 ISO 3104 Petroleum Fluids Viscosity Tester Analyzer

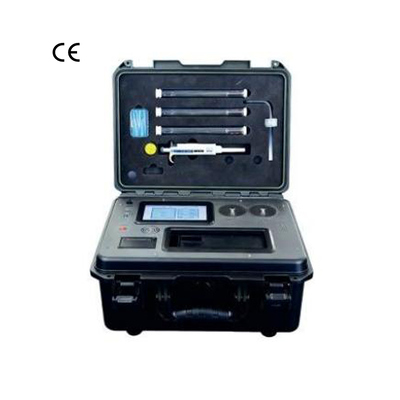

Large Image :  ASTM D445 ISO 3105 Oils Automatic Viscometer ASTM D446 ISO 3104 Petroleum Fluids Viscosity Tester Analyzer

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Certification: CE,ISO,ASTM,DPR,ROHS
Model Number: LR-Z090
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: Wooden package
Delivery Time: 7 work days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 200
Contact Now

ASTM D445 ISO 3105 Oils Automatic Viscometer ASTM D446 ISO 3104 Petroleum Fluids Viscosity Tester Analyzer

Description
Test Rod Weight: 75 Grams ±1 Measurement Range: 0 To 1000 Units
Rotation Speed: 0.5-10 Rpm Force Range: 0–100 Kg
Operating Temperature: 10°C To 40°C Noise Level: Low
Load Level: 14th Generation Current Protection: Reliable Devices
Overall Dimension: 270*290*600mm Costomizable: Available
Water Bath Temperature: 20°C±0.1°C Abrasive Material: German Imported (10 Kilograms)
Angle Of Incidence: 88.76° Maximum Test Force: 1KN
Scattering Angle: 90 °
Highlight:

ASTM D445 ISO 3105 Automatic Viscometer

,

Kinematic Viscosity Measurement Viscosity Tester

,

7-inch LCD Touch Screen Petroleum Fluids Analyzer

ASTM D445 ISO 3105 Oils Automatic Viscometer ASTM D446 ISO 3104 Petroleum Fluids Viscosity Tester Analyzer
Overview

The portable automatic viscometer is designed for rapid testing in the field or in small laboratories. It enables the quick, direct measurement of the kinematic viscosity of various Newtonian fluids—including new and in-service oils, whether transparent or opaque—across multiple temperature points.

Instrument Features
  • Utilizes a borosilicate glass capillary viscometer
  • Capable of measuring both transparent and opaque liquids
  • Fully featured, easy-to-operate instrument integrating high-precision temperature control, measurement, and automatic cleaning systems
  • Supports capillary cleanliness assessment, PID auto-tuning, and viscometer constant calibration
Applicable Standards
  • ASTM D445, ASTM D446
  • ISO 3104, ISO 3105
  • GB/T 265, GB/T 11137
Technical Specifications
Measuring Range 2～2000mm²/s, 10-fold span for single viscosity tube, maximum measuring span of 1000-fold for three viscosity tubes
Display Screen 7-inch LCD Touch Screen
Resolution 0.01℃
Repeatability ≤1%
Reproducibility ≤3%
Accuracy ≤1%
Temperature Control Accuracy ±0.1℃
Timing Accuracy ±0.01S
Temperature Control Range 40℃~100℃
Sample Injection Volume 0.3～1ml
Total Power ≤90W
Data Output Printer, USB Export
Protection Functions Over-temperature protection, heating protection, over-charge protection
Automatic Functions Temperature control, detection, drying, calculation, printing
Ambient Temperature 5～30℃
Relative Humidity ≤80%RH
Overall Dimensions 440mm×350mm×230mm
Instrument Weight Approx. 12.8kg
Working Power Supply Built-in 24V Rechargeable Lithium Battery
