GB/T 8627 Compliant Smoke Density Tester with Stainless Steel Components and Computer Control System

Large Image : GB/T 8627 Compliant Smoke Density Tester with Stainless Steel Components and Computer Control System

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$1,000

Contact Now

GB/T 8627 Compliant Smoke Density Tester with Stainless Steel Components and Computer Control System

Description

Instrument Type:	Combustion Decomposition Smoke Density Tester	Color:	/
Customized Support:	OEM, ODM, OBM	Material:	/
Power:	/	Warranty:	1 Year
Highlight:	smoke density tester for building materials , combustion decomposition flammability tester , burning pyrolysis smoke obscuration instrument

Building Materials Combustion Decomposition Smoke Density Tester

Product Overview

The LR-ER103 Smoke Density Tester is designed to measure the static smoke generation of building materials and their products during combustion or decomposition. It is also suitable for testing other solid materials.

Application Scope

Suitable for measuring the static smoke generation of building materials and their products during combustion or decomposition, as well as for testing other solid materials.

Standards Compliance

Complies with the testing requirements of GB/T 8627, "Test Method for Smoke Density of Burning or Decomposing Building Materials."

Structural Features

Consists of two main parts: combustion chamber and computer control system
Combustion chamber dimensions: L300 × W300 × H790 (mm)
High-quality baked enamel finish with CNC machining for aesthetic rounded design
Internal components made of high-quality stainless steel with excellent rust resistance

Operating Conditions

Level floor with good ventilation, free from flammable, explosive, or corrosive gases and dust
No strong electromagnetic radiation sources nearby
Adequate maintenance space around equipment
Test conditions: (23 ± 2)°C, humidity (50 ± 5)%
Power supply: AC 220V/50Hz
Voltage fluctuation range: 220V ± 10%
Frequency fluctuation range: 50Hz ± 1%
Requires dedicated air circuit breaker or power switch

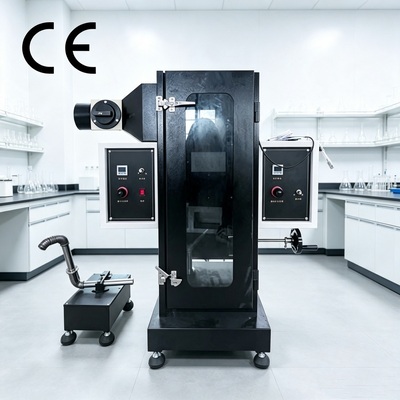

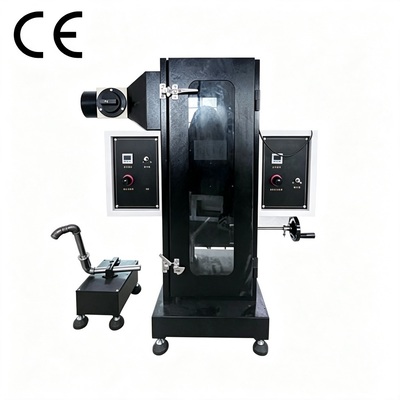

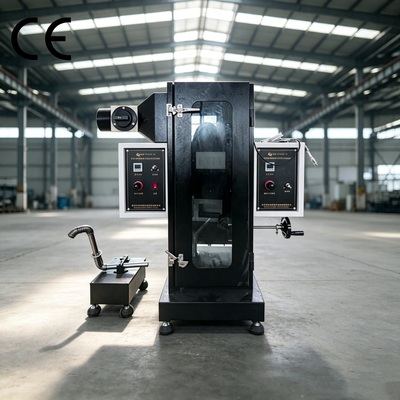

Product Images

Technical Specifications

Gas Source	95% propane gas or equivalent purity (customer supplied)
Burner	Bunsen burner; length 260mm, nozzle diameter 0.13mm, positioned at 45° angle
Photoelectric System	15W bulb operating at 6V
Exhaust System	Powerful exhaust fan to vent gases outdoors
Smoke Density Range	0-100%
Measurement Accuracy	±3%
Receiver	Silicon photocell
Focal Length	60-65mm (after adjustment)
Main Burner Pressure	276 kPa (adjustable)
Auxiliary Burner Pressure	138 kPa (adjustable)
Machine Features	Automatic timing, manual ignition, automatic smoke exhaust, automatic light flux calibration
Computer Control	Light transmission measurement software, curve report generation, automatic data saving
