Multifunctional Magnetron Coating System for Powder Cladding Fine Particle Sputtering Coater Film Sputter Testing Machine

Multifunctional Magnetron Coating System for Powder Cladding Fine Particle Sputtering Coater Film Sputter Testing Machine
Multifunctional Magnetron Coating System for Powder Cladding Fine Particle Sputtering Coater Film Sputter Testing Machine Multifunctional Magnetron Coating System for Powder Cladding Fine Particle Sputtering Coater Film Sputter Testing Machine Multifunctional Magnetron Coating System for Powder Cladding Fine Particle Sputtering Coater Film Sputter Testing Machine Multifunctional Magnetron Coating System for Powder Cladding Fine Particle Sputtering Coater Film Sputter Testing Machine Multifunctional Magnetron Coating System for Powder Cladding Fine Particle Sputtering Coater Film Sputter Testing Machine Multifunctional Magnetron Coating System for Powder Cladding Fine Particle Sputtering Coater Film Sputter Testing Machine

Large Image :  Multifunctional Magnetron Coating System for Powder Cladding Fine Particle Sputtering Coater Film Sputter Testing Machine

Product Details:
Place of Origin: Guangdong, China
Brand Name: LONROY
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1,000
Contact Now

Multifunctional Magnetron Coating System for Powder Cladding Fine Particle Sputtering Coater Film Sputter Testing Machine

Description
Machine Type: Magnetron Coating System Voltage: 220 V
Power(w): / Dimension(l*w*h): 1800*620*1050
Warranty: 1 Year Weight (kg): 200
Highlight:

magnetron coating system for powder cladding

,

fine particle sputtering coater machine

,

film sputter testing machine with warranty

Products Description
Multifunctional Magnetron Coating System for Powder Cladding Fine Particle Sputtering Coater Film Sputter Testing Machine

Brief Introduction This equipment is primarily used for the coating preparation (via magnetron sputtering, CVD, or PECVD) and heat treatment of powder and granular materials. It serves to improve surface properties, dispersion, and stability, while imparting new functionalities such as electrical conductivity and corrosion resistance.
Multifunctional Magnetron Coating System for Powder Cladding Fine Particle Sputtering Coater Film Sputter Testing Machine

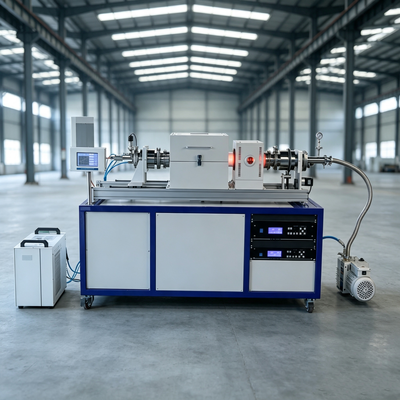

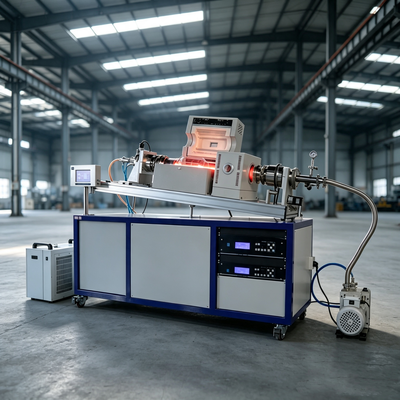

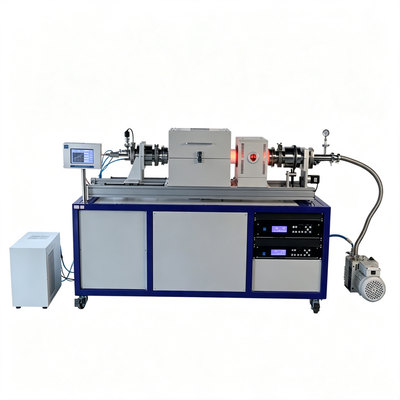

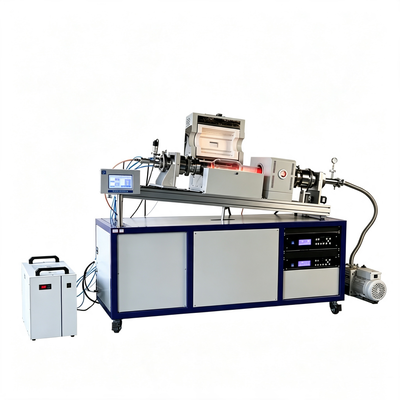

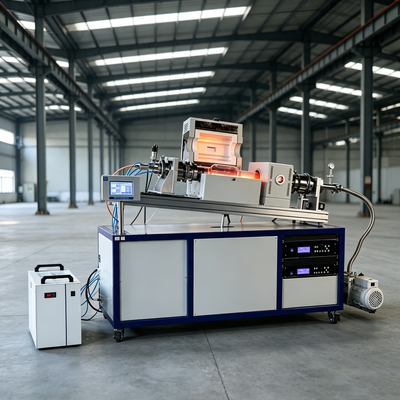

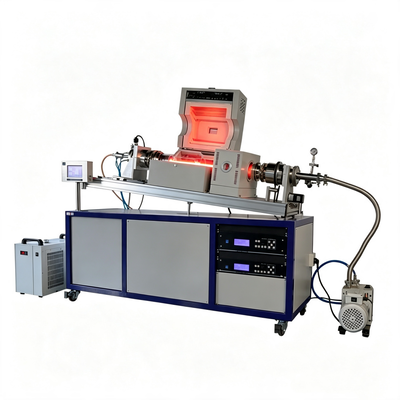

Detailed Introduction This equipment is primarily used for the coating preparation of powder and granular materials, aiming to enhance their surface properties, dispersion, and stability, as well as to impart new functionalities like electrical conductivity and corrosion resistance. The powder coating magnetron sputtering system achieves uniform coating on powder surfaces by rotating the powder within the sputtering chamber. The chamber is capable of rotation and tilting, allowing for rapid material discharge. Powder coating involves introducing one or more types of powder particles into the equipment and using physical or chemical methods to form a layer of material over the particle surfaces. The objectives of powder coating include modifying surface properties, increasing particle stability, and controlling release rates.
Multifunctional Magnetron Coating System for Powder Cladding Fine Particle Sputtering Coater Film Sputter Testing Machine
Application Areas 1. New Energy Materials: Surface coating of lithium battery cathode and anode materials (e.g., lithium cobalt oxide, silicon-carbon anodes) to enhance conductivity, cycle stability, and safety. Surface modification of fuel cell catalysts to boost catalytic activity and corrosion resistance. 2. Electronic Ceramics and Semiconductors: Coating ceramic powders (e.g., Al₂O₃, SiC) with metal or insulating layers to improve dielectric properties or thermal conductivity. Passivation treatment of semiconductor powders (e.g., silicon powder) to reduce surface defects. 3. Biomedical: Sustained-release coatings (e.g., polymer or metal thin films) for pharmaceutical powders to control drug release rates. Biocompatible coatings (e.g., hydroxyapatite) for bone repair materials. 4. Aerospace and Defense: Surface anti-oxidation coatings for high-temperature alloy powders (e.g., titanium alloys) to improve high-temperature performance. Wave-absorbing coatings for stealth materials (e.g., magnetic thin films coated onto carbon powder). 5. Chemical Industry and Catalysis: Encapsulation of catalyst supports (such as molecular sieves and activated carbon) with metal nanoparticles to enhance reaction efficiency. Anti-agglomeration coating treatment to improve powder flowability.
Multifunctional Magnetron Coating System for Powder Cladding Fine Particle Sputtering Coater Film Sputter Testing Machine
Product Features 1. High uniformity and density; 2. Broad material compatibility; 3. High controllability; 4. Environmentally friendly and safe; 5. Efficient batch processing; 6. Strong interfacial bonding;
Multifunctional Magnetron Coating System for Powder Cladding Fine Particle Sputtering Coater Film Sputter Testing Machine
Multifunctional Magnetron Coating System for Powder Cladding Fine Particle Sputtering Coater Film Sputter Testing Machine
Multifunctional Magnetron Coating System for Powder Cladding Fine Particle Sputtering Coater Film Sputter Testing Machine
Multifunctional Magnetron Coating System for Powder Cladding Fine Particle Sputtering Coater Film Sputter Testing Machine
Multifunctional Magnetron Coating System for Powder Cladding Fine Particle Sputtering Coater Film Sputter Testing Machine
Specification
Technical Specifications
Category
Item
Specification
Product Name
Multifunctional Powder Coating Machine
Model
LR-CK102
Control System
Display
7-inch touchscreen
Magnetron Sputtering
Target Size
2 inches
Target Gun Type
Standard magnetic field
Compatible Targets
Non-magnetic metal targets
Sputtering Type
DC sputtering
Sputtering Vacuum
DC: 0.3 Pa
Sputtering Rate
Example (Copper): 7 nm/min
Film Thickness
≤1 μm
Film Uniformity
±3%
Sample Particle Size
Optimal size range:
Total Sample Mass
≤500 g
Baking System
Baking Temperature
Adjustable up to 500°C
Heating Rate
Adjustable up to 50°C/s
Temperature Control Precision
±1°C
Temperature Control Mode
Programmable; program-controlled
Rotation & Tilt
Rotation Speed
Adjustable (0–20 RPM)
Tilt Angle
Adjustable (0–60°)
Plasma
RF Power
150 W (Optional specifications available: 300 W, 500 W, 600 W, 1000 W, 1500 W)
Functionality
Enables surface etching and modification of the powder prior to coating to enhance coating adhesion.
Gas Supply System
Gas Types
Compatible with Argon, Nitrogen, Oxygen, etc.
Gas Control
Uses mass flow controllers (MFCs) for flow control and metering.
Vacuum System
Fore-vacuum Pump
Typically a two-stage rotary vane pump; other types available upon request.
Molecular Pump
Typically a domestic molecular pump; other types available upon request.
Vacuum Gauge
Compound vacuum gauge; measurement range: 10⁻⁵ Pa to 10⁵ Pa
Water Cooling Unit
Max. flow rate: 10–16 L/min; max. lift: 10–25 m
Power Supply
AC 220V / 50Hz
Equipment Dimensions
1800 × 620 × 1050 mm
Packaging Dimensions
1900 × 720 × 1150 mm
Package Weight
200 kg
Included Accessories
1. Instruction manual (1 copy)2. Accessory kit (1 set)3. Parts list (1 copy)
