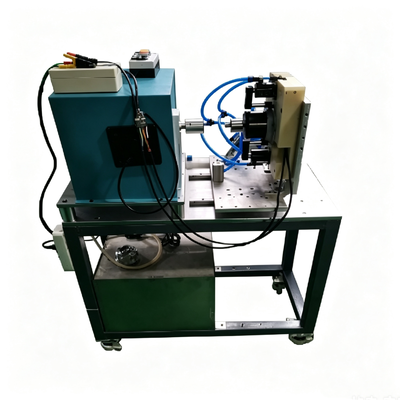

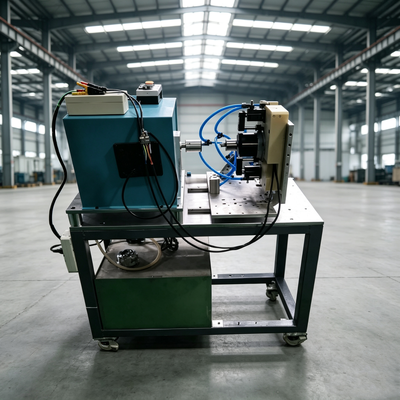

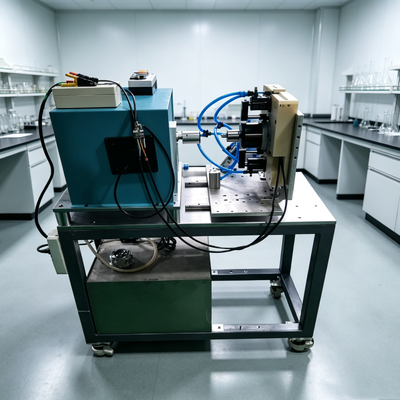

BLDC Fan Motor Dynamometer Brushless DC Ventilator Motor Dyno Direct Current Electrical Machine Device Air Blower Tester

Product Introduction 1. Primarily designed for brushless DC (BLDC) motors; 2. Features a built-in industrial computer; 3. Incorporates multiple anti-interference measures for robust performance; 4. Modular hardware design for easy maintenance;

Functional Features 1. Performs comprehensive testing—including withstand voltage, insulation resistance, inter-turn insulation, DC resistance (including three-phase resistance balance), inductance, magnetic rotation, back-EMF, Hall/FG waveforms (optional), and phase sequence—all with a single connection setup; 2. Resistance testing automatically calculates three-phase resistance balance; real-time ambient temperature monitoring allows test results to be automatically normalized to a standard temperature, simplifying result evaluation and ensuring test consistency; 3. High-speed testing capabilities; the control core utilizes a high-speed ARM processor for rapid and comprehensive data processing; 4. Built-in industrial-grade computer with a 19-inch true-color LCD display; supports unlimited storage of test conditions and results; includes a USB interface for easy data copying; features a user-friendly interface running on Windows OS with professional control software that is clean and intuitive; 5. Open software platform: includes functions for editing test items, exporting test reports, analyzing test data, and configuring user access rights; 6. Equipped with a three-color alarm light providing clear indications for testing status, pass, and fail; triggers both audible and visual alarms upon failure; 7. Modular hardware design for easy maintenance; 8. Employs multiple anti-interference measures for strong interference resistance; incorporates both hardware and software protection mechanisms to significantly enhance instrument reliability.
