Fully Automatic Load-Displacement Curve Tester Mobile Phone Keys Testing Machine Computer Keyboard Buttons Test Equipment

Large Image : Fully Automatic Load-Displacement Curve Tester Mobile Phone Keys Testing Machine Computer Keyboard Buttons Test Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Fully Automatic Load-Displacement Curve Tester Mobile Phone Keys Testing Machine Computer Keyboard Buttons Test Equipment

Description

Type:	Load-Displacement Curve Tester	Accuracy Class:	High Accuracy
Accuracy:	/	Customized Support:	OEM, ODM, OBM
Power:	/	Protection Class:	/
Voltage:	220 V, Other	Warranty:	1 Year
Highlight:	fully automatic load-displacement curve tester , mobile phone keys testing machine , computer keyboard buttons test equipment

Products Description

Fully Automatic Load-Displacement Curve Tester Mobile Phone Keys Testing Machine Computer Keyboard Buttons Test Equipment

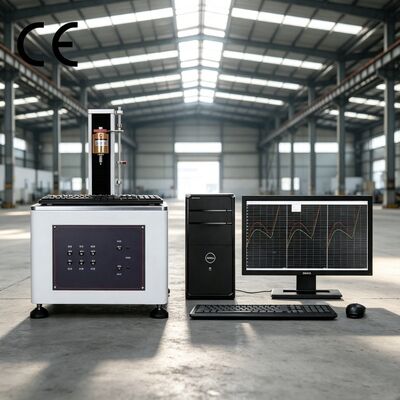

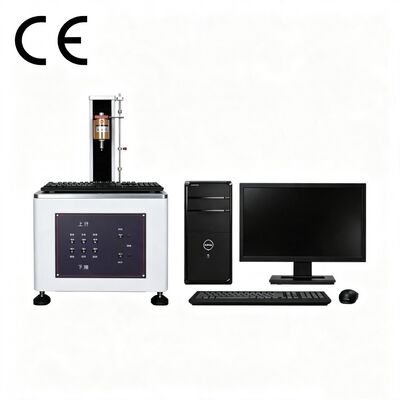

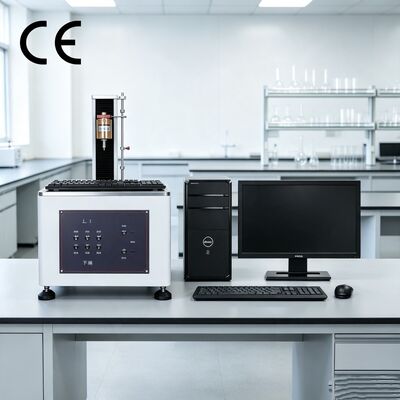

Single-axis motion Equipment Overview This machine is designed for life-cycle and aging tests on various types of keys and switches, including mobile phone keys, computer keyboards, conductive rubber keypads, tactile switches, membrane switches, and metal dome switches (snap domes). It also supports testing of electrical contact status (OFF-ON and ON-OFF transitions) and resistance parameters for conductive keys.

Fully Automatic Load-Displacement Curve Tester Mobile Phone Keys Testing Machine Computer Keyboard Buttons Test Equipment

Test Applications ① Mobile phone keys ② MP3 player keys ③ Computer keys ④ Remote control keys ⑤ Rubber keypads

Fully Automatic Load-Displacement Curve Tester Mobile Phone Keys Testing Machine Computer Keyboard Buttons Test Equipment

Specification

Technical Specifications

Item	Specification
Model	LR-AD102
Load Cell	Options: 1kg, 2kg, 5kg, 10kg, 20kg, 50kg
Load Cell Accuracy	±0.3%
Minimum Load Display	0.1gf
Displacement Stroke	100mm
Minimum Displacement Display	0.01/0.001mm
Test Speed Range	0–100mm/min
Probe Center Depth	120mm
Dimensions (L x W x H)	475 x 325 x 750mm
Machine Weight	40kg
Power Supply	AC 220V 50Hz

Our Advantages
