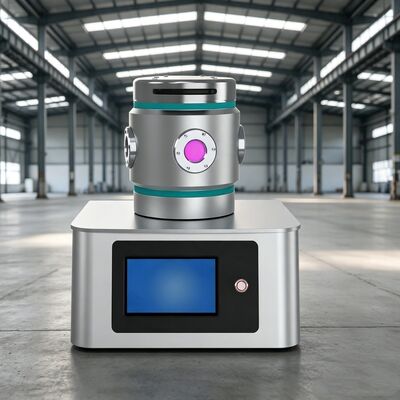

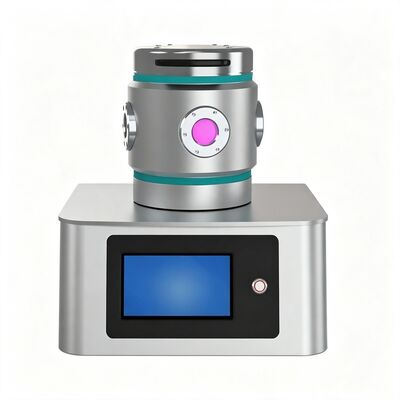

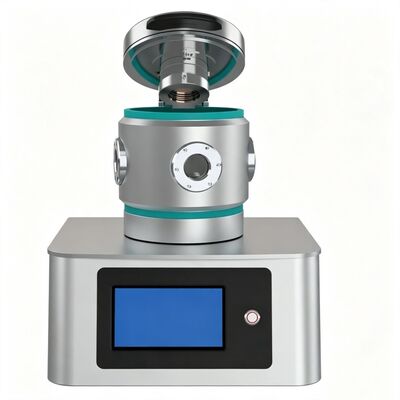

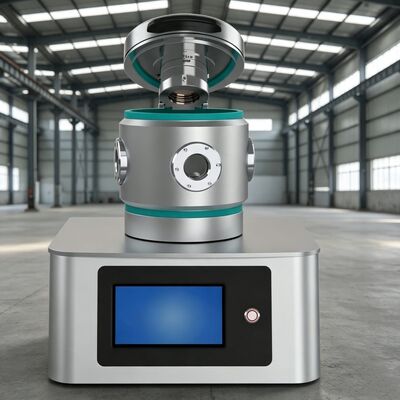

Desktop Aluminum Alloy Chamber Single-Target Magnetron Sputtering Coater Sputter Coating Test Machine Film Deposition Tester

Desktop Aluminum Alloy Chamber Single-Target Magnetron Sputtering Coater Sputter Coating Test Machine Film Deposition Tester

Desktop Aluminum Alloy Chamber Single-Target Magnetron Sputtering Coater Sputter Coating Test Machine Film Deposition Tester

Desktop Aluminum Alloy Chamber Single-Target Magnetron Sputtering Coater Sputter Coating Test Machine Film Deposition Tester

Desktop Aluminum Alloy Chamber Single-Target Magnetron Sputtering Coater Sputter Coating Test Machine Film Deposition Tester

Desktop Aluminum Alloy Chamber Single-Target Magnetron Sputtering Coater Sputter Coating Test Machine Film Deposition Tester

Desktop Aluminum Alloy Chamber Single-Target Magnetron Sputtering Coater Sputter Coating Test Machine Film Deposition Tester

Large Image : Desktop Aluminum Alloy Chamber Single-Target Magnetron Sputtering Coater Sputter Coating Test Machine Film Deposition Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$1,000

Contact Now

Desktop Aluminum Alloy Chamber Single-Target Magnetron Sputtering Coater Sputter Coating Test Machine Film Deposition Tester

Description

Machine Type:	Single-Target Magnetron Sputtering Coater	Voltage:	220 V
Power(w):	2000	Dimension(lwh):	385X450X420mm
Warranty:	1 Year	Weight (kg):	30
Highlight:	aluminum alloy magnetron sputtering coater , desktop sputter coating test machine , single-target film deposition tester

Products Description

Desktop Aluminum Alloy Chamber Single-Target Magnetron Sputtering Coater Sputter Coating Test Machine Film Deposition Tester

Brief Introduction The desktop single-target magnetron sputtering coater with an aluminum alloy chamber is a compact coating system that utilizes magnetron sputtering technology to deposit thin films onto substrate surfaces.

Desktop Aluminum Alloy Chamber Single-Target Magnetron Sputtering Coater Sputter Coating Test Machine Film Deposition Tester

Detailed Description This desktop single-target magnetron sputtering coater features an aluminum alloy chamber and employs magnetron sputtering technology to deposit thin films onto substrates.

Desktop Aluminum Alloy Chamber Single-Target Magnetron Sputtering Coater Sputter Coating Test Machine Film Deposition Tester

Key features Aluminum Alloy Vacuum Chamber: Lightweight design with excellent corrosion resistance, suitable for laboratory or small-scale production environments. Single-Target Configuration: Supports the use of a single target material (e.g., metals, alloys, or oxides); features a simple structure and ease of operation. Magnetron Sputtering Technology: Utilizes a magnetic field to confine plasma, thereby enhancing sputtering efficiency and producing uniform, dense thin films. Desktop Design: Compact footprint, making it ideal for locations with limited space, such as research institutes and university laboratories.

Desktop Aluminum Alloy Chamber Single-Target Magnetron Sputtering Coater Sputter Coating Test Machine Film Deposition Tester

Application Areas This equipment is widely used in fields such as materials science, optics, and electronics, specifically for: Optical Thin Films: Anti-reflective coatings, reflective coatings, optical filters, etc. Electronic Devices: Semiconductor electrodes, conductive thin films (e.g., ITO), and sensor coatings. Functional Materials: Wear-resistant coatings (e.g., TiN), anti-corrosion coatings, and superhard thin films (e.g., DLC/diamond-like carbon). Scientific Research: New material development, thin-film performance testing, educational demonstrations, etc.

Desktop Aluminum Alloy Chamber Single-Target Magnetron Sputtering Coater Sputter Coating Test Machine Film Deposition Tester

Desktop Aluminum Alloy Chamber Single-Target Magnetron Sputtering Coater Sputter Coating Test Machine Film Deposition Tester

Desktop Aluminum Alloy Chamber Single-Target Magnetron Sputtering Coater Sputter Coating Test Machine Film Deposition Tester

Desktop Aluminum Alloy Chamber Single-Target Magnetron Sputtering Coater Sputter Coating Test Machine Film Deposition Tester

Desktop Aluminum Alloy Chamber Single-Target Magnetron Sputtering Coater Sputter Coating Test Machine Film Deposition Tester

Specification

Technical Specifications

Category	Item	Specification
Product Name	Desktop Aluminum Alloy Chamber Single-Target Magnetron Sputtering Coater
Model	LR-CK104
Sample Stage	Dimensions	φ50 mm
		Rotation	Rotation + Revolution; 2-inch tilting capability
		Adjustable Speed	≤20 rpm
Magnetron Sputtering Gun	Equipped with one 2-inch magnetron target; target dimensions: 50.8 mm diameter, ≤3 mm thickness
Vacuum Chamber	Chamber Dimensions	φ180 mm × 150 mm
		Chamber Material	Aluminum alloy

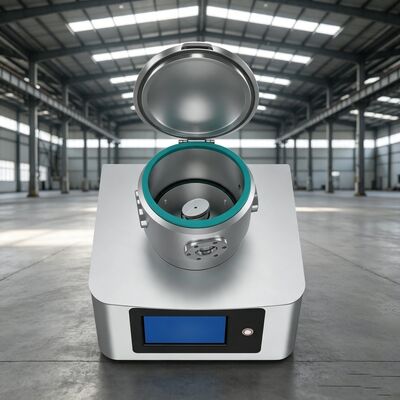

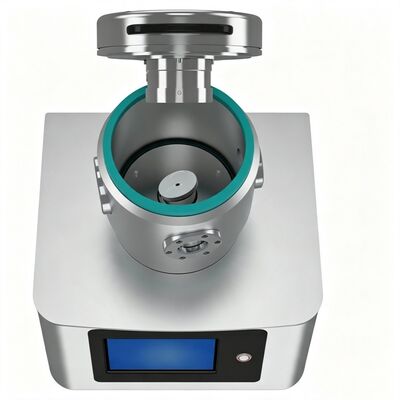

		Opening Method	Removable top cover
Vacuum System	Vacuum Measurement	Compound vacuum gauge; range: 10⁻⁵ to 10⁵ Pa
		Vacuum Port	KF25
		System Vacuum	1.0 × 10⁻¹ Pa (mechanical pump)
Power Supply	AC 220V, 50/60 Hz
Output Power	DC power supply 500 W
Other Parameters	Input Voltage	AC 220V, 50 Hz
		Total Power	2 kW
		Weight	30 kg
		Overall Dimensions	385 × 450 × 420 mm

Our Advantages

Desktop Aluminum Alloy Chamber Single-Target Magnetron Sputtering Coater Sputter Coating Test Machine Film Deposition Tester
