DC Motor Performance Test System Direct Current Motor Property Tester Torque Speed Electric Motor Characteristic Testing Machine

Large Image : DC Motor Performance Test System Direct Current Motor Property Tester Torque Speed Electric Motor Characteristic Testing Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

DC Motor Performance Test System Direct Current Motor Property Tester Torque Speed Electric Motor Characteristic Testing Machine

Description

Maximum Input Current:	/	Type:	DC Electronic Load
Accuracy:	/	Connection Interface:	/
Operating Mode:	/	Display Type:	LCD Display
Highlight:	DC motor torque speed tester , direct current motor performance test system , electric motor characteristic testing machine

Products Description

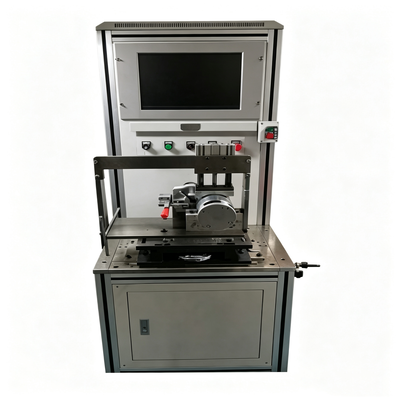

DC Motor Performance Test System Direct Current Motor Property Tester Torque Speed Electric Motor Characteristic Testing Machine

Product Overview The DC motor performance test system is designed for testing low- to medium-power motors. During operation, torque remains independent of rotational speed, enabling comprehensive testing across the entire range from no-load to locked-rotor conditions. It achieves high-precision measurement of parameters such as voltage, current, input power, rotational speed, torque, output power, and efficiency.

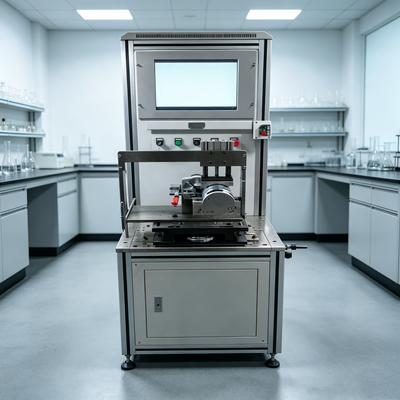

DC Motor Performance Test System Direct Current Motor Property Tester Torque Speed Electric Motor Characteristic Testing Machine

Test Items 1.Torque-speed characteristics and efficiency: Torque-speed curves, motor efficiency. 2.Measurement of key characteristic parameters: Continuous torque, continuous power, peak torque, peak power, operating speed, operating efficiency, locked-rotor torque and current tests, T-N test curve reports, constant-torque tests, and durability/lifespan tests.

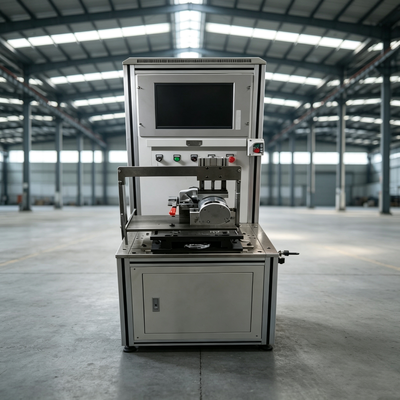

DC Motor Performance Test System Direct Current Motor Property Tester Torque Speed Electric Motor Characteristic Testing Machine

Functional Features 1. High testing accuracy, excellent repeatability, robust operational stability, high parallel processing efficiency, long service life, and ease of use. 2. Multiple test modes: Automatic, manual, fixed-point, and durability testing. 3. Real-time acquisition and display of measured parameters, including torque, speed, power, input voltage, current, and input power. 4. Real-time plotting of speed, torque, and power curves. 5. Ability to review and modify test data. 6. Flexible generation and printing of test data reports. 7. Automatic generation and printing of various characteristic curves. 8. Adjustable load increments; initial load values and incremental steps can be configured.

DC Motor Performance Test System Direct Current Motor Property Tester Torque Speed Electric Motor Characteristic Testing Machine

Specification

Technical Specifications

Item	Value
Warranty	1 Year
Customized Support	OEM, ODM, OBM
Place of Origin	Guangdong, China
Brand Name	LONROY
Model Number	LR-TL75
Product Name	DC Motor Performance Test System
