Product Overview

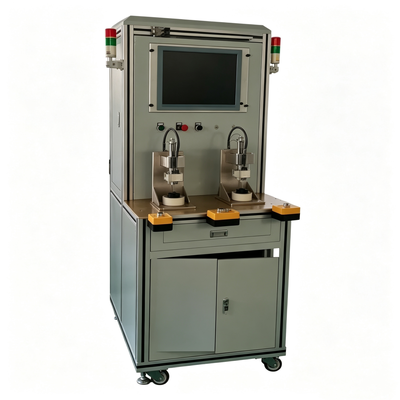

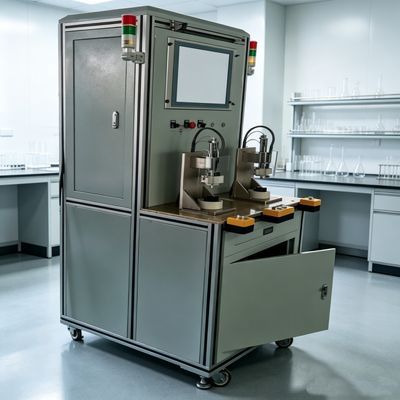

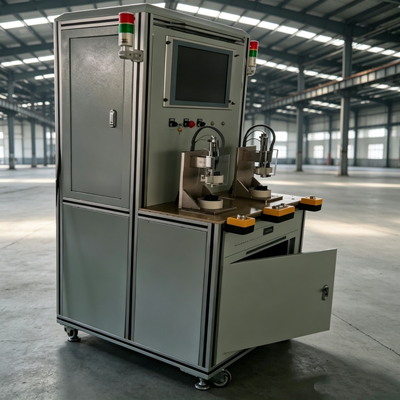

The automotive solenoid valve test system is designed to test parameters such as resistance and inductance. The system utilizes an industrial PC for centralized control; all test items can be completed with a single connection, and test results are automatically analyzed, evaluated, compiled into statistics, stored, and printed. Users can preset all parameters for recall during testing.

Test Items

Resistance Test: Measures the phase resistance or line-to-line resistance of each phase with 0.2-class accuracy. Resistance values are automatically temperature-compensated based on ambient temperature. Upper and lower limits are configurable, and test duration ranges from 1 to 99 seconds. The system measures phase resistance unbalance, and the software triggers an alarm if values or unbalance levels exceed set limits.

Inductance Test: Measures the inductance of each phase coil with 0.5-class accuracy at a test frequency of 1 kHz. The software triggers an alarm if values ​​or unbalance levels exceed set limits.

Key Features

• Meets requirements for motor factory acceptance testing; features automation, high precision, and high speed, significantly boosting production efficiency.
• Dual-station measurement capability enhances testing throughput.
• User-friendly interface ensures ease of operation; includes functions for alarms, data storage, statistical analysis, and printing.
• Supports manual and automatic testing modes and human-machine interaction; suitable for applications such as rapid testing on assembly lines.
