Electro-Vertical Torsion Testing Machine Torsional Strength Detector Torque Force Tester Rotation Angle Impedance Value Analyzer

Large Image : Electro-Vertical Torsion Testing Machine Torsional Strength Detector Torque Force Tester Rotation Angle Impedance Value Analyzer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$1,000

Contact Now

Electro-Vertical Torsion Testing Machine Torsional Strength Detector Torque Force Tester Rotation Angle Impedance Value Analyzer

Description

Instrument Type:	Torsion Testing Machine	Color:	/
Customized Support:	OEM, ODM, OBM	Material:	/
Power:	/	Warranty:	1 Year
Highlight:	Electro-Vertical Torsion Testing Machine , Torsional Strength Detector with torque measurement , Rotation Angle Analyzer for lab testing

Products Description

Electro-Vertical Torsion Testing Machine Torsional Strength Detector Torque Force Tester Rotation Angle Impedance Value Analyzer

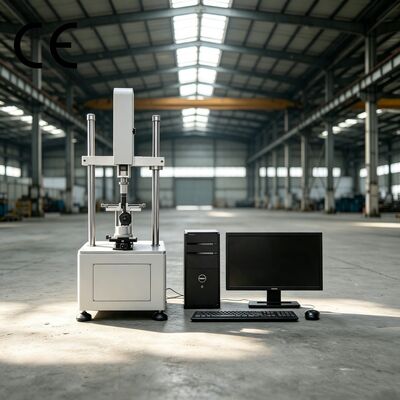

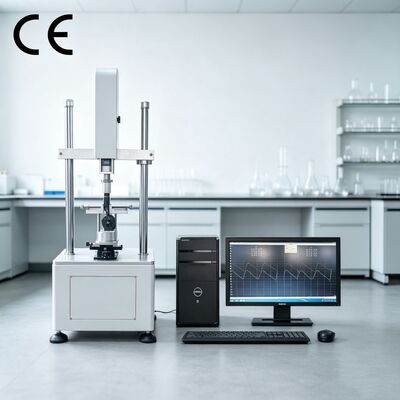

Equipment Overview This machine utilizes computer control for the entire testing process and supports both clockwise and counter-clockwise testing. It provides real-time dynamic display of test curves illustrating the relationships between torque, angle, and impedance values. It is commonly used for torque or torsional life testing of products such as cosmetic cases, mobile phones, tablets, e-readers, chargers, automotive door locks, and hinges.

Electro-Vertical Torsion Testing Machine Torsional Strength Detector Torque Force Tester Rotation Angle Impedance Value Analyzer

Specification

Main Technical Specifications

Item	Specification
Model	LR-AD105
Torque Range	5 N·m, 10 N·m, 20 N·m, 50 N·m
Effective Force Measurement Range	1–100% of full scale
Torque Resolution	0.001 N·cm
Torque Indication Accuracy	±0.5%
Torque Unit Switching	kgf·cm, N·m, Lb·in
Test Angle	Unlimited
Angle Resolution	0.001°
Rotation Speed Range	60–15,000°/min
Effective Test Height	400 mm (customizable)
Effective Test Width	400 mm (customizable)
Fixture Adjustment Range	X and Y axes: 0–200 mm; Accuracy: ±0.05 mm
Fixture Clamping Diameter	5–60 mm
Machine Dimensions	Approx. 420 × 310 × 1150 mm
Weight	Approx. 67 kg
