Fully Automatic Microcomputer-Controlled Spring Tension Compression Testing Machine Stiffness Detector Force Displacement Tester

Large Image : Fully Automatic Microcomputer-Controlled Spring Tension Compression Testing Machine Stiffness Detector Force Displacement Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$1,000

Contact Now

Fully Automatic Microcomputer-Controlled Spring Tension Compression Testing Machine Stiffness Detector Force Displacement Tester

Description

Accuracy:	High Presion	Type:	Spring Tension Compression Testing Machine
Customized Support:	OEM, ODM, OBM	Material:	Metal
Relative Humidity:	/	Size:	450 380 750mm
Warranty:	1 Year
Highlight:	fully automatic spring tension tester , microcomputer-controlled compression testing machine , force displacement stiffness detector

Products Description

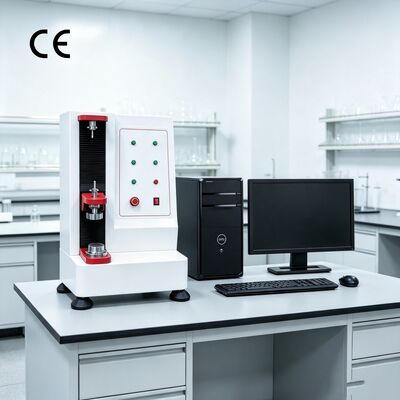

Fully Automatic Microcomputer-Controlled Spring Tension Compression Testing Machine Stiffness Detector Force Displacement Tester

Automatic Loading Equipment Overview This machine features a vertical structure with a base constructed from two thickened steel plates. The crosshead utilizes a ball screw and linear guide rail system for vertical movement, enhancing torque transmission efficiency while ensuring smooth, stable operation. It is powered by an imported servo motor, characterized by rapid response, high control precision, and quiet, smooth performance. Controlled by dedicated PC software that handles both operation and data analysis, the machine offers comprehensive functionality. It enables precise testing and analysis of parameters—such as tensile force, compressive force, displacement, and stiffness—for various precision springs, including cylindrical, disc, conical, snap-ring, leaf, and custom-shaped springs.

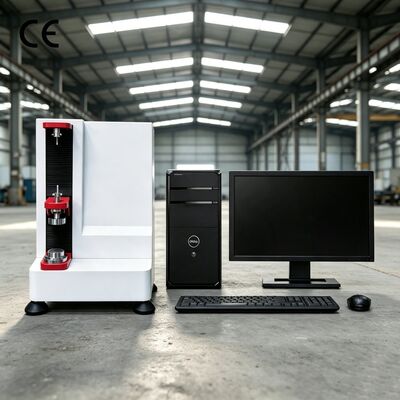

Fully Automatic Microcomputer-Controlled Spring Tension Compression Testing Machine Stiffness Detector Force Displacement Tester

Test Parameters ① Spring tensile force ② Spring compressive force ③ Spring residual height ④ Spring deformation ⑤ Spring stiffness

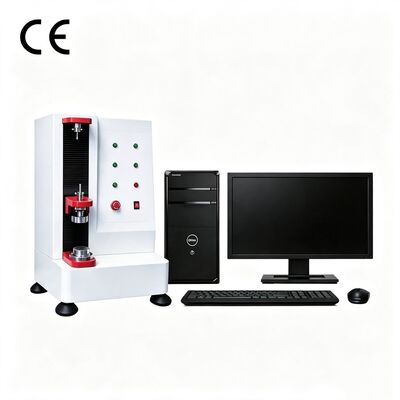

Fully Automatic Microcomputer-Controlled Spring Tension Compression Testing Machine Stiffness Detector Force Displacement Tester

Specification

Main Technical Specifications

Item	Specification
Model	LR-AD104
Load Cell Capacity	Options: 1kg, 2kg, 5kg, 10kg, 20kg, 50kg, 100kg, 200kg
Effective Force Measurement Range	0.1–100% FS (Full Scale)
Force Measurement Error	≤±0.3%
Force Repeatability Error	≤±0.2%
Displacement Resolution	0.1μm
Displacement Error	±0.01mm
Tensile Space	200mm
Compression Space	200mm
Platen Diameter	60mm
Platen Parallelism	≤0.05mm
Speed Range	0.01–500mm/min
Drive Mechanism	Servo motor + ball screw + linear guide rail
Control Method	PC software control
Dimensions	450 × 380 × 750mm
Weight	Approx. 100kg
Power Supply	AC 220V, 400W, 50Hz
