Needleless Electrospinning Machine Nanofiber Fabrication Detector Needle-free Electrostatic Spinning Tester Spin Fiber Device

Large Image : Needleless Electrospinning Machine Nanofiber Fabrication Detector Needle-free Electrostatic Spinning Tester Spin Fiber Device

Product Details:

Place of Origin:	Hunan, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$1,000

Contact Now

Needleless Electrospinning Machine Nanofiber Fabrication Detector Needle-free Electrostatic Spinning Tester Spin Fiber Device

Description

Weight (KG):

130

Voltage:

220 V

Warranty:

1 Year

Machine Type:

Needleless Electrospinning Machine

Highlight:

needleless electrospinning machine nanofiber fabrication

electrostatic spinning tester fiber device

needle-free electrospinning lab test machine

Products Description

Needleless Electrospinning Machine Nanofiber Fabrication Detector Needle-free Electrostatic Spinning Tester Spin Fiber Device

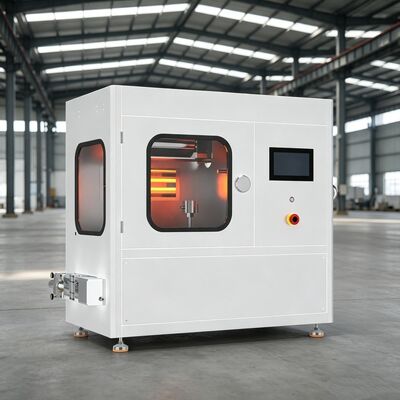

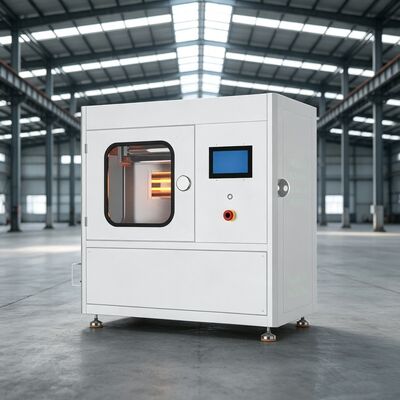

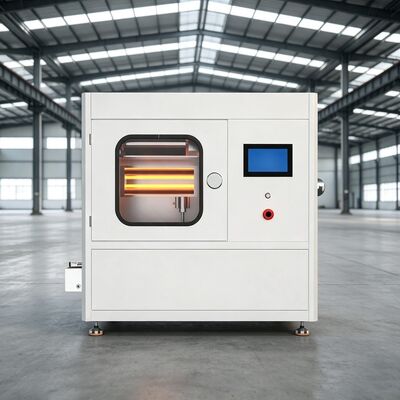

Brief Introduction This electrospinning machine is a device designed to produce polymer nanofibers using electrospinning technology. It primarily consists of a liquid supply system, a spinneret, a high-voltage power supply, and a collection system.

Needleless Electrospinning Machine Nanofiber Fabrication Detector Needle-free Electrostatic Spinning Tester Spin Fiber Device

Detailed Introduction This electrospinning machine is a device designed to produce polymer nanofibers using electrospinning technology. It primarily consists of a liquid supply system, a spinneret, a high-voltage power supply, and a collection system. The liquid supply system utilizes a professional-grade syringe pump for research applications, capable of delivering a continuous and stable flow. The feed rate is adjustable to accommodate the requirements of various spinning solutions. It offers stable pushing force and high-precision control over the liquid feed rate. The standard spinneret is a conventional needle, available in various gauges. It is mounted on an insulated bracket capable of automatic reciprocating motion parallel to the collector, effectively enhancing spinning uniformity. We can also customize coaxial spinnerets to produce core-shell or hollow fibers based on customer requirements, or provide optional multi-spinneret setups to increase production efficiency. The high-voltage power supply offers continuously adjustable output (0–30 kV), ensuring a stable electric field for prolonged electrospinning operations. The standard collection unit is a rotating drum collector with adjustable speed; the drum diameter can be customized. Adjusting the rotation speed allows for effective control over fiber alignment. Custom collection systems—such as XY-axis collectors, mesh collectors, or rotating cage collectors—are also available to meet specific customer needs. Needleless Electrospinning Machine Nanofiber Fabrication Detector Needle-free Electrostatic Spinning Tester Spin Fiber Device

Needleless Electrospinning Machine Nanofiber Fabrication Detector Needle-free Electrostatic Spinning Tester Spin Fiber Device

Specification

Technical Parameters

Category	Item	Specification
Power Supply	AC 220V, 50Hz
Total Power	1.6 kW
High-Voltage Power Supply	Output Voltage	30 kV
High-Voltage Power Supply	Max. Current	1 mA
Temperature & Humidity Control	Heating Method	Carbon fiber infrared heating
Temperature & Humidity Control	Max. Temperature	80°C
Temperature & Humidity Control	Max. Heating Power	1.2 kW
Temperature & Humidity Control	Humidity Control	30%–80% RH
Temperature & Humidity Control	Sensor Accuracy	Temperature: -40–80°C (±0.3°C)Humidity: 0–99.9% RH (±3% RH)
Syringe Pump	Syringe Capacity	50 mL
Syringe Pump	Flow Rate Range	0.005–40 mL/min
Collector	Drum Collector	Ø100 × 250 mm
Dimensions	1000 × 600 × 900 mm
Weight	130 kg
