Nanofiber High-Pressure Electrospinning Machine Electrostatic Spinning Tester Spin Fiber Test Equipment Spinnable Polymer Meter

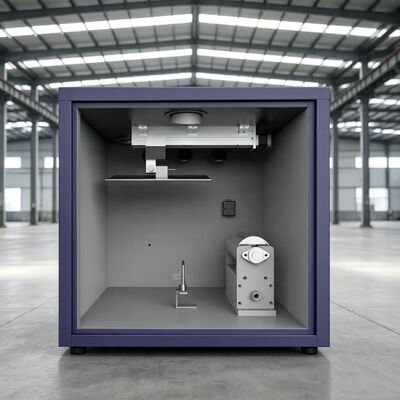

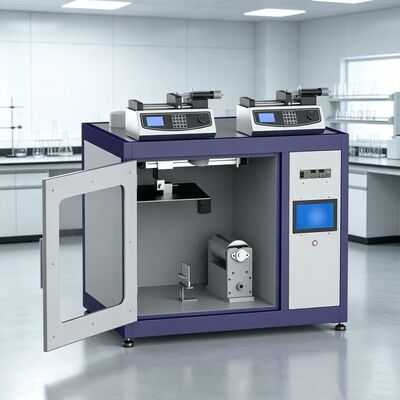

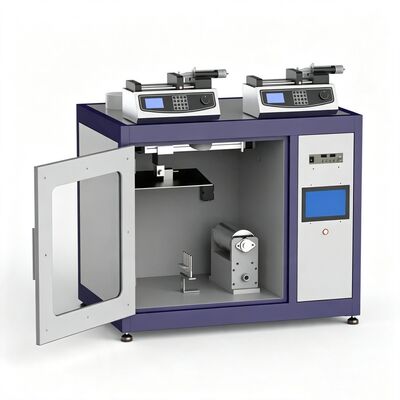

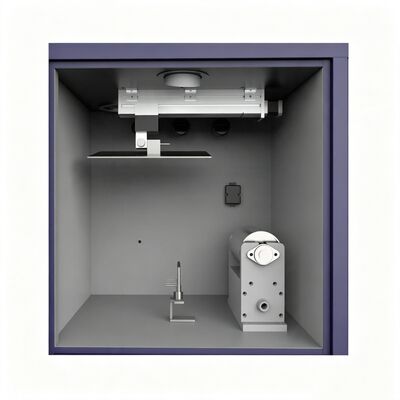

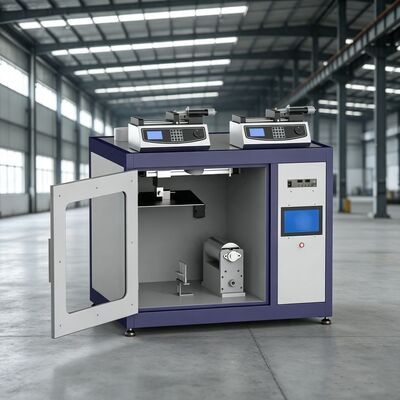

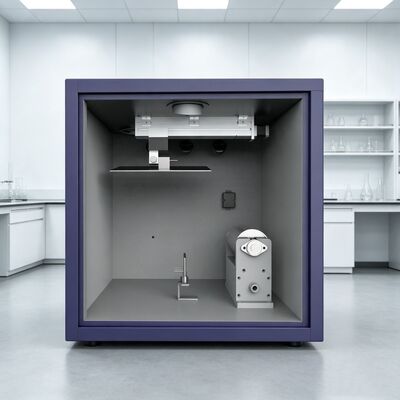

Large Image : Nanofiber High-Pressure Electrospinning Machine Electrostatic Spinning Tester Spin Fiber Test Equipment Spinnable Polymer Meter

Product Details:

Place of Origin:	Hunan, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$1,000

Contact Now

Nanofiber High-Pressure Electrospinning Machine Electrostatic Spinning Tester Spin Fiber Test Equipment Spinnable Polymer Meter

Description

Weight (KG):

130

Voltage:

220 V

Warranty:

1 Year

Machine Type:

Nanofiber Electrospinning Machine

Highlight:

nanofiber electrospinning machine with warranty

high-pressure electrostatic spinning tester

polymer fiber test equipment

Products Description

Nanofiber High-Pressure Electrospinning Machine Electrostatic Spinning Tester Spin Fiber Test Equipment Spinnable Polymer Meter

Brief IntroductionThe high-voltage electrospinning machine for nanofibers features a multi-nozzle spinning head, with the number of nozzles being selectable. The support structure is adjustable to achieve the optimal spinning distance and produce non-woven fabrics of varying widths. The high-voltage power supply provides a stable, long-term electric field, with an operating range of 0–30 kV.

Nanofiber High-Pressure Electrospinning Machine Electrostatic Spinning Tester Spin Fiber Test Equipment Spinnable Polymer Meter

Detailed IntroductionOur high-voltage electrospinning machine utilizes electrospinning technology to produce ultrafine fibers by spraying polymer solutions or melts within a strong electric field. It features a multi-nozzle spinning head with a selectable number of nozzles. The support structure is adjustable to ensure the optimal spinning distance and to produce non-woven fabrics of different widths. The high-voltage power supply delivers a stable, long-term electric field, operating within the 0–30 kV range.Compared to traditional laboratory electrospinning equipment, this system offers superior integration, controllability, and consistency, while delivering high efficiency and a highly integrated design.

Nanofiber High-Pressure Electrospinning Machine Electrostatic Spinning Tester Spin Fiber Test Equipment Spinnable Polymer Meter

Specification

Technical Parameters

Category	Item	Specification
Power Supply Voltage	AC 220V, 50Hz
Total Power	2.5 kW
High-Voltage Power Supply	Input Voltage	0–30 kV
High-Voltage Power Supply	Maximum Current	0.5 mA
Heating Source	Heating Method	Infrared heating tube
Heating Source	Maximum Temperature	Substrate temperature up to 60°C
Heating Source	Maximum Heating Power	1000 W
Syringe Pump (2 sets)	Syringe Capacity	2.5 mL – 60 mL
Syringe Pump (2 sets)	Flow Rate Range	2.779 μL/min – 72.24 mL/min
Collector	Roller Type	200 mm × φ100, 25, 12, 7, 6.0, 2.0 mm; selectable sizesActuator: DC motor; Mandrel speed: 300–6000 rpm; for electrospinning
Laboratory Nozzle	5-nozzle linear array spinneret	Various nozzle specifications available; selectable inner and outer diameters

Our Advantages
