ASTMF382 ASTMD7774 Electronic Bending Fatigue Testing Machine Bend Cyclic Endurance Detector Flexion Durability Tester

Large Image : ASTMF382 ASTMD7774 Electronic Bending Fatigue Testing Machine Bend Cyclic Endurance Detector Flexion Durability Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Model Number:	LR-AD107

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ASTMF382 ASTMD7774 Electronic Bending Fatigue Testing Machine Bend Cyclic Endurance Detector Flexion Durability Tester

Description

Platens Size:

Resolution:

Type:

Electronic Bending Fatigue Testing Machine

Input Voltage:

220 V

Highlight:

ASTMF382 electronic bending fatigue tester

ASTMD7774 cyclic endurance detector

flexion durability testing machine

Products Description

ASTMF382 ASTMD7774 Electronic Bending Fatigue Testing Machine Bend Cyclic Endurance Detector Flexion Durability Tester

Complies ASTM F382 (Metallic Bone Plates) and ASTM D7774 (Flexural Fatigue of Plastics)

ASTMF382 ASTMD7774 Electronic Bending Fatigue Testing Machine Bend Cyclic Endurance Detector Flexion Durability Tester

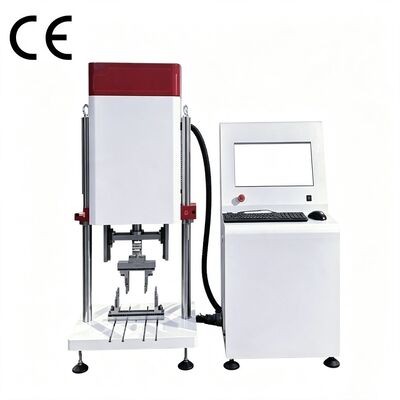

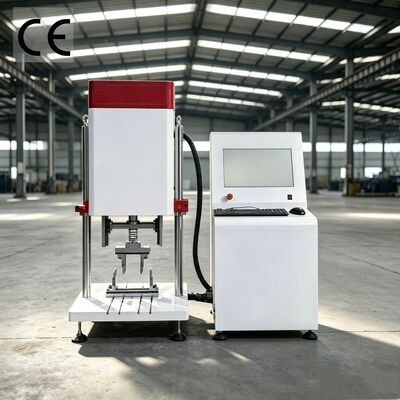

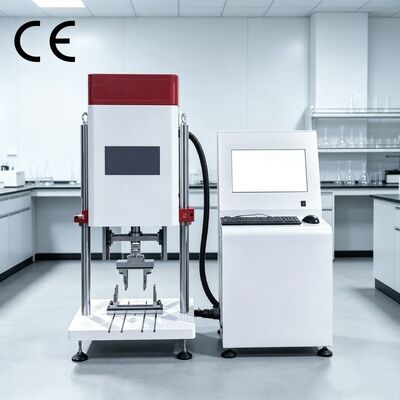

Equipment Overview This bending fatigue testing machine consists of a main unit, a control system, a computer with software, and testing fixtures. The main frame features a structure comprising dual columns, dual guide rails, and a movable crosshead; a dynamic loading mechanism—centered around a servo-electric cylinder—is mounted at the top, while a high-precision dynamic load cell is connected beneath the crosshead. The software system runs on Windows and is highly integrated with the control hardware, combining data acquisition, display, curve plotting, and data processing capabilities to support both dynamic and static testing.

ASTMF382 ASTMD7774 Electronic Bending Fatigue Testing Machine Bend Cyclic Endurance Detector Flexion Durability Tester

Functions and Applications This machine is primarily used for four-point bending fatigue testing of metallic bone plates and plastic plates. It allows for preset fatigue cycle counts, automatically stopping upon completion of the specified cycles or in the event of specimen failure or fracture. It supports a maximum dynamic/static test force of 5 kN, accommodates various loading waveforms (such as sine, square, and trapezoidal waves), and meets the requirement for a 10 Hz testing frequency.

ASTMF382 ASTMD7774 Electronic Bending Fatigue Testing Machine Bend Cyclic Endurance Detector Flexion Durability Tester

Specification

Main Technical Specifications

Item	Specification
Product Model	LR-AD107
Maximum Static Load	±5000N
Maximum Continuous Load	±4000N
Load Measurement Range	1% ~ 100% of maximum load
Load Accuracy	Within ±0.5%
Test Frequency	0.1 ~ 20Hz
Displacement Stroke	±50mm
Displacement Accuracy	Within ±0.5% of indicated value
Test Height	Approx. 500mm
Test Width	Approx. 350mm
Control Waveform	Sine wave, triangular wave, square wave, ramp wave, sine block wave, etc.
Load Ratio	R=0.1
Fatigue Cycles	≥10⁷ cycles
Test Platform Size	350×500mm
Sampling Frequency	≥1KHz
Overall Dimensions (Excluding Control Cabinet)	630×500×1290mm
Weight	Approx. 350kg
Power Supply	AC 220V 50Hz, 1.5Kw
