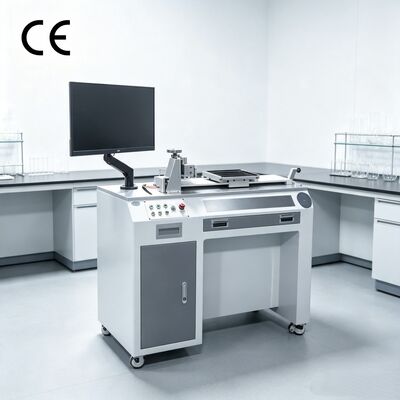

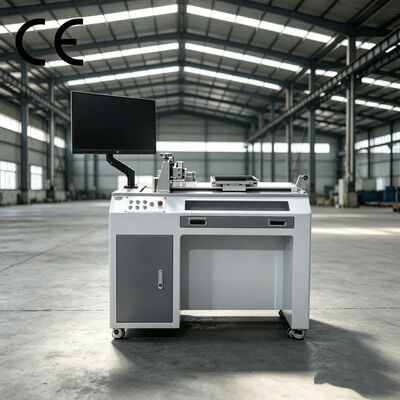

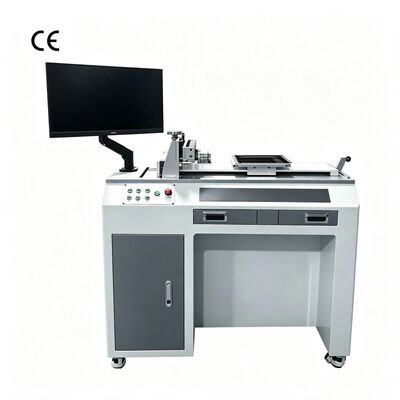

Multi-Station Solar Cell Peel Tester PV Cell Stripping Test Machine Photovoltaic Ribbon Adhesion Detector Strip Strength Device

Large Image : Multi-Station Solar Cell Peel Tester PV Cell Stripping Test Machine Photovoltaic Ribbon Adhesion Detector Strip Strength Device

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$1,000

Contact Now

Multi-Station Solar Cell Peel Tester PV Cell Stripping Test Machine Photovoltaic Ribbon Adhesion Detector Strip Strength Device

Description

Instrument Type:	Solar Cell Peel Tester	Color:	/
Customized Support:	OEM, ODM, OBM	Material:	/
Power:	/	Warranty:	1 Year
Highlight:	solar cell peel tester machine , PV cell stripping test device , photovoltaic ribbon adhesion detector

Products Description

Multi-Station Solar Cell Peel Tester PV Cell Stripping Test Machine Photovoltaic Ribbon Adhesion Detector Strip Strength Device

Introduction This machine is primarily designed for peeling tinned ribbons from photovoltaic (PV) cells. It is compatible with a wide range of cell configurations, including 1BB through 28BB designs. By performing simultaneous peeling and data processing across multiple stations, the machine not only saves time but also significantly reduces labor costs. It features specialized fixtures for both the cells and the ribbons, ensuring ease of operation and adjustment. During multi-busbar testing, the sensors and ribbon clamps remain stationary while the cell moves with its fixture to complete the test, thereby ensuring superior testing accuracy.

Multi-Station Solar Cell Peel Tester PV Cell Stripping Test Machine Photovoltaic Ribbon Adhesion Detector Strip Strength Device

Specification

Main Technical Specifications

Item	Specification
Model	LR-AD109
Number of Stations	10 (Max. 28 channels)
Maximum Test Force	5kg
Effective Force Measuring Range	0.2%–100% FS
Test Force Accuracy	±0.3%
Displacement Stroke Range	10–400mm adjustable
Displacement Accuracy	0.01mm
Displacement Speed	0.1–1000mm/min adjustable
Test Force Units	Switchable: g, kg, N, KN, lb
Effective Test Width	400×400mm
Peeling Fixtures	10 sets of tensile jaws, quick clamping by pressing
Hard Compression Support Fixture	Rigid metal flat surface
Control Mode	PC software control
Overall Dimensions	1150×500×1100mm
Weight	Approx. 150kg
Power Supply	AC 220V 50Hz, 450W

Our Advantages
