Product Details:
|
| Type: | Testing Machine | Accuracy Class: | High Accuracy |
|---|---|---|---|
| Accuracy: | / | Application: | Auto Testing, Laboratory Testing, Lab Testing |
| Customized Support: | OEM, ODM, OBM | Power: | --- |
| Protection Class: | Ip56 | Voltage: | 220 V, Other |
| Warranty: | 1 Year | Instrument Weight: | 35 Kg |
| Highlight: | Basket Mill pigment dispersing machine,Vertical resin sand mill,1.25L coating bead grinder |
||

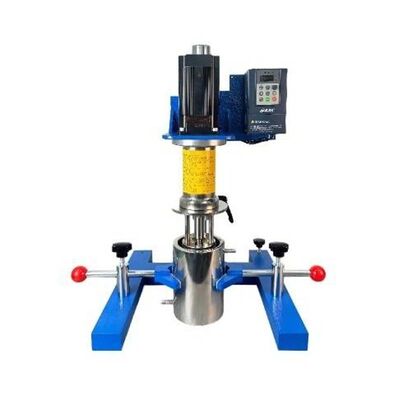

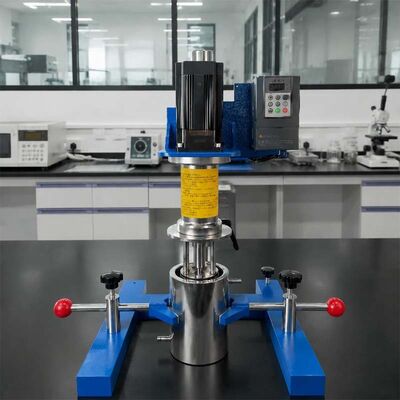

Basket Mill Pigment Resin Dispersing Milling Machine Vertical 1.25L Liquids Agitator Sand Mill Coating Bead Grinding Equipment
Basket Mill
The basket type sand mill is a high-performance product newly developed by our company, which integrates dispersion function and sand grinding function. The dispersion and sand grinding processes are completed by one machine in a container. It has functions of dispersion, refinement, and sand grinding, with high efficiency, good sand grinding fineness, and easy cleaning. Widely used for the dispersion, mixing, and grinding of materials in liquids used in experiments in factories, research institutions, universities, and medical institutions. The laboratory basket sand mill produced by our company has been widely used in fields such as pigments, inks, food, coatings, biology, physics and chemistry, cosmetics product development, and experimentation.
Basket Mill Pigment Resin Dispersing Milling Machine Vertical 1.25L Liquids Agitator Sand Mill Coating Bead Grinding Equipment
Technical Parameter
|
Motor power |
370W 220V |
|
Speed regulation range |
130-3000r/min |
|
Grinding basket size |
Ø 80 x 60 mm |
|
Dispersion disk diameter |
Ø 60mm |
|
Contact material material |
SUS304 |
|
Lift stroke |
260 mm |
|
Recommended use of zirconium beads |
Ø1.4-1.6mm (120g) |
|
Bucket volume |
1.2L |
|
External dimensions |
450*420*530mm |
|
Instrument weight |
35 kg |
![]()
![]()
![]()
