Product Overview

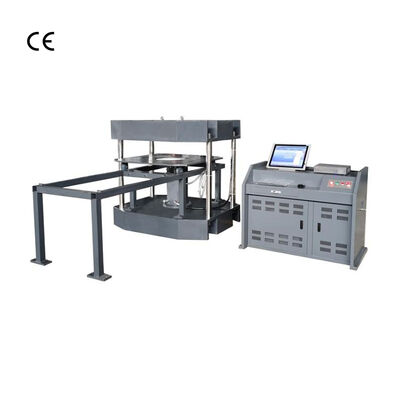

This testing machine is designed to evaluate the load-bearing capacity (specifically residual deformation and test load) of manhole covers made from various materials. It supports closed-loop control modes such as constant-rate loading and constant-rate deformation, and enables the automatic determination of technical performance parameters.

The machine utilizes a hydraulic power source and electro-hydraulic servo control technology, integrated with a computer-based data acquisition and processing system. It comprises four main components: the main testing frame, the hydraulic power source, the measurement and control system, and the testing fixtures. It features real-time display and control of load, time, and test curves, as well as a peak test force hold function. The accuracy of the testing machine exceeds Class 1 standards.

Test Standards

The testing machine and its accessories comply with the requirements of the following standards: GB/T23858-2009, GB/T26537-2011, CJ/T211-2005, CJ/T121-2000, CJ/T3012, CJ/T511-2017, GB/T2611, and GB/T16826.

Servo Controlled Manhole Covers Load-bearing Capacity Tester Covers Compression Testing Machine Pressure Testing Equipment

Technical Parameters
