Vibration Compaction Molding Machine Stabilized Material Vibratory Specimen Forming Equipment Road Construction Test Compactor

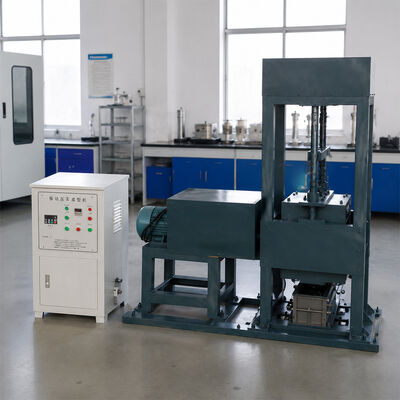

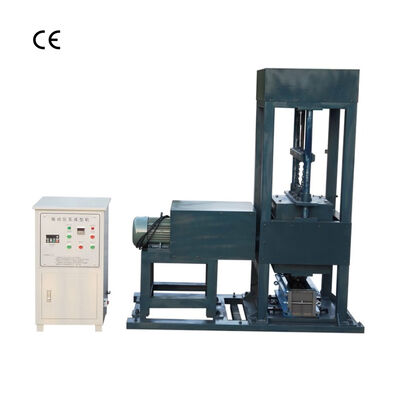

Large Image : Vibration Compaction Molding Machine Stabilized Material Vibratory Specimen Forming Equipment Road Construction Test Compactor

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Vibration Compaction Molding Machine Stabilized Material Vibratory Specimen Forming Equipment Road Construction Test Compactor

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	±0.5%	Application:	Auto Testing, Lab Testing, Laboratory Testing
Customized Support:	OEM, ODM, OBM, Software Reengineering	Power:	/
Protection Class:	IP57	Voltage:	220 V, Other
Warranty:	1 Year
Highlight:	vibration compaction molding machine , stabilized material vibratory specimen equipment , road construction test compactor

Vibration Compaction Molding Machine Stabilized Material Vibratory Specimen Forming Equipment Road Construction Test Compactor

Product Overview

The Vibratory Compaction Molding Machine is specialized equipment designed and manufactured to meet the technical requirements for specimen preparation—specifically using the vibration method for semi-rigid base course materials—as outlined in the Test Methods of Materials Stabilized with Inorganic Binders for Highway Engineering (JTG E51-2009). It is used to fabricate various specimens from inorganic binder-stabilized granular materials, including cylindrical specimens (for testing unconfined compressive strength, indirect tensile strength, and compressive resilient modulus) and beam specimens (for testing thermal shrinkage coefficients, drying shrinkage coefficients, flexural strength, and flexural resilient modulus).

Vibration Compaction Molding Machine Stabilized Material Vibratory Specimen Forming Equipment Road Construction Test Compactor

Technical Parameters

Static pressure	1900 N (adjustable)
Excitation force	6800–6900 N (adjustable)
Vibration frequency	28–30 Hz (adjustable)
Vibration time	90–120 s (for maximum dry density); 70–90 s (for specimen molding)
Cylindrical specimen molds
Steel molds	Inner diameter 152 mm, height 170 mm, wall thickness 10 mm Inner diameter 150 mm, height 230 mm, wall thickness 10 mm
Steel mold collar	Inner diameter 152 mm, height 50 mm, wall thickness 10 mm
Overall dimensions	Length × Width × Height 1760 × 760 × 1750 (mm)
Machine weight	900 kg
Power supply	AC 380 V (three-phase four-wire system with neutral wire)
