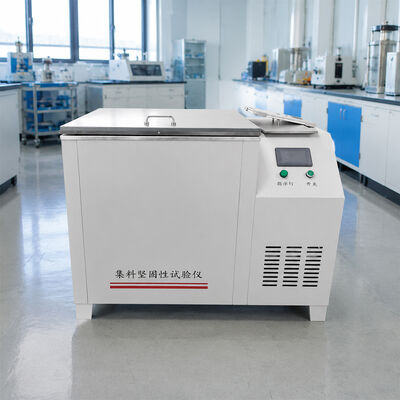

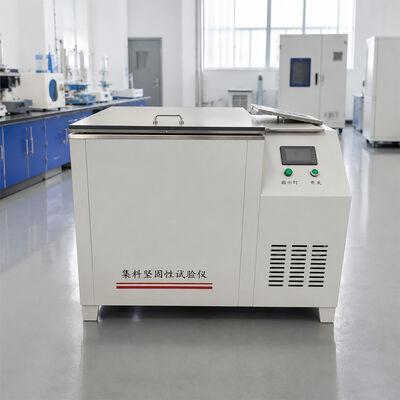

Aggregate Soundness Testing Machine Crushed Stone Gravel Stability Tester Sodium Sulfate Immersion Drying Cycle Test Equipment

Large Image : Aggregate Soundness Testing Machine Crushed Stone Gravel Stability Tester Sodium Sulfate Immersion Drying Cycle Test Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Aggregate Soundness Testing Machine Crushed Stone Gravel Stability Tester Sodium Sulfate Immersion Drying Cycle Test Equipment

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	±0.5%	Application:	Auto Testing, Lab Testing, Laboratory Testing
Customized Support:	OEM, ODM, OBM, Software Reengineering	Power:	/
Protection Class:	IP57	Voltage:	220 V, Other
Warranty:	1 Year
Highlight:	Aggregate Soundness Testing Machine sodium sulfate , Crushed Stone Stability Tester drying cycle , Gravel Test Equipment lab durability

Aggregate Soundness Testing Machine Crushed Stone Gravel Stability Tester Sodium Sulfate Immersion Drying Cycle Test Equipment

Product Overview

The aggregate soundness testing apparatus complies with the JTG 3432-2024 standard. It is used to determine the soundness (or stability) of crushed stone or gravel by subjecting the material to repeated cycles of immersion in a saturated sodium sulfate solution and subsequent drying, thereby testing its ability to withstand the crystallization pressure of sodium sulfate without significant damage or loss of strength.

Aggregate Soundness Testing Machine Crushed Stone Gravel Stability Tester Sodium Sulfate Immersion Drying Cycle Test Equipment

Technical Parameters

Container	55L stainless steel container
Coarse aggregate tripod baskets	Basket outer diameter 100mm, height 150mm, aperture 2.36mm (3 pcs) Basket outer diameter 150mm, height 150mm, aperture 2.36mm (1 pc) Basket outer diameter 250mm, height 250mm, aperture 2.36mm (1 pc)
Fine aggregate tripod baskets	Outer diameter 70mm, height 70mm, aperture 0.15 / 0.315 / 0.6 / 1.18, stainless steel (1 pc each)
Power Supply Voltage	220V
Heating Power	1500W
Refrigeration Power	1000W
Maintained Temperature Range	21±1℃
Lifting Cycles	25 times
Control Function	Automatic heating, constant temperature, cycle times and holding time control & data recording
Weight	100kg
Overall Dimension	1100640940 (mm)
