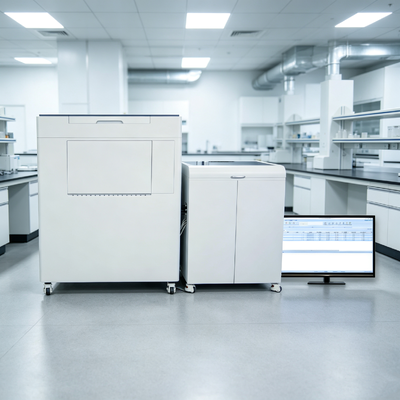

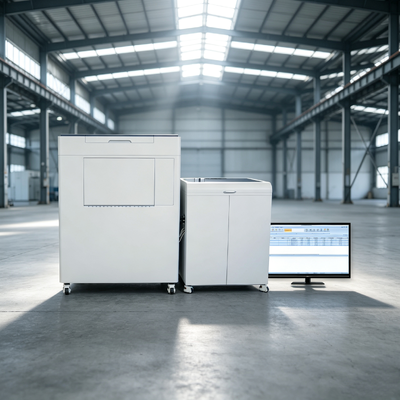

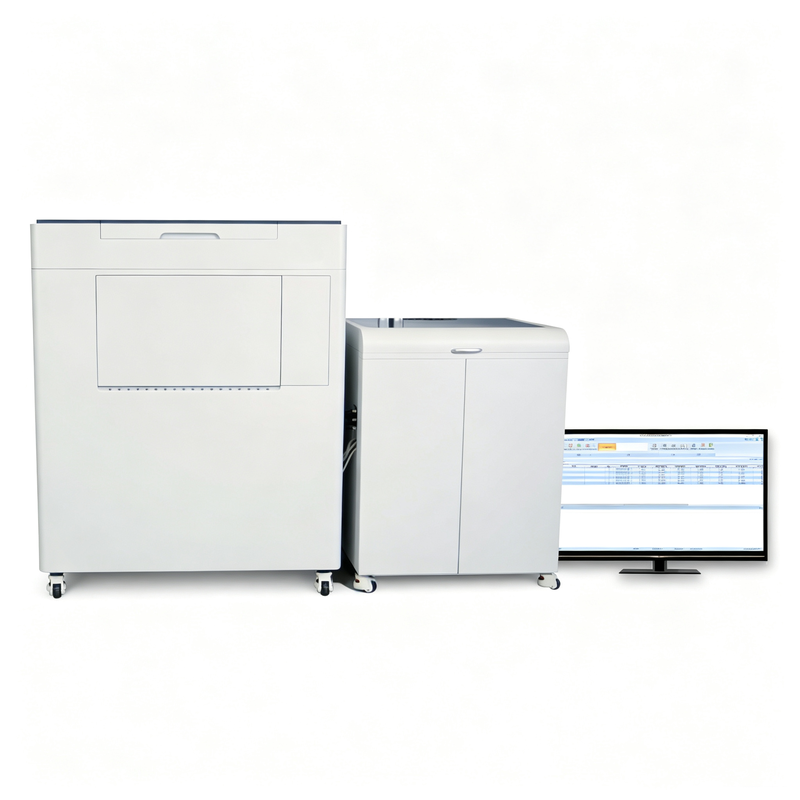

Fully Automatic Cement Composition Measurement System Cementitious Material Tester Cement Constituent Quantitative Analyzer

Large Image : Fully Automatic Cement Composition Measurement System Cementitious Material Tester Cement Constituent Quantitative Analyzer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Fully Automatic Cement Composition Measurement System Cementitious Material Tester Cement Constituent Quantitative Analyzer

Description

Type:	Cement Composition Measurement System	Accuracy Class:	High Accuracy
Accuracy:	/	Customized Support:	OEM, ODM, OBM
Power:	/	Protection Class:	/
Voltage:	220 V, Other	Warranty:	1 Year
Highlight:	Fully automatic cement composition analyzer , Cementitious material tester with warranty , Lab cement constituent quantitative analyzer

Products Description

Fully Automatic Cement Composition Measurement System Cementitious Material Tester Cement Constituent Quantitative Analyzer

Scope of Application Used by industrial and mining enterprises, third-party testing agencies, universities, and research institutions to determine the content of fly ash, pozzolanic admixtures, and granulated blast-furnace slag in general-purpose Portland cement.

Fully Automatic Cement Composition Measurement System Cementitious Material Tester Cement Constituent Quantitative Analyzer

Applicable Standard GB/T 12960-2019 "Quantitative determination of cement constituents"

Fully Automatic Cement Composition Measurement System Cementitious Material Tester Cement Constituent Quantitative Analyzer

Product Advantages Fully complies with the national standard GB/T 12960-2019 "Quantitative determination of cement constituents"; High level of automation: processes such as constant-temperature sample stirring, solution filtration, beaker cleaning, residue drying, and weighing are all performed automatically by the instrument, requiring no manual intervention; Stable and reliable test results with excellent repeatability; High testing efficiency, capable of measuring 8 samples simultaneously; High level of intelligence, featuring automatic fault diagnosis and reminders for solution replenishment; Strong environmental adaptability; suitable for use within an ambient temperature range of 16°C to 30°C; Simple and convenient operation with a clear, intuitive display of the testing process; Equipped with a network interface to enable data uploading and remote monitoring.

Fully Automatic Cement Composition Measurement System Cementitious Material Tester Cement Constituent Quantitative Analyzer

Specification

Technical Specifications

Applicable Standard	GB/T 12960-2019 "Quantitative Determination of Cement Constituents"
Analysis Time	Approx. 150 min
Sample Mass	0.5 ± 0.02 g (fly ash testing); 0.3 ± 0.01 g (slag testing)
Sample Grades	8
Accuracy	Within the permissible range for standard samples
Repeatability Limit	<0.8% (slag / pozzolanic / fly ash ≤20%)<1.0% (20% < slag / pozzolanic / fly ash ≤30%)<1.2% (pozzolanic / fly ash >30%)<1.5% (slag >30%)
Drying Temperature	105°C ± 5°C
Main Unit Dimensions	1060 × 710 × 1300 mm
Reagent Tank Dimensions	710 × 610 × 900 mm
Total Weight	<150 kg
Main Unit Power	<2 kW
Power Supply	220 VAC / 50 Hz / 10 A
