Benchtop Manual Hydraulic Pressure Source Hand Operated Hydraulic Calibration Pump Liquid Pressure Device Fluid-power Tester

Large Image : Benchtop Manual Hydraulic Pressure Source Hand Operated Hydraulic Calibration Pump Liquid Pressure Device Fluid-power Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Benchtop Manual Hydraulic Pressure Source Hand Operated Hydraulic Calibration Pump Liquid Pressure Device Fluid-power Tester

Description

Type:	Benchtop Manual Hydraulic Pressure Source	Accuracy Class:	High Accuracy
Accuracy:	/	Customized Support:	OEM, ODM, OBM
Power:	/	Protection Class:	/
Voltage:	220 V, Other	Warranty:	1 Year
Highlight:	manual hydraulic calibration pump , hand operated hydraulic pressure source , benchtop hydraulic fluid-power tester

Products Description

Benchtop Manual Hydraulic Pressure Source Hand Operated Hydraulic Calibration Pump Liquid Pressure Device Fluid-power Tester

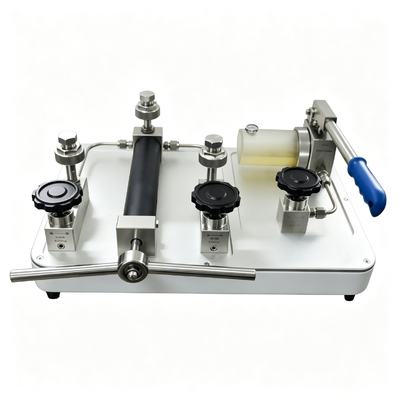

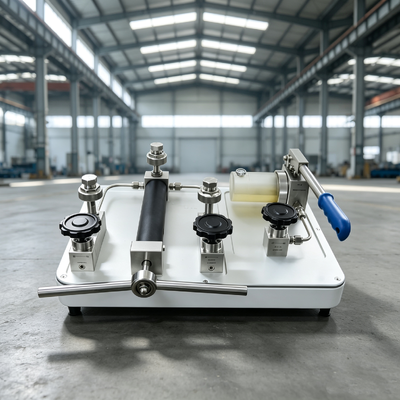

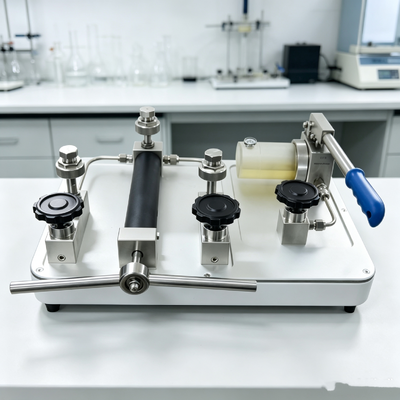

Product Introduction This product is a benchtop manual hydraulic pressure source constructed from stainless steel. Its wide-base design ensures stability on laboratory workbenches, making it ideal for lab use. It features a transparent oil reservoir that allows for easy monitoring of internal contamination and can be conveniently removed for cleaning. A high-leverage pump handle combined with a sliding-block mechanism minimizes the effort required for pressurization. Three standard M20×1.5 quick-connect ports allow for tool-free connection to the device under test. The circulating oil circuit design prevents clogging, ensuring trouble-free operation.

Benchtop Manual Hydraulic Pressure Source Hand Operated Hydraulic Calibration Pump Liquid Pressure Device Fluid-power Tester

Features Constructed from stainless steel Simple operation and easy cleaning High-leverage pump handle and sliding-block mechanism reduce pressurization effort Effortless and rapid pressure generation with excellent pressure stability

Benchtop Manual Hydraulic Pressure Source Hand Operated Hydraulic Calibration Pump Liquid Pressure Device Fluid-power Tester

Specification

Technical Specifications

No.	Item	Technical Specifications
1	Pressure Generation Range	0–60 MPa, expandable up to 100 MPa
2	Optional Working Medium	HS710: No.25 transformer oil
2	Optional Working Medium		HS710A: Pure water / Distilled water
3	Minimum Adjustment Increment	0.1 kPa
4	Output Port Specification	M20×1.5 female thread
5	Overall Dimensions	430 mm × 330 mm × 170 mm
6	Net Machine Weight	15 kg

Our Advantages
