ISO 1524 Single Groove Grind Gauge 0-15/25/50/100/150μm Fineness Gauge Grindometer Single Channel Hegman Plate for Paint Inks

Large Image : ISO 1524 Single Groove Grind Gauge 0-15/25/50/100/150μm Fineness Gauge Grindometer Single Channel Hegman Plate for Paint Inks

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ISO 1524 Single Groove Grind Gauge 0-15/25/50/100/150μm Fineness Gauge Grindometer Single Channel Hegman Plate for Paint Inks

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220 V, Other
Warranty:	1 Year	Standard:	GB/T 1724,6753.1,13217.3,13217.5 ISO 1524
Highlight:	ISO 1524 single groove grind gauge , Hegman plate for paint inks , fineness gauge 0-150μm

ISO 1524 Single Groove Grind Gauge 0-15/25/50/100/150μm Fineness Gauge Grindometer Single Channel Hegman Plate for Paint Inks

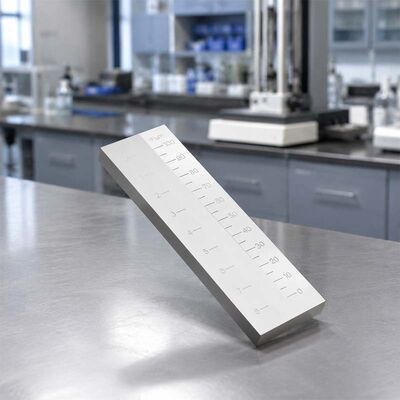

Single-Channel Grind Gauge

Widely used in industries such as paint, coatings, inks, food, pharmaceuticals, etc. A fine-grained plate is a flat steel block with grooves on the surface, and the depth of the grooves ranges from maximum at one end to zero at the other. On the steel block, there is a scale unit engraved to indicate the depth of the groove, in order to read the size of the particle value.

Standard

GB/T 1724,6753.1,13217.3,13217.5

ISO 1524

ISO 1524 Single Groove Grind Gauge 0-15/25/50/100/150μm Fineness Gauge Grindometer Single Channel Hegman Plate for Paint Inks

Technical Parameter

Order Number	No. of grooves	Groove width	Range	Scale units
LR 2410	1	12 mm	0-15	μm
LR 2411	1	12 mm	0-25/8-6	μm /Hegman
LR 2412	1	12 mm	0-50/8-4	μm /Hegman
LR 2413	1	12 mm	0-100/8-0	μm /Hegman
LR 2414	1	12 mm	0-150	μm

External dimensions: 170 x 50 x 15 mm; Shipping weight: 1.5 kg
