ISO 1524 Ink Double-Channel Grind Gauge 0-15/25/50/100μm High Precision Scraper Ink Fineness Meter Printing Coat Fineness Tester

ISO 1524 Ink Double-Channel Grind Gauge 0-15/25/50/100μm High Precision Scraper Ink Fineness Meter Printing Ink Fineness Tester

Ink Double-Channel Grind Gauge

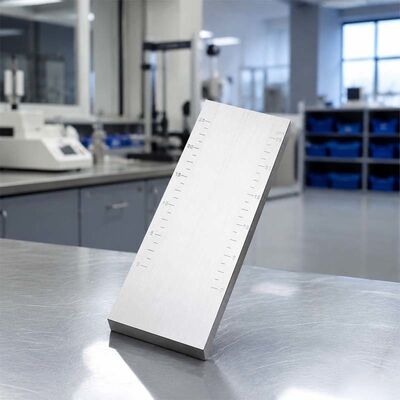

Widely used in industries such as paint, coatings, inks, food, pharmaceuticals, etc. A fine-grained plate is a flat steel block with grooves on the surface, and the depth of the grooves ranges from maximum at one end to zero at the other. On the steel block, there is a scale unit engraved to indicate the depth of the groove, in order to read the size of the particle value.

Standard

GB/T 1724,6753.1,13217.3,13217.5

ISO 1524

ISO 1524 Ink Double-Channel Grind Gauge 0-15/25/50/100μm High Precision Scraper Ink Fineness Meter Printing Ink Fineness Tester

Technical Parameter

External dimensions: 240 * 85 * 25 mm; Shipping weight: 5 kg

Shipping List

Grind Gauge, scraper, instruction
