ASTMD7835 DINEN13300 Surface Film Wash Resistance Tester ISO11998 Coating Wear Resisting Testing Machine Washability Test Device
Description
Type:
Dual-Sample Free Calcium Oxide Measurement System
Accuracy Class:
High Accuracy
Accuracy:
/
Customized Support:
OEM, ODM, OBM
Power:
/
Protection Class:
/
Voltage:
220 V, Other
Warranty:
1 Year
Highlight:
ASTMD7835 surface film wash tester
,
DINEN13300 coating wear testing machine
,
ISO11998 washability test device
ASTMD7835 DINEN13300 Surface Film Wash Resistance Tester ISO11998 Coating Wear Resisting Testing Machine Washability Test Device
Product Introduction
The scrub resistance of a coated surface (coating) needs to be assessed using brushes, sponges, or other methods. Therefore, a precision instrument is needed to generate repeatable, controlled conditions to simulate the daily abrasion patterns faced by the coating.
BGD's scrub resistance tester effectively assesses the scrubbability of coatings and properties affecting their abrasion resistance, and can also evaluate detergent performance using reproducible testing methods.

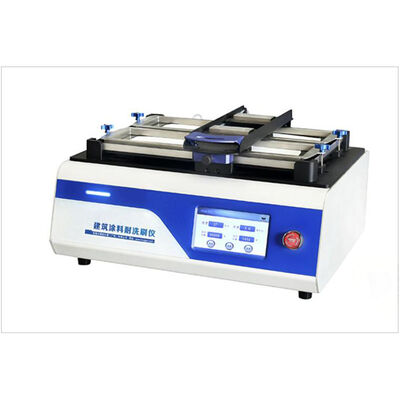

The BGD 526 is a newly designed, fully touchscreen-operated scrub resistance tester that is compatible with various domestic and international testing standards. These instruments are robust, reliable, and highly functional, capable of testing the abrasion resistance, wash resistance, brush resistance, and impedance properties of a wide range of materials, including pigments, paints, inks, coatings, leather, wood, plastics, printed materials, fabrics, etc.
Compliant with standards
GB/T 9266 Architectural Coatings - Determination of Scrub Resistance
GB/T 9780 Architectural Coatings - Test Method for Stain Resistance (Drafted by our company)
GB/T 31410 Paints and Varnishes - Evaluation of Wet Scrub Resistance and Cleanability of Coatings
ISO 11998 Paints and Varnishes - Determination of Wet Scrub Resistance and Cleanability of Coatings
ASTM D 2486 Test Method for Washability of Wall Coatings
ASTM D 3450 Standard Test Method for Washability of Interior Wall Coatings
ASTM D 4213 Standard Test Method for Determination of Scrub Resistance of Coatings by Abrasion Loss Method
ASTMD7835-19 Standard Test Method for Determination of Solvent Resistance of Organic Coatings by Mechanical Abrasion Tester
DIN EN 13300 Coatings and Varnishes: Water-based Coating Materials and Systems for Interior Walls and Ceilings
ASTMD7835 DINEN13300 Surface Film Wash Resistance Tester ISO11998 Coating Wear Resisting Testing Machine Washability Test Device
Performance Features
Adjustable operating speed to meet various standards
Five-digit counter; automatically stops after the set number of cycles.

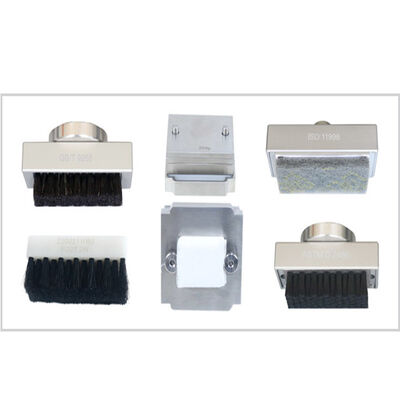

Compatible with multiple friction heads to meet ISO, ASTM, DIN, and GB standards.

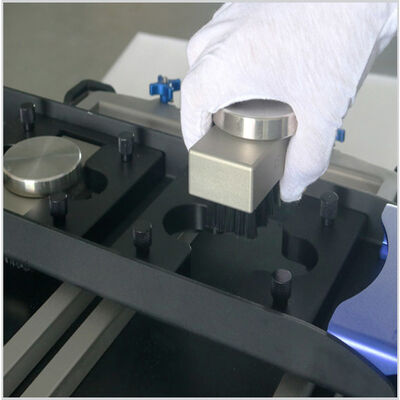

Extremely convenient and quick loading and unloading of test specimens and replacement of friction heads.
Unaffected by voltage or frequency.
Push-rod design for stable and uniform operating speed.

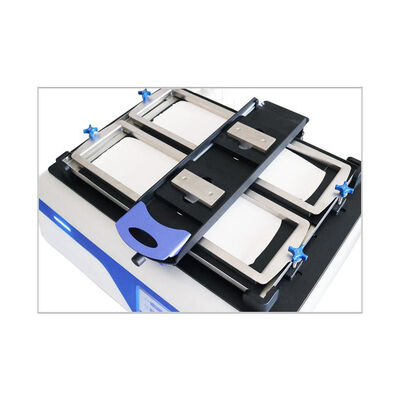

Dual-track design allows for simultaneous testing of two samples.
Robust design for long-lasting durability.
The entire machine is made of anodized aluminum, ensuring stable testing and highly repeatable results, even at the fastest friction speeds.
The solution (washing medium) flows onto the brush via a peristaltic pump on the side of the instrument, and the dripping rate of the washing medium can be precisely adjusted.
