DCJ-II ASTM D2794 DuPont Impact Tester Materials Firmness Testing Machine JIS K5400 Coatings Deformation Resistance Test Device

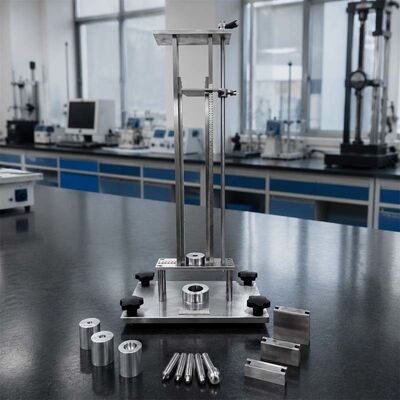

Large Image : DCJ-II ASTM D2794 DuPont Impact Tester Materials Firmness Testing Machine JIS K5400 Coatings Deformation Resistance Test Device

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$958

Contact Now

DCJ-II ASTM D2794 DuPont Impact Tester Materials Firmness Testing Machine JIS K5400 Coatings Deformation Resistance Test Device

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220 V, Other
Warranty:	1 Year	Heavy Hammer Weight:	300 G, 500 G, 1000 G
Highlight:	DCJ-II ASTM D2794 impact tester , DuPont coatings deformation resistance tester , JIS K5400 materials firmness testing machine

DCJ-II ASTM D2794 DuPont Impact Tester Materials Firmness Testing Machine JIS K5400 Coatings Deformation Resistance Test Device

DuPont Impact Tester

The DCJ-II DuPont impactor is suitable for testing the firmness of materials such as plastic, ceramics, acrylic, fiberglass, and test coatings. The principle is to adjust a steel ball of a specified weight to a certain height, allowing it to fall freely, strike the sample, and observe the degree of damage.

Standard:

CNS 10756 "General Inspection Method for Coatings"

JIS-K5400 "General Test Methods for Coatings"

ASTM-D2794 "Standard Test Method for Resistance of Organic Coatings to Rapid Deformation"

DCJ-II ASTM D2794 DuPont Impact Tester Materials Firmness Testing Machine JIS K5400 Coatings Deformation Resistance Test Device

Technical Parameter

Order Number	LR 2699 DuPont impactor (500mm)	LR 2699/1 DuPont impactor (1000mm)
Falling height of heavy hammer	50-500mm (with each 50mm as a level, adjustable freely)	50-1000mm (with each 50mm as a level, adjustable freely)
Heavy hammer weight	300 g, 500 g, 1000 g
Punch radius	Five types: 1/2 ", 1/4", 1/8 ", 1/16", and 3/16 "
Mold seat radius	Five types: 1/2 ", 1/4", 1/8 ", 1/16", and 3/16 "
Instrument info.	390250840mm (28 KG)	3802401340mm (34 KG)
Shipping info.	4703301020mm (39 KG)	4502701400mm (49 KG)
