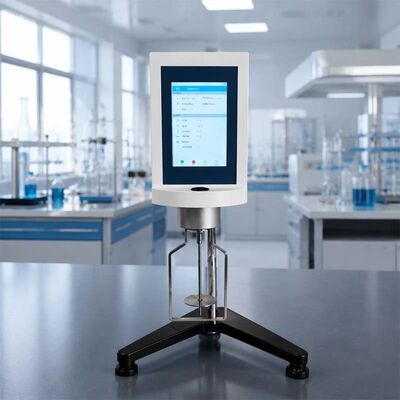

NDJ-HVS2 High Viscosity Digital Viscometer
1. 5-inch high-definition touch screen, with a simple and clear operating interface, making it easy for new users to operate
2. Metal shell, strong anti-interference ability, different from plastic parts used in the same industry
3. PT100 high-precision temperature probe (standard)
4. Imported chip processors for faster data processing
5. Adopting high-strength small shafts, durable and long-lasting
6. Equipped with a 232 printing interface, it can be directly connected to a computer or micro printer to print data
7. Timer function, targeting thixotropic non Newtonian fluids, can ensure obtaining good consistency data
8. Adopting the latest front mounted level, it is intuitive and convenient to adjust horizontally without the need for standing
9. Wireless Bluetooth connection to mobile phones, achieving interconnection between phones. All operations are completed on the phone, and curves, real-time viscosity, temperature, etc. can be viewed on the phone
10. Real time data can be permanently and infinitely saved through the cloud data app, making it convenient for customers to compare
11. Suitable for high viscosity liquids such as ink, glue, latex, solvent based adhesives, etc
Standard:GB/T 2794,ISO 2884-2, 2555,ASTM D 2196
NDJ-HVS2 ASTM D2196 Digital Rotational Viscosimeter ISO 2884 ISO 2555 Viscosity Tester Lab Rotary Viscometer Viscosity Equipment
Technical Parameter
|
Input voltage
|
110-240V AC 50/60Hz
|
|
Measuring range
|
20-40 million mPa.s
|
|
Rotor specifications
|
R2~R7#
|
|
Rotor speed
|
0.1,0.3,0.5,0.6,1,1.5,2,3, 5,6,
|
|
10,12,20,30,50,60,100,200 rpm
|
|
|
Measurement accuracy
|
±1%
|
|
Required sample quantity
|
500 ml
|
|
External dimensions
|
390×390×280 mm
|
