Equipment Overview

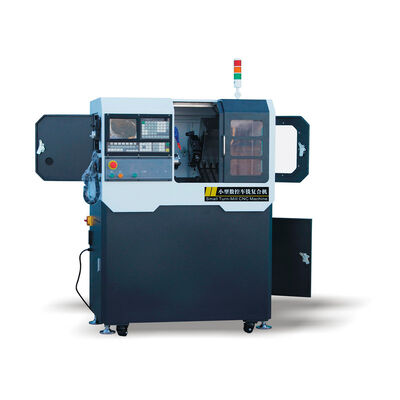

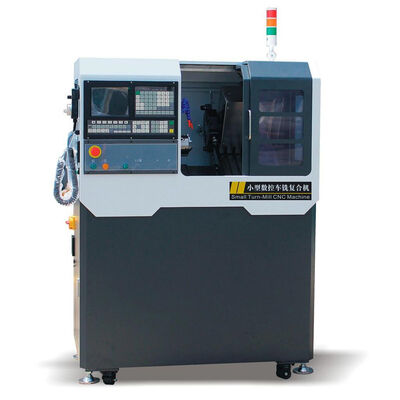

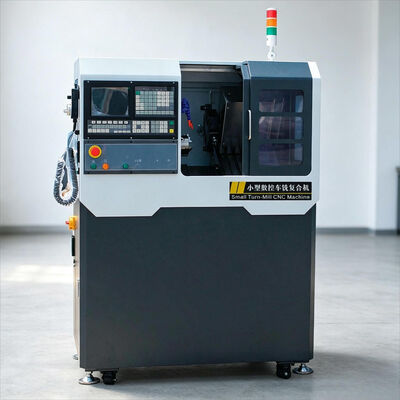

The CX200 is a compact turn-mill machine tool that integrates turning, milling, drilling, and tapping capabilities into a single unit. It achieves multi-process machining with a single workpiece setup, utilizing a dual-spindle structure (milling spindle and turning spindle) and an 8-station automatic tool changer (comprising 4 turning tool stations, 2 milling tool stations, and 2 center-drilling stations).

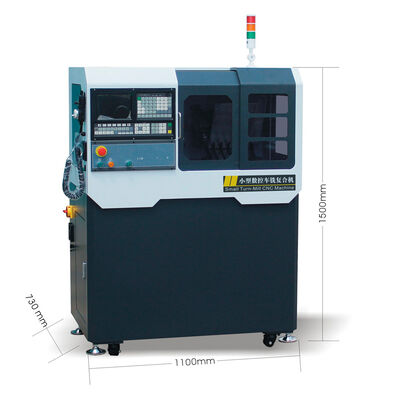

Key advantages include a compact footprint, quiet operation, lightweight design, and easy portability (facilitated by casters at the base), alongside stable performance, low failure rates, low maintenance costs, and high rigidity.
It features an industrial-grade CNC control system, servo motors on the X, Y, and Z axes, and operates on a single-phase 220V power supply. The machine is equipped with interlocked safety guards, a cast-iron slant bed structure, linear guideways, ball screws, and a workpiece coolant circulation system.
Product Features
1.Cast-iron slant-bed structure ensuring high rigidity and stable precision;
2.Industrial-grade control system supporting multi-axis simultaneous control for flexible manufacturing;
3.Precision linear guideways for X, Y, and Z axes, driven by high-performance servo motors;
4.Operates on 220V power; features a fully enclosed sheet-metal housing and an integrated workpiece cooling system;
5.Dual-spindle design with live tooling and an automatic tool changer enables simultaneous execution of turning, milling, drilling, and tapping operations;
6.Ideal for vocational schools and university maker/innovation labs, facilitating programming instruction and hands-on training in multi-axis composite machining;
7.Supports standard G-code and programming via various CAM software (e.g., MasterCAM, UG);
9.Maintains a clean, tidy workspace free from oil stains and odors; promotes an eco-friendly, low-carbon environment;
10. Affordable pricing and low instructional costs overcome the barrier of the high price tags associated with large-scale industrial multi-axis CNC machines, thereby increasing opportunities for students to gain hands-on practical experience.
Primary Applications
The CX200 compact turn-mill machine tool is primarily designed for use in vocational schools and university maker/innovation laboratories. It supports teaching and hands-on training in multi-axis CNC programming and machining, as well as the production of small parts. It is suitable for machining materials such as aluminum alloys, copper, plastics, iron, and mold steels.
Compactly Lab Turn-Mill Tester Lab Turn-Mill Smally Test Device Compact Lab Turn-Mill Test Machine Small Lab Turn-Mill Tester
Technical Specifications
Parameter
Specification
Key Performance Features
1. Fully enclosed structure with transparent acrylic panels;
2. features a 30-degree cast iron slant bed and an 8-station automatic tool changing system;
3. equipped with high-precision H-grade linear guideways and ground ball screws;
4. powered by a 980TB industrial-grade CNC system;
5. supports standard G-code programming (including M-codes and S-codes) and is compatible with FANUC and Mitsubishi G-codes as well as various CAD/CAM software (MasterCAM, UG, SolidWorks, Fusion360, Hypermill, Powermill, etc.).
