Product Details:
|
| Type: | Testing Machine | Accuracy Class: | High Accuracy |
|---|---|---|---|
| Accuracy: | / | Application: | Auto Testing |
| Customized Support: | OEM, ODM, OBM | Power: | --- |
| Protection Class: | Ip56 | Voltage: | 220 V |
| Warranty: | 1 Year | Weight: | 125 Kg |
| Highlight: | low temperature dehumidifying dryer,rapid dehumidification machine,coal samples drying equipment |
||

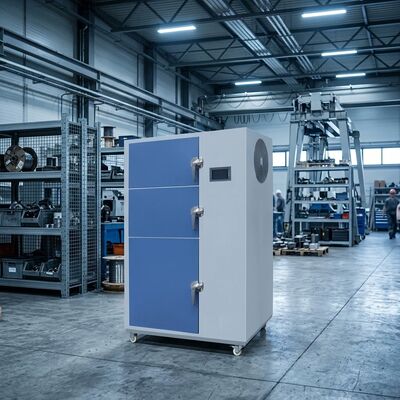

Low Temperature Dehumidifying Dryer Rapid Dehumidification Machine Fast Low Temp Drying Equipment Coal Samples Prepare Device
Scope of Application
Primarily suitable for the rapid dehumidification and drying of small sample quantities in industrial sectors such as coal, electric power, metallurgy, chemicals, and solid/hazardous waste management.
Compliance with Standards
GB/T 212 "Proximate analysis of coal"
GB/T 211 "Determination of total moisture in coal"
GB/T 483 "General rules for analytical and testing methods of coal"
GB 474 "Method for preparation of coal samples"
Technical Features
1. The unit extracts a large amount of thermal energy from the air, consuming electricity only to power the compressor for air and heat transport. Consequently, it significantly reduces power consumption compared to conventional methods while delivering the same drying capacity;
2. It employs a low-temperature hot-air penetration method for rapid drying, substantially lowering operating costs for the user;
3. Upon completion of the drying process, coal samples automatically undergo an air-equilibration stage, after which they can be directly processed for pulverization;
4. The system operates without emitting harmful gases, ensuring eco-friendliness;
5. Key components—such as the compressor and four-way valve—are sourced from renowned manufacturers, and the casing is constructed from corrosion-resistant 304 stainless steel, ensuring high product quality and an extended service life;
6. It meets the drying requirements for a wide range of materials across various applications.

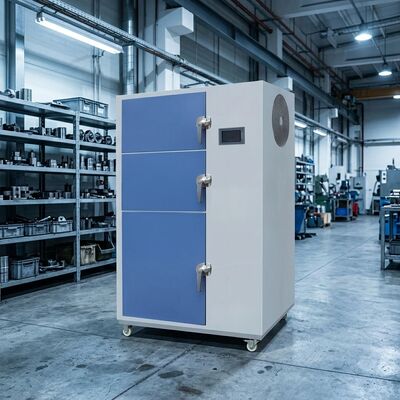

Low Temperature Dehumidifying Dryer Rapid Dehumidification Machine Fast Low Temp Drying Equipment Coal Samples Prepare Device
Technical Specification
|
Temperature Control Range |
RT+10~80℃ |
|
Temperature Control Accuracy |
±2℃ |
|
Number of Drying Units |
3 layers |
|
Average Dehumidification Capacity |
4.5kg/h |
|
Air Flow Range |
1200~1800m³/h |
|
Power Consumption |
≤3.1kW |
|
Auxiliary Heating Power |
1kW |
|
Power Supply Voltage |
220V±22V / 50Hz |
|
Noise Level |
≤65dB(A) |
|
Protection Class |
IPX4 |
|
Heat Exchange Medium |
R134a |
|
Overall Dimension (mm) |
1270×760×1960 |
|
Total Machine Weight |
125 kg |
![]()
![]()
![]()
![]()
