EN12201 Pneumatic Drop Hammer Impact Testing Machine Falling Weight Impact Test Equipment Secondary Impact Prevention Tester

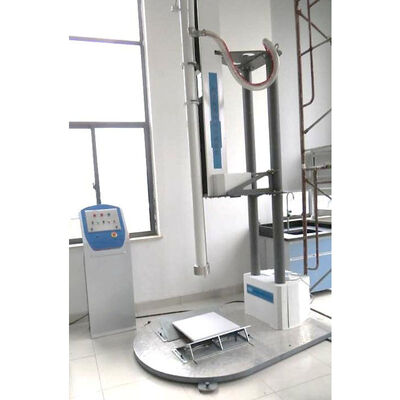

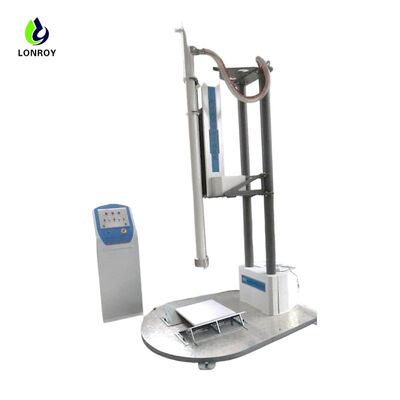

Large Image : EN12201 Pneumatic Drop Hammer Impact Testing Machine Falling Weight Impact Test Equipment Secondary Impact Prevention Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

EN12201 Pneumatic Drop Hammer Impact Testing Machine Falling Weight Impact Test Equipment Secondary Impact Prevention Tester

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Auto Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220 V
Warranty:	1 Year	Power Supply:	220V 50Hz
Highlight:	EN12201 pneumatic drop hammer tester , falling weight impact test equipment , secondary impact prevention testing machine

EN12201 Drop Hammer Impact Testing Machine Falling Weight Impact Resistance Test Equipment Striking Impact Resistance Tester

Product Overview

The LONROY impact testing machine is specifically designed for impact resistance testing and is an essential specialized testing equipment for inspection institutions and production units. It mainly consists of a workbench, a secondary impact prevention mechanism, a hammer. The customized model designed by LONROY can conduct impact tests on specimens with a diameter of less than 500mm.

The machine can run horizontally automatically, used for automatically aligning the sample and adjusting the position. The impact part can also move up and down to ensure the impact state. Both horizontal and longitudinal movements are automatically controlled. The drop hammer and the secondary impact prevention mechanism adopt an air-pneumatic system.

Execution standard

EN 12201-3:2024

EN12201 Drop Hammer Impact Testing Machine Falling Weight Impact Resistance Test Equipment Striking Impact Resistance Tester

Technical Specification

1. Application Scope	φ600 (φ800)
2. Drop Hammer Impact Height	2.5 m
3. Drop Hammer Shape	d90
4. Drop Hammer Weight	1 kg
5. Hammer Lifting Device	Vacuum adsorption (or pneumatic)
6. Secondary Impact Prevention Device	Vacuum adsorption (or pneumatic)
7. Power Supply	220V 50Hz
