Product Details:
|
| Type: | Testing Machine | Accuracy Class: | High Accuracy |
|---|---|---|---|
| Accuracy: | / | Application: | Auto Testing |
| Customized Support: | OEM, ODM, OBM | Power: | --- |
| Protection Class: | Ip56 | Voltage: | 220 V |
| Warranty: | 1 Year | Weight: | 18Kg |
| Highlight: | ASTM F 2338 leak testing equipment,flexible packaging bags sealing tester,non-destructive package leak testing machine |
||

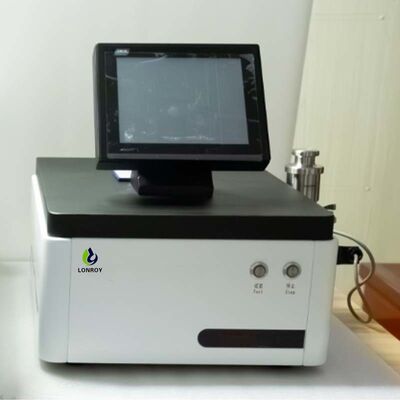

ASTM F 2338 Non-Destructive Leak System Flexible Packaging Bags Sealing Performance Testing Machine Package Leak Test Equipment
Product Introduction
Suitable for sealing testing of flexible packaging bags, blister packs, oral solid bottles, glass bottles, tin milk powder cans, electronic devices, medical devices, and other products used in food packaging. The instrument adopts the principle of vacuum attenuation testing and completely non-destructive testing technology, which meets the ASTM testing method. High precision testing techniques can detect leaks in micro holes. Widely used in food packaging enterprises, food enterprises, quality inspection agencies and other units.
Execution Standards
ASTM F2338:Standard Test Method for Non-destructive Detection of Leaks in Packages by Vacuum Decay Method'
GB/T15171:Test Method for Sealing Performance of Packages
YY/T 0681.18:Test Methods for Packaging of Sterile Medical Devices 18 Partial vacuum Decay method
Technical Feature
1. The 7-inch large LCD touch screen provides intuitive operation and real-time display of experimental process curves.
2. Corresponding test chambers can be selected for different detection samples, and users can easily replace them.
3. It has good detection adaptability and is suitable for detecting small leaks, as well as identifying samples with large leaks, and providing a judgment of qualified and unqualified.
4. One click operation, automatic replacement of test vacuum, automatic end of test, automatic blowback unloading.
5. Non destructive testing methods are used to detect leaks in Shengyou products, and after testing, the samples are undamaged and do not affect normal use.
6. Low testing cost, non subjective judgment of test results, no need for manual participation, ensuring data accuracy and objectivity.
7. Adopting imported top brand vacuum pneumatic components to ensure high testing accuracy.
8. The system program has ISP online upgrade function and can provide personalized services.
9. By using high-speed processing chips, the operating speed is greatly improved.
10. It has sufficient password protection function and is divided into four levels of permission management. Each operator has a unique login name and password combination to enter the instrument for operation.
11. Customize permission control, flexibly establish various levels of permissions, and strictly limit the executors of various operations.
Testing Principles

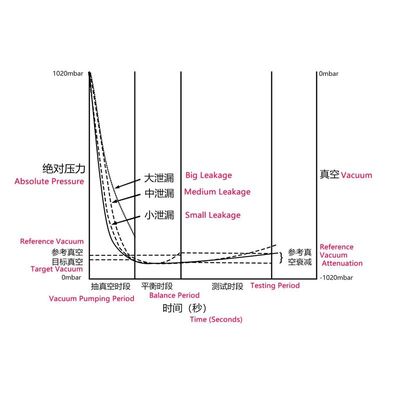

According to the requirements of ASTM F2338 standard, a dual cycle testing system is used. The specific testing process involves connecting the host to a specially designed testing chamber to accommodate the object to be tested. The instrument evacuates the testing chamber, creating a pressure difference between the inside and outside of the packaging. Under the pressure, the gas inside the packaging diffuses into the testing chamber through the leakage hole. The relationship between the sensor detection time and pressure changes is compared with the standard value (established mathematical model) to determine whether the sample is leaking.
ASTM F 2338 Non-Destructive Leak System Flexible Packaging Bags Sealing Performance Testing Machine Package Leak Test Equipment
Technical Parameter
|
Vacuum range |
0-100KPa |
|
Test accuracy |
Level 0.5 |
|
Detection resolution |
0.01Pa/s |
|
Test time |
≤ 60s |
|
Equipment operation |
Comes with HMI |
|
Sample material |
Hard or Soft |
|
Detection principle |
Vacuum attenuation method / non-destructive testing |
|
Available user accounts |
50 (usernames support numbers, letters and special symbols) |
|
Data interface |
RS232 (compatible with user LIMS system connection) |
|
Host overall dimension(LWH) |
410mm×365mm×420mm |
|
Net weight |
18Kg |
|
Ambient Temperature |
20℃-30℃ |
|
Relative Humidity |
Max. 80%, non-condensing |
|
Working Power Supply |
220V 50Hz |
![]()
![]()
![]()
