ASTM D5731 ISO 22005 Rock Crushing Strength Point Load Test Machine Portable Rock Point Load Meter Rock Strength Test Equipment

Large Image : ASTM D5731 ISO 22005 Rock Crushing Strength Point Load Test Machine Portable Rock Point Load Meter Rock Strength Test Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$500

Contact Now

ASTM D5731 ISO 22005 Rock Crushing Strength Point Load Test Machine Portable Rock Point Load Meter Rock Strength Test Equipment

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Auto Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220 V
Warranty:	1 Year	Working Temperature:	-20~45℃
Highlight:	portable rock point load meter , rock crushing strength test machine , ISO 22005 rock strength equipment

ASTM D5731 ISO 22005 Rock Crushing Strength Point Load Test Machine Portable Rock Point Load Meter Rock Strength Test Equipment

Product introduction

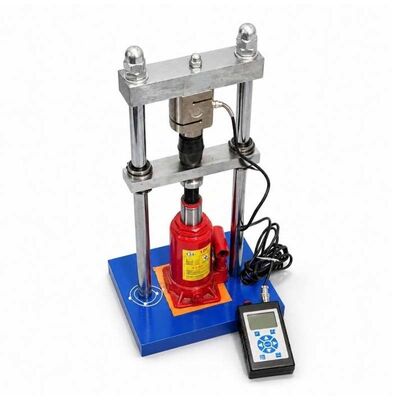

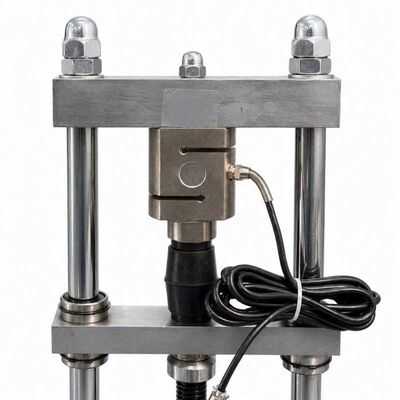

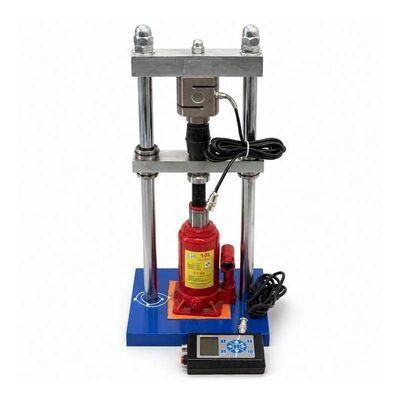

Point Load Tester (Rock Strength Testing Instrument)

The Point Load Tester is a portable device for rapid assessment of rock strength (ISRM standard). It measures the point load strength index by applying concentrated force to rock cores or irregular lumps. Ideal for field geotechnical surveys, mining, and slope stability analysis.

Key Features: Hydraulic/electric loading Auto-calculation of Corrosion-resistant frame ASTM D5731 & ISO 22005 compliant

ASTM D5731 ISO 22005 Rock Crushing Strength Point Load Test Machine Portable Rock Point Load Meter Rock Strength Test Equipment

Technical Specification

The rated bearing capacity of the sensor	100KN
Piston diameter	Φ32mm
Maximum stroke of piston	60mm
Maximum spacing between loading points	90mm
The maximum width of the allowable sample	90mm
Reading mode	LCD display, electronic peak memory
Force measurement error	≤1%F.S
Working temperature	-20~45℃
Power supply	9V square battery
