BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine

Large Image : BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$320

Contact Now

BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Auto Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220 V
Warranty:	1 Year	Impact Hammer Drop Height:	380 ± 5mm
Highlight:	BS 812 Aggregate Impact Value Tester , AIV Test Device for aggregates , Comprehensive Impact Value Testing Machine

BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine

Standards

BS 812 NF P18-574

Description

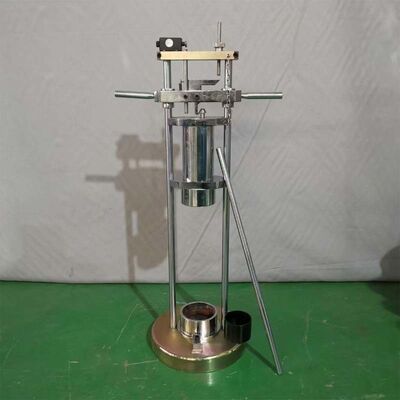

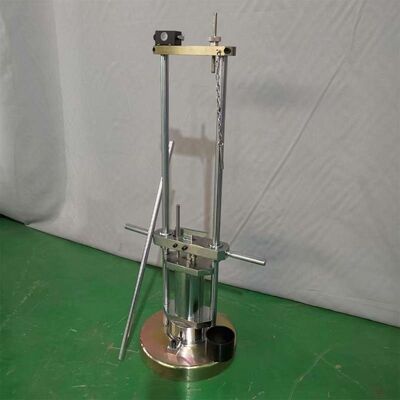

This machine is used to deter-mine the aggregate impact value(AIV) which provides a relative measure of the resistance of an aggregate to sudden shock or impact. The machine is robustly designed and made from corrosion- resistant steel. It is fitted with a counter to check the number of blows delivered to the sample and comes complete with two cylindrical measures (BS and NF) and a tamping rod.

BS 812 Aggregate Impact Value Tester AIV Test Device Aggregate Impact Value Apparatus Comprehensive Impact Value Testing Machine

Technical Specification

Measuring cylinder	inner diameter 76mm, inner height 51mm
A circular steel cylinder	with an inner diameter of 102mm
a wall thickness	of 3mm
The steel rod has a diameter	of 16mm
Impact hammer weight	13.75Kg+0.05Kg, lower cylinder diameter 100mm,
Impact hammer drop height	380 ± 5mm
