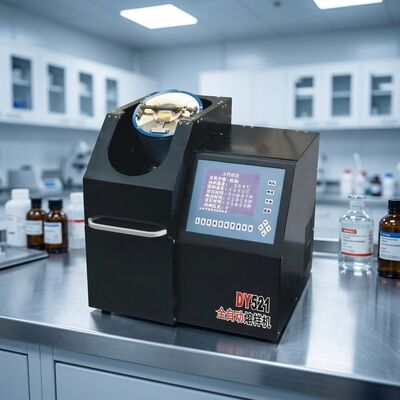

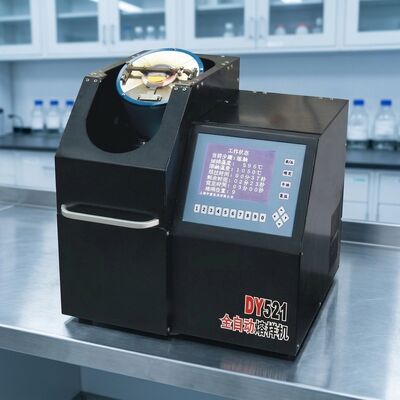

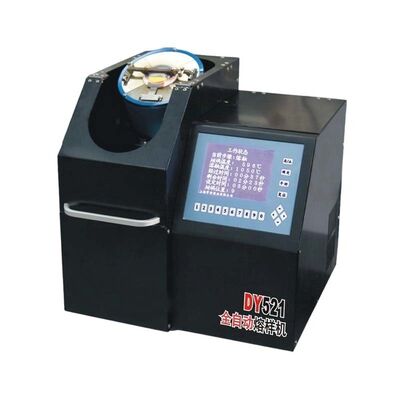

DY521  Fully Automatic Fusion Machine

The first fully automatic fusion machine in China even the filling of the fusion sample;

Revolutionary result reaching the new peak of technic of manufacturing fusion machine;

No fluid coolant required,no harm of electromagnetic radiation comparing with High Frequency induction;

Same throughput,half energy consumption comparing with High Frequency induction.

Instrument Overview

Specimens prepared via the glass fusion method eliminate effects related to particle size, mineralogy, and segregation, while also minimizing inter-element absorption and enhancement effects. This significantly improves analytical precision and accuracy, making it the optimal sample preparation method for X-ray fluorescence (XRF) analysis. Fusion is also an excellent sample preparation technique for refractory samples analyzed by ICP, AA, or wet chemical methods.

While the emergence and promotion by domestic manufacturers have led to increased adoption of fusion machines in China in recent years, the usage rate remains low compared to developed nations—primarily due to the poor quality and high cost of domestic models. The DY521 fully automatic fusion machine represents a revolutionary breakthrough in electric fusion technology, developed by our R&D team by building upon our existing models and benchmarking against similar international equipment; it features an automatic pouring function. Thanks to its superior performance and affordable price, it enables users who previously avoided fusion methods due to cost constraints to adopt this technology. The launch of the DY521 is set to accelerate the widespread adoption of the fusion preparation method, thereby elevating sample preparation standards in my country's analytical sector and generating significant economic benefits across various industries.

Features

Fully automatic – Even the filling of the fusion sample.

Superior accuracy – Completely independent heaters for crucible and mold for optimal temperature control and measure.

Homogenization – Crucible is rotated while inclined, efficient agitation and superior homogenization of the melt, in less time.

Smoothness – Fusing and molding are processed separately.

Superior reproducibility–Fully automatic, superior accuracy, homogenization and smoothness ensure the superior reproducibility of the sample; all samples are uniformly the same except for the differences in composition.

Productivity – Overlapped processing of two samples: up to 50% time savings vs. other machines.

Economical –Minimal heat dissipation: casing remains cool;uses only a regular electrical outlet (consumes less than a hair dryer). Elegant and compact design.Takes up less space in the laboratory.

User-friendly–Plug-and-play: installs in seconds. Virtually maintenance-free; easy component access.Real-time temperature display,Operates free of supervision.Easy loading of crucibles,molds and beakers.10 independent and user-customizable programs available.

Reliable – Made with an electrical Joule-effect .

Versatility –XRF, AA and ICP fusion machine: both disk and solution unitsincluded. Can also readily do peroxide or pyrosulfate fusions.

DY521 Fully Automatic Fusion Machine ICP Fusion Sample Filling Equipment Sample Fusion Instrument XRF Fusion Test Device

Technical Specification
