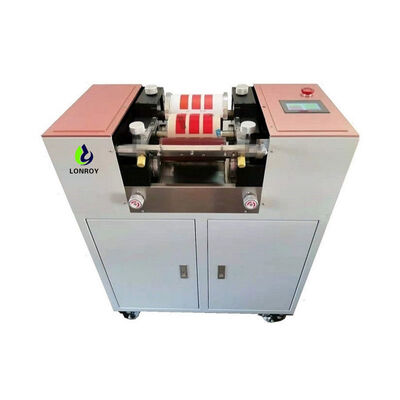

Online UV Dry Flexo Ink Color Display Proofer Flexographic Color Proofer LED UV Curing Flexo Proofing Machine Ink Color Tester

Large Image : Online UV Dry Flexo Ink Color Display Proofer Flexographic Color Proofer LED UV Curing Flexo Proofing Machine Ink Color Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Certification:	CE,ISO,ASTM,DPR,ROHS
Model Number:	LR-N003

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	7 work days
Payment Terms:	D/A,T/T,L/C,D/P
Supply Ability:	200

Contact Now

Online UV Dry Flexo Ink Color Display Proofer Flexographic Color Proofer LED UV Curing Flexo Proofing Machine Ink Color Tester

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Application:	Auto Testing	Customized Support:	OEM, ODM, OBM
Power:	---	Protection Class:	Ip56
Voltage:	220 V	Warranty:	1 Year
Net Weight Of Instrument:	130KG	Overall Dimensions (LWH):	400800950mm
Highlight:	UV dry flexo ink proofer , LED UV curing flexo proofing machine , flexographic color proofer with warranty

Online UV Dry Flexo Ink Color Display Proofer Flexographic Color Proofer LED UV Curing Flexo Proofing Machine Ink Color Tester

Introduction

Applicable objects: monochrome proofing (such as color matching, testing, etc.)

Unique features of the instrument

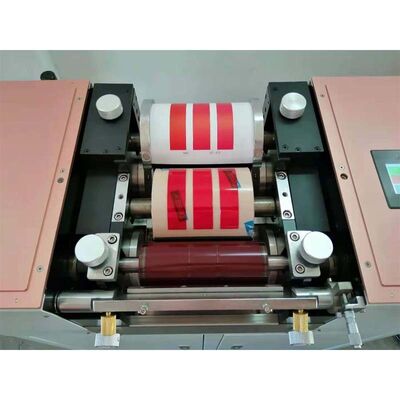

After the ceramic roller rotates the ink evenly, the printing material and the printing plate cylinder start and rotate synchronously for two weeks to complete the proofing work. The ceramic roller and the printing material cylinder operate synchronously with the printing plate cylinder to ensure the proofing quality.
Scraper, ceramic roller, plate drum, printing drum four structures can be individually adjusted around the pressure, flexible adjustment;
The screen roller and scraper are easy to disassemble and install
Large drum structure, printing material installation, plate installation and cleaning plate is simple and convenient.

Technical Specification

Input Power	220V, 50/60Hz
Rated Power	400W (UV-LED: 500W, Mercury UV Light: 2000W)
Ink Type	Dropper Ink
Proofing Material Thickness	0.01–2mm (Bendable Material)
Proofing Material Size	170*210mm
Printing Area	120*148mm
Plate Area	150*160mm
Plate Thickness	Dupont Flexible Plate: 1.14mm, Adhesive: 0.38mm
Plate Roller & Screen Roller Pressure	Adjustable within 2mm range with pressure scale indication
Plate Roller & Press Roller Pressure	Adjustable within 2mm range with pressure scale indication
Adjustable Printing Speed	0–80 m/min
Ceramic Roller Specification	(USA Standard) 70*210mm
Ceramic Roller Line Count	Standard 600LPI (Customizable: 70–1200LPI), BCM: 1.6–5.3
Applicable Inks	Flexographic Water-based Ink, UV Ink, Lithographic Ink, Letterpress Ink
Applicable Proofing Materials	Paper, Plastic Film, Non-woven Fabric, Napkin, Gold & Silver Card Paper, etc.
Overall Dimensions (LWH)	400800950mm
Net Weight of Instrument	130KG

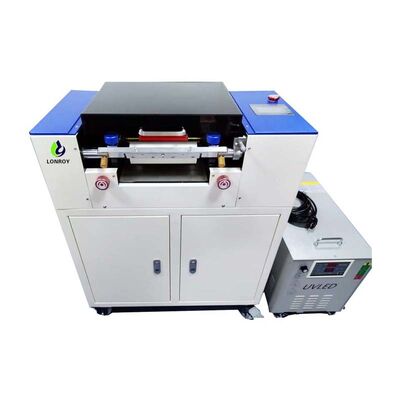

Optional Accessory	UV Curing & Drying Unit
Proofing Functions	Coating, Solid Color Printing, Dot Pattern Proofing
Blade Pressure System	Pneumatic control, bidirectional adjustable pressure balance; scraper constant pressure design ensures stable printing color repeatability and uniform coloring standard
