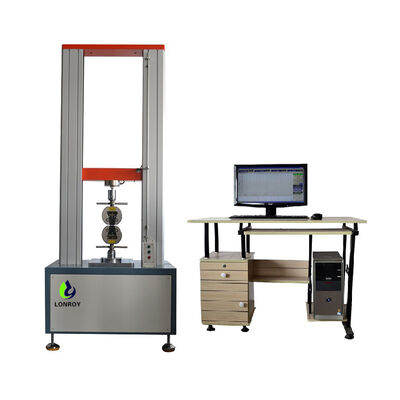

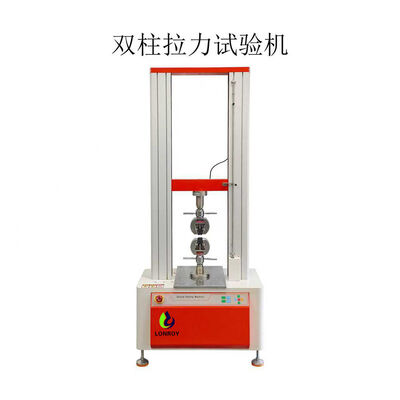

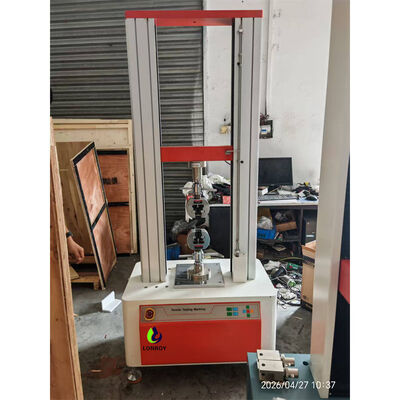

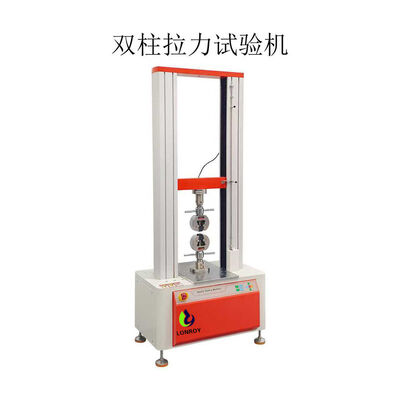

LONROY Universal Material Testing Machine UTM Material Tensile Compression Testing Equipment Universal Tensile Strength Tester

LONROY Universal Material Testing Machine UTM Material Tensile Compression Testing Equipment Universal Tensile Strength Tester

Main functions

Mainly applicable for testing of metal and non-metal materials, such as rubber, plastic, wires and cables, optical fibers and optical cables, safety belts, safety belts, leather and composite materials, plastic profiles, waterproof sheets, steel pipes, copper materials, profiles, spring steel, bearing steel, stainless steel (and other high-hardness steels), castings, steel plates, steel strips, and metal wire materials of various tests including tensile, compression, bending, shearing, peeling, tearing, two-point extension (requires an additional extensometer), etc.

This machine adopts an integrated mechanical and electronic design. It is mainly composed of force sensors, transmitters, microprocessors, load driving mechanisms, computers and color inkjet printing systems. It has a wide and accurate loading speed and force range, high precision and sensitivity in measuring and controlling load and displacement, and can also perform automatic control tests with constant load or constant displacement. Floor-standing type. The design and coating of the model fully consider modern industrial design and ergonomic principles.

Main features

Using imported photoelectric encoders for displacement measurement, the controller adopts an embedded single-chip microcomputer structure, has built-in powerful measurement and control software, integrates measurement, control, calculation, and storage functions. It has the functions of automatically calculating stress, elongation rate (requires an additional extensometer), tensile strength, and elastic modulus, automatic statistics of results; automatically records the force values or elongation amounts at the maximum point, fracture point, and designated points; using a computer to display the test process and test curves dynamically, and perform data processing. After the test, the graphic processing module can magnify the curves for data re-analysis and editing, and can print reports. The product performance reaches international advanced levels.

The professional version testing software of the tensile machine can realize control modes such as constant speed, constant displacement, constant load (with adjustable holding time), repeated tension and compression life, etc., plus multi-step control modes to meet different testing requirements.

Machine Accessories and Configuration Details

1. Mainframe of the testing machine                                     1 set

1.1 Delta servo motor                                              1 set

1.2 American Koptek high-precision load sensor                        1 piece

1.3 Reducer system                                                  1 set

1.4 Taiwan TBI precision screw rod                                    1 set

2. Professional testing software based on Windows XP operating system    1 set

3. Haier brand computer (optional)                                    1 unit

4. Color inkjet printer (optional)                                  1 unit

5. Tensile fixture                                                                 1 set

6. Random tools (providing special tools for installation, maintenance and operation)    1 set

7. Technical materials (user manual, warranty card, certificate of conformity)          1 set

LLONROY Universal Material Testing Machine UTM Material Tensile Compression Testing Equipment Universal Tensile Strength Tester

Technical Specification
