ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester

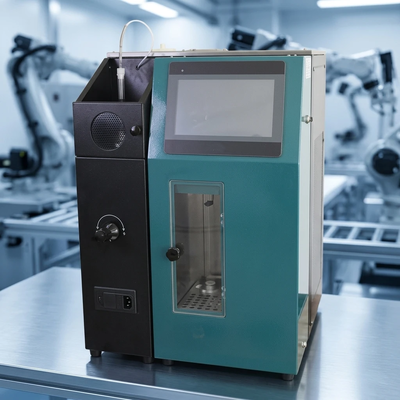

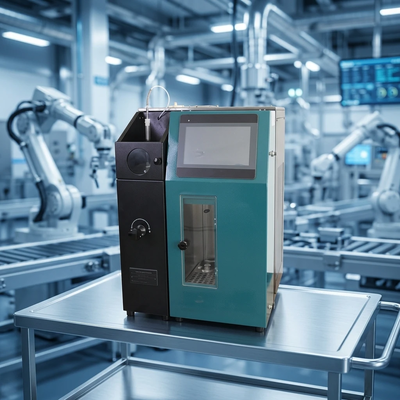

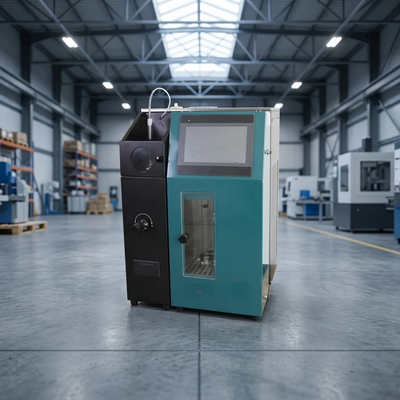

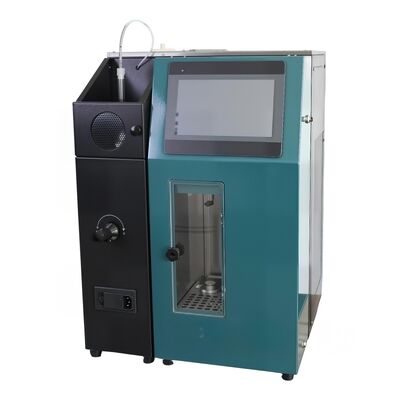

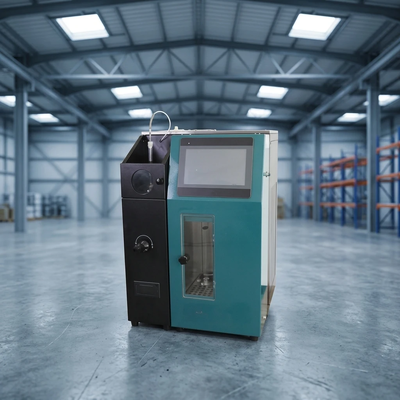

Large Image : ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester

Description

Type:	Fully Automatic Distillation Tester	Accuracy Class:	High Accuracy
Accuracy:	/	Customized Support:	OEM, ODM, OBM
Power:	/	Protection Class:	/
Voltage:	220 V, Other	Warranty:	1 Year
Highlight:	ASTM D86 automatic distillation tester , ISO 3405 petroleum distillation tester , lab atmospheric distillation test machine

Products Description

ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester

Instrument Overview The fully automatic distillation tester is designed and manufactured in accordance with national and international standards, including GB/T 6536 ("Standard Test Method for Distillation of Petroleum Products at Atmospheric Pressure"), ASTM D86, and ISO 3405. It is suitable for determining the distillation characteristics of natural gasoline (stabilized light hydrocarbons), automotive gasoline, aviation gasoline, jet fuel, special boiling-point solvents, naphtha, petroleum solvents, kerosene, diesel, gas oil, distillate fuel oils, and similar petroleum products. ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester Applicable Standards GB/T 6536, ASTM D86, ISO 3405 ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester Performance Features Automated control of the testing process; testing begins with a single-key operation after parameters are set. The entire process—including condenser bath cooling, distillation flask heating, Initial Boiling Point (IBP) detection, recovery volume level tracking, Final Boiling Point (FBP) detection, real-time distillation temperature recording, and the correction, calculation, storage, and printing of results—is performed automatically. The instrument stops automatically upon test completion. Equipped with a 10-inch high-definition color touchscreen LCD and a Chinese-language user interface for simple, intuitive operation. Features a built-in atmospheric pressure sensor for automatic pressure correction, ensuring test results remain unaffected by atmospheric pressure fluctuations. Heating power is automatically adjusted during the test. The liquid level tracker automatically returns to its initial position after the test concludes. Compressor-based refrigeration is used for the condenser tube cooling bath and the recovery chamber. Equipped with a flame detection system and an automatic fire-extinguishing function. Includes a function to input recovery sample volume compensation; displays and prints temperature values corresponding to recovery percentages in real-time. ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester

ASTM D86 ISO 3405 Fully Automatic Distillation Tester Automatic Petroleum Distillation Test Lab Atmospheric Distillation Tester

Specification

Technical Specifications

Power supply	AC 220V ±10%, 50Hz
Total power consumption	2000W
Temperature sensing element	Class A Pt100 platinum resistance temperature sensor
Temperature measurement range	0–400°C; Resolution: 0.1°C
Number of test samples	Single channel; Condenser: Single tube
Cooling bath temperature (compressor cooling)	0°C to +60°C; Measurement accuracy: 0.1°C
Display	10-inch color touchscreen LCD
Initial Boiling Point (IBP) detection method	10mm fiber-optic sensor
Liquid level tracking system	U-shaped slot fiber-optic through-beam detection for tracking liquid level changes
Distillation rate	4–5 mL/min (automatic adjustment)
Volume measurement range	0–100 mL; Resolution: 0.1 mL
Printing method	Thermal printer
Fire extinguishing method	Automatic nitrogen fire suppression
Dimensions	510 × 560 × 750 mm; Weight: 65 kg
Operating environment	Inside a fume hood
