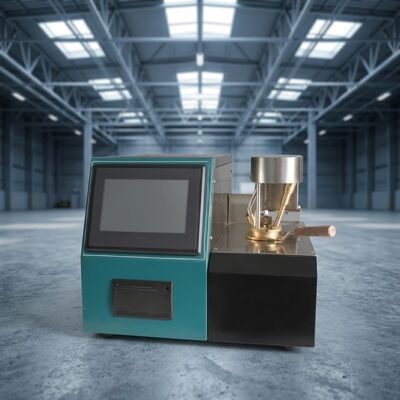

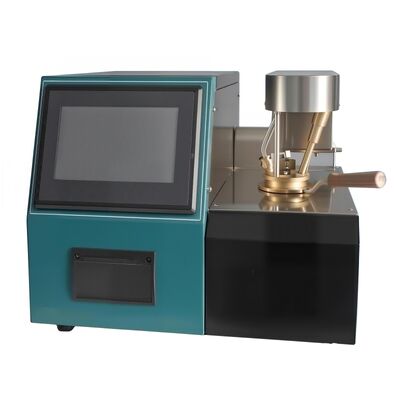

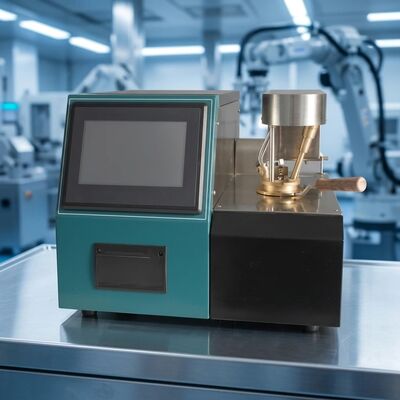

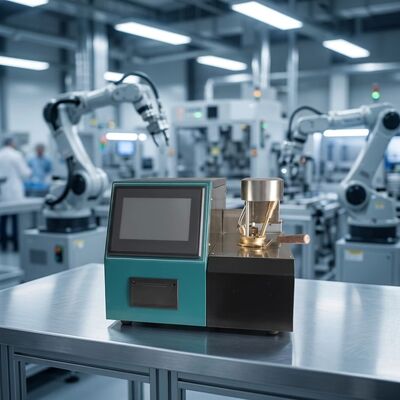

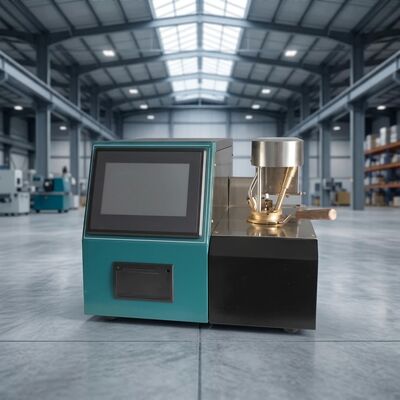

ASTM D56 Automatic Closed-Cup Flash Point Tester (Tag Closed-Cup Method) Fully Automatic Closed Cup Flash Point Analyzer

Large Image : ASTM D56 Automatic Closed-Cup Flash Point Tester (Tag Closed-Cup Method) Fully Automatic Closed Cup Flash Point Analyzer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ASTM D56 Automatic Closed-Cup Flash Point Tester (Tag Closed-Cup Method) Fully Automatic Closed Cup Flash Point Analyzer

Description

Type:	Automatic Closed-Cup Flash Point Tester	Accuracy Class:	High Accuracy
Accuracy:	/	Customized Support:	OEM, ODM, OBM
Power:	/	Protection Class:	/
Voltage:	220 V, Other	Warranty:	1 Year
Highlight:	ASTM D56 automatic flash point tester , Tag closed-cup flash point analyzer , fully automatic closed-cup tester

Products Description

ASTM D56 Automatic Closed-Cup Flash Point Tester (Tag Closed-Cup Method) Fully Automatic Closed Cup Flash Point Analyzer

Product Overview The Automatic Closed-Cup Flash Point Tester (Tag Closed-Cup Method) is designed and manufactured in accordance with the national standard GB/T 21929 ("Test Method for Flash Point by Tag Closed-Cup Tester") and the ASTM D56 standard test method. It is suitable for the automatic determination of the flash point of liquids with a viscosity of less than 5.5 cSt at 40°C (or less than 9.5 cSt at 25°C) and a flash point below 93°C. ASTM D56 Automatic Closed-Cup Flash Point Tester (Tag Closed-Cup Method) Fully Automatic Closed Cup Flash Point Analyzer Performance Features The instrument features a 7-inch high-definition, high-resolution LCD touchscreen display and touchscreen controls. It offers a user-friendly interface (supporting both English and Chinese), with fully automated control throughout the testing process, making it intuitive and easy to operate. The instrument performs fully automated functions, including automatic lifting of the test arm, automatic heating/cooling control, automatic ignition, automatic flash point detection, automatic saving and printing of results, and automatic air cooling upon test completion. It utilizes electronic silicon-carbide rod ignition technology (electronic flame), eliminating the need for an external gas supply; this ensures energy efficiency, environmental friendliness, and laboratory safety. High-precision Class A Pt100 temperature sensors are used for temperature monitoring. Ignition and flash point detection begin automatically once the sample reaches the preset temperature. A high-precision flash point detector ensures rapid response and high sensitivity. A digital module automatically monitors atmospheric pressure, and test results are automatically corrected for atmospheric pressure. The instrument is equipped with a fault self-diagnosis and alert system; it can store multiple test results. It includes functions for setting the time, date, and day of the week. It features a heating limit function; the instrument automatically stops the test and issues an alert if the temperature limit is reached. Upon test completion, the test ID and results are automatically saved and printed. ASTM D56 Automatic Closed-Cup Flash Point Tester (Tag Closed-Cup Method) Fully Automatic Closed Cup Flash Point Analyzer Applicable Standards GB/T 21929 (Tag Closed Cup Flash Point Test Method), ASTM D56 ASTM D56 Automatic Closed-Cup Flash Point Tester (Tag Closed-Cup Method) Fully Automatic Closed Cup Flash Point Analyzer

ASTM D56 Automatic Closed-Cup Flash Point Tester (Tag Closed-Cup Method) Fully Automatic Closed Cup Flash Point Analyzer

Specification

Key Technical Parameters and Specifications

Parameter Item	Specification
Operating Voltage	AC 220V ±10%, 50Hz
Flash Point Test Range	5–93°C (instrument can cool the sample to -5°C)
Heating Rate	Flash point <60°C (0.9–1.1°C/min); Flash point ≥60°C (2.7–3.3°C/min)
Detection Interval	Flash point <60°C (0.5°C); Flash point ≥60°C (1°C)
Maximum Power Consumption	≤300W (components do not operate simultaneously)
Power Distribution	Heating Power: 150W; Cooling Power: 160W; Igniter Power: 120W
User Interface	7-inch high-resolution LCD touchscreen (800×480 resolution)
Temperature Display Precision	0.1°C
Barometric Pressure Detection	Digital pressure sensor chip; error ±0.3 kPa @25°C
Cooling Component	Semiconductor cooling module; includes water flow switch protection
Cooling/Heat Exchange Method	Circulating water cooling; submersible pump included
Printer	Embedded thermal micro-printer
History Records	Stores up to 256 sets of historical results
Hardware Self-Test	Includes tests for lid opening/closing, ignition mechanism, stirring, igniter, heating, and cooling functions
