ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test

Large Image : ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test

Description

Type:	Measurement Crude Oil Water Content Tester	Accuracy Class:	High Accuracy
Accuracy:	/	Customized Support:	OEM, ODM, OBM
Power:	/	Protection Class:	/
Voltage:	220 V, Other	Warranty:	1 Year
Highlight:	ASTM D4006 crude oil water tester , distillation method water content tester , lab petroleum water test machine

Products Description

ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test

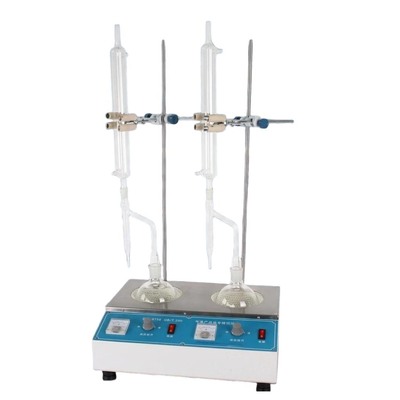

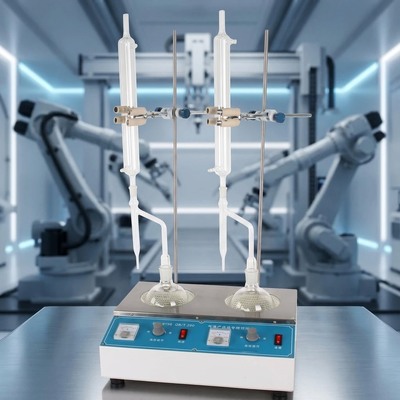

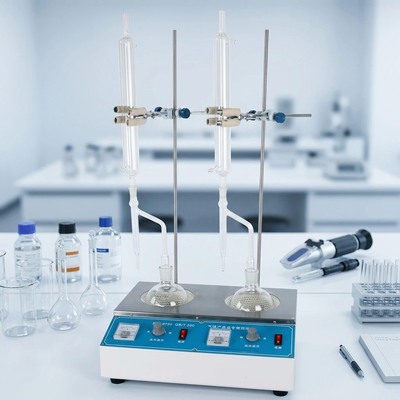

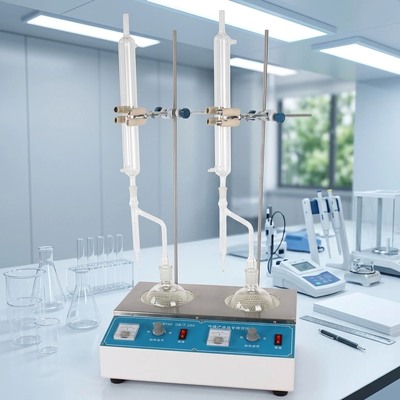

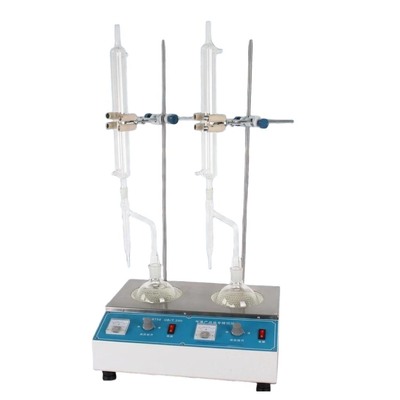

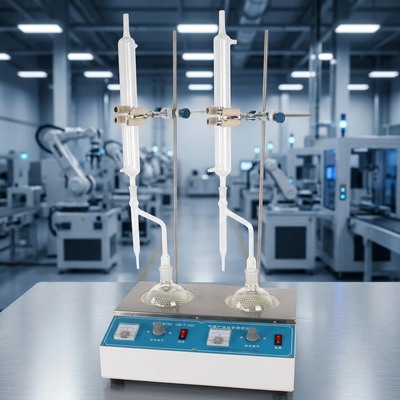

Instrument Overview This instrument is designed and manufactured specifically for determining the water content of crude oil in accordance with the national standard GB/T 8929-2006, "Crude Oil—Determination of Water Content—Distillation Method." It is suitable for measuring water content in crude oil using the distillation technique. ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test Principle Under reflux conditions, the sample is mixed with a water-immiscible solvent and heated; water within the sample is distilled off simultaneously. The condensed solvent and water separate continuously in the receiver. The water settles in the graduated tube of the receiver, while the solvent returns to the distillation flask. ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test Applicable Standards GB/T 8929-2006 "Crude Oil—Determination of Water Content—Distillation Method"; ASTM D4006 ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test Performance Features The instrument consists primarily of an electrical control unit and testing glassware (distillation flask, condenser, receiver, and drying tube). It features a dual-unit configuration with a clean, aesthetic design; it is highly practical and easy to operate. Each testing unit is regulated by an independent potentiometer, and a voltmeter displays the heating voltage. The heating system utilizes a fiberglass-woven heating mantle (flame-free electric heating) with sensitive temperature control. ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test

ASTM D4006 High-precision Measurement Crude Oil Water Content Tester (Distillation Method) Lab Petroleum Water Content Test

Specification

Technical Parameters

Technical Parameter Item	Specification
Power Supply	AC 220V ±10%, 50Hz
Voltage Regulation Mode	Stepless regulation via solid-state regulator
Heating Power	0–400W continuously adjustable (2 units)
Distillation Flask	1000mL capacity (2 units)
Receiver	5mL capacity (2 units); minimum scale division: 0.05mL
Condenser	Straight type, 400mm length (2 units)
Drying Tube	Approx. 125mm length (2 units)
Overall Dimensions	520 × 290 × 700 mm
Unit Weight	Approx. 8 kg
