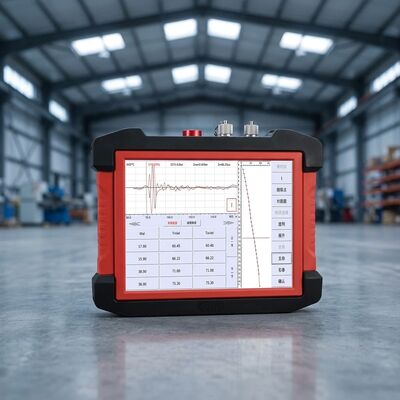

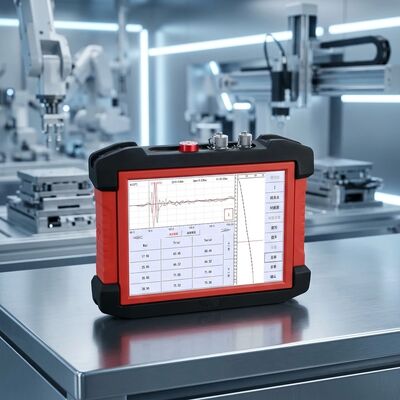

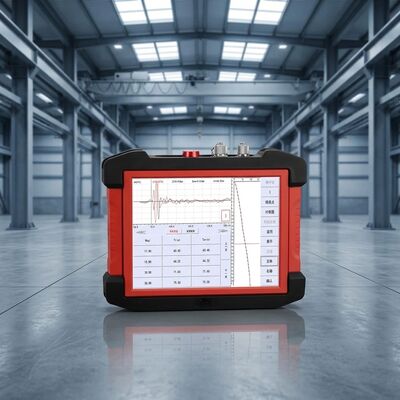

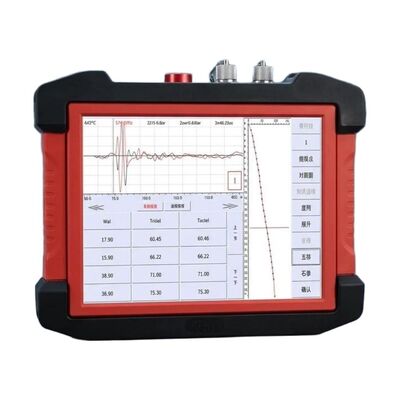

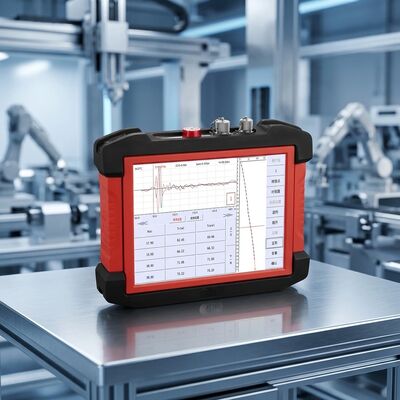

Portable Shear Wave Velocity Tester Automatic Wave Velocity Testing Instrument Earthquake Engineering Site Survey Instrument

Large Image : Portable Shear Wave Velocity Tester Automatic Wave Velocity Testing Instrument Earthquake Engineering Site Survey Instrument

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Portable Shear Wave Velocity Tester Automatic Wave Velocity Testing Instrument Earthquake Engineering Site Survey Instrument

Description

Type:	Wave Velocity Tester	Accuracy Class:	High Accuracy
Accuracy:	/	Customized Support:	OEM, ODM, OBM
Power:	/	Protection Class:	/
Voltage:	220 V, Other	Warranty:	1 Year
Highlight:	Portable shear wave velocity tester , Automatic wave velocity testing instrument , Earthquake engineering site survey instrument

Products Description

Portable Shear Wave Velocity Tester Automatic Wave Velocity Testing Instrument Earthquake Engineering Site Survey Instrument

Product Applications Shear wave velocity testing for site investigation Predominant period testing of ground micro-tremors for site investigation Portable Shear Wave Velocity Tester Automatic Wave Velocity Testing Instrument Earthquake Engineering Site Survey Instrument Compliant Standards Code for Seismic Design of Buildings (GB 50011-2010) Code for Geotechnical Investigation (GB 50021-2001) Code for Testing of Dynamic Characteristics of Foundation (GB/T 50269-2015) Portable Shear Wave Velocity Tester Automatic Wave Velocity Testing Instrument Earthquake Engineering Site Survey Instrument Technical Features 1. High signal-to-noise ratio circuit design ensures easy acquisition of shear wave signals; 2. Large 12.1-inch display provides clear on-site signal visualization; 3. Touchscreen operation on the main unit offers a user-friendly interface and simple operation; 4. Equipped with a lever-type three-component downhole geophone, ensuring excellent borehole wall coupling and high signal quality; 5. Extended sampling duration supports long-term ground micro-tremor testing. Portable Shear Wave Velocity Tester Automatic Wave Velocity Testing Instrument Earthquake Engineering Site Survey Instrument

Portable Shear Wave Velocity Tester Automatic Wave Velocity Testing Instrument Earthquake Engineering Site Survey Instrument

Specification

Performance Specifications

Control Method	Low-power embedded system; CPU clock speed: 1GHz; Memory: 512MB
Display Mode	12.1-inch true-color LCD screen
Operation Method	Touchscreen operation
Storage Mode	16GB solid-state storage
Operating System	Linux
Sampling Interval	5 ~ 20,000 μs
Record Length	Adjustable in 5 steps: 0.5k, 1k, 2k, 4k, 8k
Magnification	Max. 100,000x
A/D Conversion Precision	Multi-core 16-bit A/D
Number of Channels	1 external trigger channel; 3 sampling channels
Bandwidth	0.1 Hz ~ 4000 Hz
Trigger Mode	Channel trigger / External trigger
Power Supply	AC power; built-in lithium battery (≥6 hours)
Operating Temperature	-20 ~ +55°C
Dimensions	340 × 270 × 70 mm
Weight	3.2 kg

Portable Shear Wave Velocity Tester Automatic Wave Velocity Testing Instrument Earthquake Engineering Site Survey Instrument

Standard Configuration

No.	Name	Quantity	Model Specifications
1	Wave Velocity Tester	1	GA-BS10
2	Pointed-tip velocity probe and connecting cable (4-pin plug)	1	Pdi-15m
3	Lever-type downhole 3-component geophone (including counterweight)	1	50mm diameter, yellow zinc-plated Q235 steel housing
4	Cable for lever-type downhole 3-component geophone (including cable reel)	1	60 meters
5	Shear wave (microtremor) 3-in-1 connecting cable	1	SW3.0
6	Wrench	1
7	Main unit communication cable (6-pin plug)	1	3 meters
8	Power charger	1	8.4V 5A
9	Tool kit	1	Includes USB drive, stylus, tape measure, and battery installation wrench
10	Yellow trolley case	1	Model Specifications
