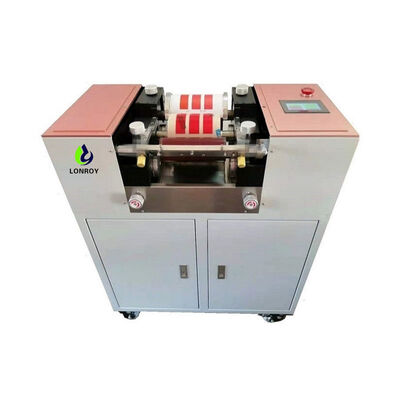

LR-N004 Flexo Ink Proofer With LED UV Drying Function UV Curing Flexo Proofing Machine Online Flexographic Ink Color Proofer

Large Image : LR-N004 Flexo Ink Proofer With LED UV Drying Function UV Curing Flexo Proofing Machine Online Flexographic Ink Color Proofer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

LR-N004 Flexo Ink Proofer With LED UV Drying Function UV Curing Flexo Proofing Machine Online Flexographic Ink Color Proofer

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Auto Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220 V
Warranty:	1 Year	Net Weight Of Instrument:	130KG
Overall Dimensions (LWH):	400800950mm
Highlight:	LED UV drying flexo ink proofer , UV curing flexographic proofing machine , online flexo ink color proofer

LR-N004 Flexo Ink Proofer With LED UV Drying Function UV Curing Flexo Proofing Machine Online Flexographic Ink Color Proofer

Introduction

Applicable objects: monochrome proofing (such as color matching, testing, etc.)

Unique features of the instrument

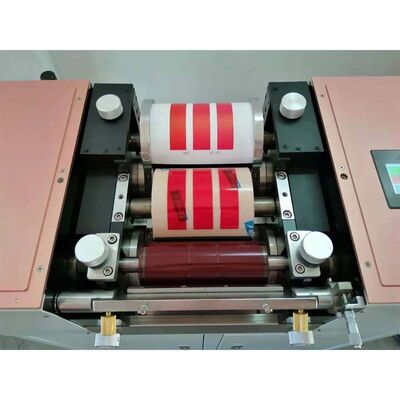

1. After the ceramic roller rotates the ink evenly, the printing material and the printing plate cylinder start and rotate synchronously for two weeks to complete the proofing work. The ceramic roller and the printing material cylinder operate synchronously with the printing plate cylinder to ensure the proofing quality.

2. Scraper, ceramic roller, plate drum, printing drum four structures can be individually adjusted around the pressure, flexible adjustment;

3. The screen roller and scraper are easy to disassemble and install

4. Large drum structure, printing material installation, plate installation and cleaning plate is simple and convenient.

LR-N004 Flexo Ink Proofer With LED UV Drying Function UV Curing Flexo Proofing Machine Online Flexographic Ink Color Proofer

Technical Specification

Input Power	220V, 50/60Hz
Rated Power	400W (UV-LED: 500W, Mercury UV Light: 2000W)
Ink Type	Dropper Ink
Proofing Material Thickness	0.01–2mm (Bendable Material)
Proofing Material Size	170×210mm
Printing Area	120×148mm
Plate Area	150×160mm
Plate Thickness	Dupont Flexible Plate: 1.14mm, Adhesive: 0.38mm
Plate Roller & Screen Roller Pressure	Adjustable within 2mm range with pressure scale indication
Plate Roller & Press Roller Pressure	Adjustable within 2mm range with pressure scale indication
Adjustable Printing Speed	0–80 m/min
Ceramic Roller Specification	(USA Standard) 70×210mm
Ceramic Roller Line Count	Standard 600LPI (Customizable: 70–1200LPI), BCM: 1.6–5.3
Applicable Inks	Flexographic Water-based Ink, UV Ink, Lithographic Ink, Letterpress Ink
Applicable Proofing Materials	Paper, Plastic Film, Non-woven Fabric, Napkin, Gold & Silver Card Paper, etc.
Overall Dimensions (L×W×H)	400×800×950mm
Net Weight of Instrument	130KG

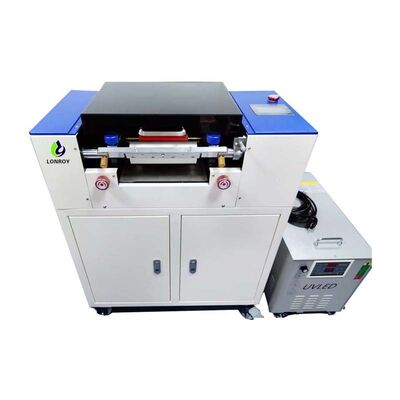

Optional Accessory	UV Curing & Drying Unit
Proofing Functions	Coating, Solid Color Printing, Dot Pattern Proofing
Blade Pressure System	Pneumatic control, bidirectional adjustable pressure balance; scraper constant pressure design ensures stable printing color repeatability and uniform coloring standard
